Selecting the right hose clamp size is essential for creating a secure, leak-free seal on hoses and tubing. Whether you’re a DIY car enthusiast replacing coolant hose clamps or a plumber fixing a leaky line, using the wrong size clamp can lead to leaks, hose damage, or even safety hazards. In this guide, we’ll focus on the popular worm gear hose clamps (the common screw-type worm clamps used in automotive and plumbing) and how to measure and choose the correct size by understanding three key factors: the hose’s Outside Diameter (OD), the clamp’s size range, and the clamp’s band width. By following the steps and tips below, you can ensure you select a stainless steel hose clamp that actually fits your application – from small fuel lines to large 2 inch hose clamps for heavy-duty pipes – preventing pesky leaks and securing your system.
Before measuring for a hose clamp, gather a few basic tools and prepare your setup. Proper tools & preparation will help you get an accurate measurement for the clamp size you need:
Measuring Tools: A pair of vernier calipers is the best choice for precisely measuring a hose’s outside diameter. Calipers (digital or analog) provide quick, accurate OD readings. If calipers aren’t available, use a flexible measuring tape (like a tailor’s tape) to measure around the hose, or even a non-stretch string with a ruler. These will let you measure the hose’s circumference, which you can later convert to diameter. Avoid rigid rulers or tapes directly on the hose unless using the string method, as hoses are round and flexible.
Install the Hose on the Fitting: Always measure the hose in the condition it will be clamped. Push the hose fully onto the pipe, barb, or fitting where it will be secured, and ensure it’s seated properly. This is critical because hoses expand slightly when stretched over a fitting, increasing their OD. For example, a hose with a 2″ inner diameter will have a larger outer diameter once on a fitting – measuring the hose off the fitting could undersize your clamp selection.
Identify Clamp Position: Note where the clamp will sit on the hose once installed. Typically, this is just behind any flange or barb on the fitting, over the portion of the hose covering the fitting’s sealing surface. Marking this spot ensures you measure at the correct location.
Safety & Access Prep: If you’re working on an existing setup (like a car’s radiator hose or a household plumbing line), make sure the system is depressurized and drained if necessary (e.g. let the engine cool, turn off water supply). This isn’t directly about measurement, but it’s good practice for DIYers and plumbers before removing or adjusting hoses. Also, ensure you have clearance to wrap a tape or calipers around the hose. In tight spaces, you might need to disconnect the hose to measure it accurately.
Have the Right Clamp on Hand: It’s wise to have an assortment of clamp sizes available so you can test-fit if needed. For instance, a kit like the Ouru Hose Clamp Assortment provides multiple stainless steel worm gear clamps in various sizes (covering common ranges like 1/2″ up to 2″ and beyond) to accommodate different hoses. This way, once you measure your hose, you can quickly find a matching clamp size. (Product Reference: Ouru Hose Clamps Kit).
With these tools and preparations, you’re ready to measure for the correct worm drive clamp size.
Accurate measurement is the golden rule for selecting a hose clamp. Follow these step-by-step instructions to determine the proper clamp diameter for your hose:
Install the Hose on its Pipe/Barb: As mentioned, ensure the hose is pushed fully onto the mating pipe or fitting. This replicates the exact conditions under which the clamp will operate. The hose’s outer diameter can increase slightly upon installation, especially for snug fits. Never measure a loose hose’s ID or OD alone and assume that’s the clamp size – always measure with the hose in place on the component it will clamp to.
Mark the Clamp Position: Identify where the clamp should sit. Typically, this is just behind any raised barb or bead on the fitting. For example, in automotive hoses, you slide the clamp a bit back from the hose end, right over the sealing area behind the raised lip of a radiator neck or fuel pipe. Marking this position ensures you measure in the correct spot so the worm gear clamp will tighten exactly where needed for a leak-free seal.
Measure the Outside Diameter (OD): Use your chosen tool to measure the hose’s OD at the marked position.
Using Calipers: Gently close the caliper jaws around the hose. Do not compress the hose – you want the true outside diameter under normal conditions. Read the diameter directly from the caliper (in inches or millimeters, as needed).
Using a Flexible Tape: Wrap a flexible tape measure snugly around the hose. Make sure it’s flat and not twisted. Reading the tape will give you the circumference of the hose. For example, if the tape reads 100 mm around the hose, you have the circumference.
Using a String (if no tape available): Wrap a non-stretch string around the hose, mark or cut it where it meets around the full circumference, then lay it against a ruler to measure the length of the string. This length is the hose’s circumference.
Calculate Diameter from Circumference (if needed): If you measured the circumference (with tape or string), convert it to diameter using the formula Diameter = Circumference / π (3.1416). For instance, if the circumference is 120 mm, the diameter = 120 mm / 3.1416 ≈ 38.2 mm (approximately 1.5 inches). Use the same units for consistency – most hose clamps are sized in either inches or millimeters. It’s often useful to note both.
Note the Exact Measurement: Write down the measured OD (or keep it in mind) with its unit. This number is the target around which you’ll select your clamp. As a real-world example, a hose labeled “3/4″ (0.75″) ID might measure around 1″ OD when on a fitting. That means you’ll likely need a clamp that can tighten around 1″ (and a bit more for safety).
Optional – Using an Existing Clamp: If you are replacing an old worm gear hose clamp that fit well, you can use it as a reference. Many clamps have size markings stamped on the band (often an SAE number or a range in inches/mm). For example, you might see “SAE 20” or “13/16–1½” on the old clamp, which indicates its clamping range. If the old clamp wasn’t leaking and the hose was secure, you could choose a new clamp of the same size. However, be cautious: clamps can deform or stretch over time, and different manufacturers’ #20 clamps might have slight range differences. When in doubt, measure the hose OD directly (Method 1 above) – that’s the fool-proof way to find the right clamp.
Why not measure the hose’s ID? The inner diameter (ID) of the hose (often printed on the hose) is not what the clamp grips. Clamps go around the outside. Plus, the hose’s OD grows slightly when the hose is installed on a fitting. For these reasons, measuring just the ID or relying on the hose’s labeled size can be very misleading. Always use the OD you measured as the basis for clamp selection.
Once you have the hose’s OD measurement, the next step is to interpret hose clamp specifications to pick the correct clamp. Here’s how to make sense of clamp sizing and ensure a proper fit:

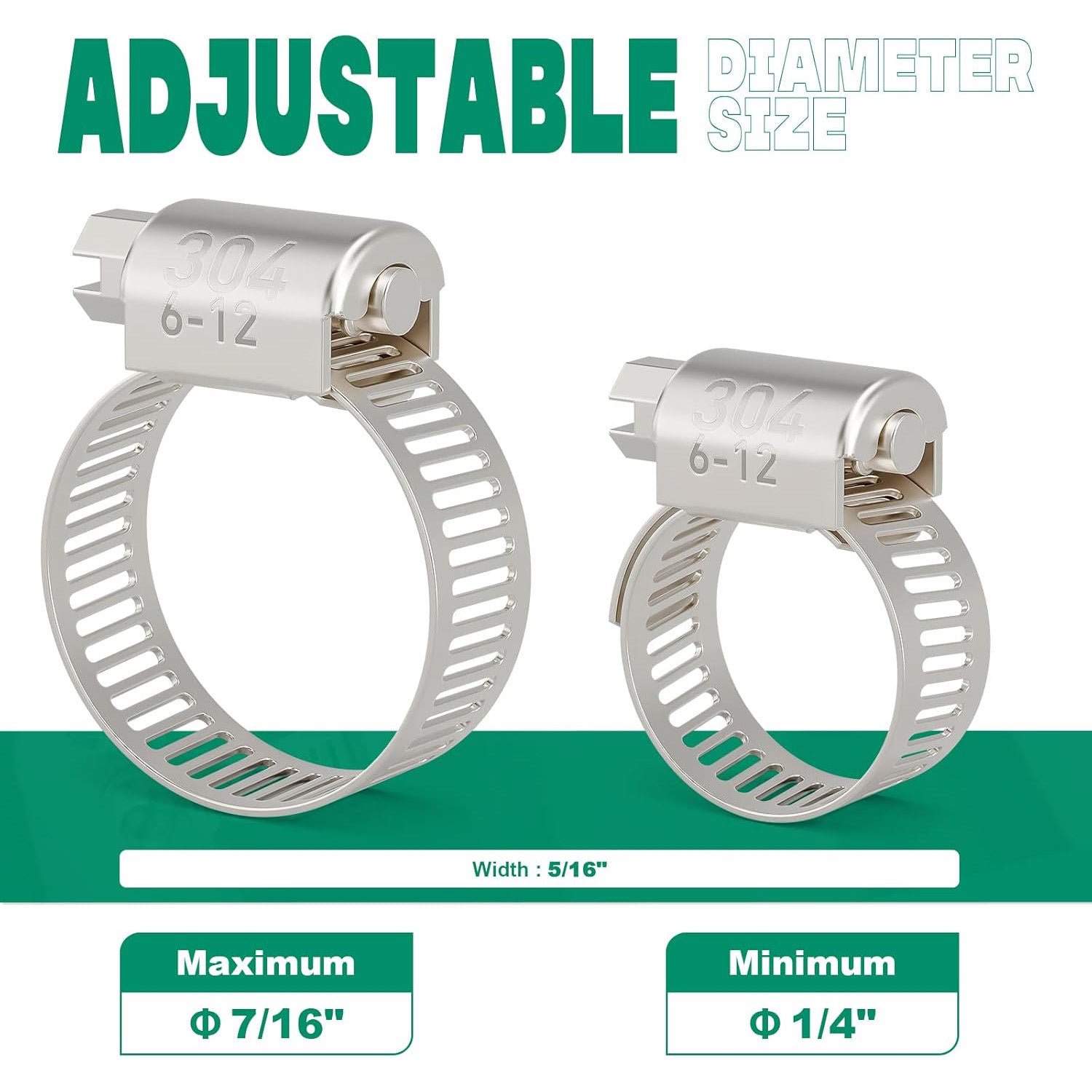

Clamping Diameter Range: Most worm gear clamps (worm drive clamps) are sold by a size range, indicating the minimum and maximum diameters the clamp can securely tighten to. For example, a common clamp might be listed as “fits 1/2″ – 1¼″ (13–32 mm)”. This means its band can be tightened down to as small as 1/2″ diameter and loosened (expanded) to as large as 1¼″ diameter. Your hose’s measured OD should fall comfortably within this range, ideally near the middle. If your hose OD is 1″ (25.4 mm), a clamp with range 3/4″–1¼″ is a great choice, since 1″ is roughly mid-range. On the other hand, a clamp labeled 1″–1½″ is just barely starting at 1″, meaning your 1″ OD is at the extreme minimum of that clamp’s capacity – not ideal. Conversely, a 1/2″–1″ clamp technically covers 1″, but your hose would be at the max limit, leaving no margin for error. Avoid using clamps at the extreme ends of their range: if your measured OD matches the clamp’s maximum, the clamp may not tighten fully or could deform under tension; if your OD is at the clamp’s minimum, the clamp might not be able to shrink enough to seal tightly. As a rule of thumb, choose a clamp that gives you some buffer on both sides of the OD.
Provide Some Tightening Margin: It’s recommended to have at least a small margin (e.g. ~1/8 inch or a few millimeters) between your hose OD and the clamp’s maximum capacity, rather than exactly maxing it out. For instance, if your hose is 2.5″ OD, a clamp that goes up to 2.75″ or 3″ max is better than one that tops out at 2.5″ exactly. This margin ensures the clamp can be properly tightened (the screw has some travel left and the clamp isn’t “stretched” to its limit). Similarly, don’t choose a huge oversize clamp thinking “bigger is better” – if a clamp is much larger than the hose, you’ll have a long tail of band sticking out and the clamp might form a “D” shape when fully tightened down to a small diameter, which can prevent a uniform seal. Using a clamp size closely matched to your needs is key for a secure, round compression on the hose.
Reading Clamp Labels (SAE # Sizes): In the US, many worm clamps use an SAE size number (Society of Automotive Engineers standard) on the clamp or in catalogs. These numbers correspond to a standard size range. For example, SAE #8 typically covers roughly 7/16″ to 1″ (about 11–25 mm), #12 goes around 1/2″ to 1¼″, #40 handles 2″ to 3″, and so on. Higher numbers generally mean larger clamps (though the numbering isn’t simply the diameter in millimeters or anything, it’s a designation per SAE J1508). If your clamp is listed by an SAE number, you can consult a hose clamp size chart to find the actual range. The main point is, don’t assume a “#10” clamp fits a 10mm hose or such – always check the range. Most product listings will either give the range or the SAE number (sometimes both). If given just a number, look it up on a standard chart to ensure your hose’s OD sits well within its min/max.
Band Width Considerations: The “band width” of a clamp refers to how wide the metal band is, usually measured in inches or mm. Common worm gear hose clamps come in a few standard band widths: Miniature clamps often have a ~5/16″ (8 mm) wide band; standard clamps have a 1/2″ (12.7 mm) wide band; and full-size or heavy-duty clamps use a wider 9/16″ (14 mm) band. Why does this matter? A wider band provides a larger surface area pressing on the hose, which can be beneficial for sealing and for not cutting into softer hoses. For soft or silicone hoses, a narrow band clamp (especially with perforations for the screw) can bite into the hose material. In fact, standard worm-drive clamps are not recommended for very soft silicone tubing unless they have an inner liner, because the slots and edges can cut the hose. In such cases, you might opt for a wider band stainless hose clamp or a specialty lined clamp that protects the hose surface. On the other hand, a very wide band might be too large for small diameter hoses or might not fit in tight spaces. Generally, use miniature clamps for small-diameter (< 1/2″ OD) tubes (fuel lines, vacuum hoses, etc.), standard 1/2″ band clamps for most automotive and plumbing tasks (coolant hoses, garden hoses, etc.), and heavy-duty 9/16″ band clamps for high-pressure or large diameter hoses (e.g. a 3 inch hose clamp on a large engine intake or an 8 inch hose clamp on an industrial hose). Always match the clamp’s robustness and width to the application’s demands – for high vibration or pressure, a wider band or even dual clamps might be appropriate.
Material and Quality: Nearly all quality worm gear clamps today are made of stainless steel (at least the band, often the screw as well). Standard hose clamps stainless steel (often 201/301 or 304 stainless) are suitable for most uses, providing corrosion resistance. If you’re working in marine environments or on coolant systems where extra corrosion resistance is needed, look for marine-grade 316 stainless steel clamps, which offer superior rust resistance. The Ouru clamps, for example, are made of premium stainless steel that resists salt, water, and heat, ensuring longevity. Also consider the clamp’s construction – rolled edges (to prevent hose damage), and whether it’s a constant-tension (spring) type or standard worm drive. But regardless of type, the sizing principle remains: measure the OD and pick the appropriate range.
Different Clamp Types (and how sizing works): We’ve focused on the ubiquitous worm-drive worm gear clamps, but if you deal with other types, keep these notes in mind:
Spring Clamps (Constant Tension Clamps): These are the springy clips often found on OEM automotive coolant hoses. They are sized to a specific nominal diameter. You can’t adjust them with a screw; instead, you choose a spring clamp that matches the hose OD. The good news is they’re somewhat forgiving (they expand/contract with temperature). Still, you should verify the hose’s OD to select the correct spring clamp size (manufacturers usually specify the range of OD each spring clamp is meant for).
T-Bolt Clamps: These heavy-duty clamps (common on turbocharger plumbing, heavy trucks, etc.) also are chosen by diameter range. The measuring process is the same – get the hose OD and choose a T-bolt clamp where that OD sits in the middle of its range. T-bolt clamps have a wider band and can apply more uniform pressure, but if sized wrong they can’t compensate as much as a worm clamp, so measure carefully.
Ear Clamps (O-Clamps): These are crimp-style rings pinched with special pliers (e.g., for pinch clamp pliers usage). They are one-time use. When selecting an ear clamp, you still use the hose OD, but you’ll pick a clamp that in its crimped state will achieve the necessary diameter. These often list a single size (the diameter when fully crimped). Again, measuring the hose OD tells you that size.
Pipe/Tube Clamps: Sometimes people refer to pipe support clamps or tubing clamps in plumbing – those are different (for holding pipes to walls, etc.). Here we’re concerned with hose/pipe connection clamps that seal a hose on a nipple. Just clarifying terminology: a “1 inch pipe clamp” in a hardware store might mean a U-bolt or hangar for a rigid pipe, whereas a “1 inch hose clamp” means a worm clamp that fits around a 1″ (approx OD) hose. Always be sure which you need.
In summary, understanding the clamp’s stated size (range) and characteristics (band width, material, type) will ensure you get a clamp that both fits and suits your application. For example, a worm gear hose clamp stainless steel of SAE size 36 (range ~1.75″–2.75″) with 1/2″ band might be perfect for a radiator hose, but if that hose is silicone, you might choose a lined version or a T-bolt instead. If you measured a 3″ hose OD, you might opt for an SAE 48 (roughly 2.5″–3.5″ range) worm drive clamp, since 3″ lies nicely in the middle of that range. For a fuel line of 3/8″ OD, a tiny mini hose clamp (SAE #4 or #6) with a narrow band would be appropriate. By matching OD, range, and band width, you can address any scenario – from brake line clamps on a small tubing, up to heavy-duty hose clamps on a big rig’s coolant hose.
Measuring and choosing the right hose clamp might seem like a small detail, but it’s fundamental for preventing leaks and ensuring safety in countless applications. Whether you’re a DIY homeowner fixing a garden hose, a car enthusiast upgrading coolant hoses clamps on your engine, or a professional plumber working on piping, the process is the same: measure the hose’s outer diameter (OD) on the fitting, and select a worm clamp whose range comfortably includes that size. Remember to aim for the middle of the clamp’s range for optimal results, and consider the clamp’s band width and material for your specific use (e.g. wide stainless clamps for marine or high-pressure uses). Avoid common mistakes like guessing based on hose size or using an oversized clamp “just in case” – these can lead to poor seals or damaged hoses. By taking a few minutes to get an accurate measurement and understanding clamp specs, you’ll save yourself time and hassle, and ensure a secure, professional-quality connection.
Ouru is dedicated to providing reliable fastening solutions, and we hope this guide helps you in selecting the perfect clamp. Our range of worm gear hose clamps (like the kit linked above) is designed to cover various OD sizes with durable stainless steel construction, so you can tackle projects knowing you have the right hardware on hand. With the right clamp snugly in place, you can trust your hose connection – no leaks, no worries. Happy clamping!
