Before buying a hose clamp (often a worm gear clamp or worm drive clamp), always measure the dryer vent pipe outer diameter (OD) precisely. The golden rule is to base clamp size on the outside of the hose/pipe, not the hose’s listed inner diameter. For a dryer vent, this means measuring around the rigid metal dryer vent pipe or the flexible duct after it’s fitted onto the dryer’s outlet or wall vent. Many people assume a “4-inch dryer vent” uses a 4" clamp, but in reality the actual outside diameter (with duct material) might be slightly over 4″. Use a tape measure to find the circumference of the duct on the connection point, then divide by π (~3.14) to get the diameter if needed. A flexible tailor’s tape or even a piece of string can help wrap around round ducts for measuring. Measuring ensures you get a clamp that isn’t too small to fit or so large it can’t tighten properly – using the wrong size can cause leaks or even hose damage and failures.
Keep the measurement handy when you shop for the clamp. Dryer vents are typically 4″ in diameter (approximately 102 mm), but don’t just grab any “4 inch hose clamp” without checking its actual capacity range. Clamps are usually sold with a minimum and maximum diameter range (e.g. a clamp might be listed as “3″–5″” or in millimeters). Make sure the clamp’s range comfortably covers your measured OD. For example, if your dryer vent OD is 4.1″, a clamp that only opens to 4″ won’t work – you’d need one that goes a bit larger. Conversely, a clamp that’s much bigger than needed could bottom out when tightened, failing to secure the hose. In short, measure first to avoid guesswork. Even if the dryer is labeled with a standard vent size, measuring the actual pipe with the hose in place guarantees you get the right pipe clamp for the job.
Pro Tip: While measuring, also inspect the vent hose condition. If it’s a flexible foil or plastic hose (which many codes no longer allow due to fire risk), consider upgrading to a semi-rigid or rigid metal duct for safety. A smooth, rigid metal pipe of the correct diameter will clamp more securely and collect less lint. But either way, the clamp size needed will hinge on the outside diameter of whatever ducting you use. So measure that OD after the hose is slipped onto the dryer’s outlet or vent stub – the hose often enlarges slightly when fitted over the connection. By measuring the actual outside, you’re ensuring the worm clamp you buy can tighten to that exact size for a leak-free fit.
Once you have the precise OD measurement, it’s time to match it to a clamp’s size range. Worm gear hose clamps (the common band clamps with a screw, also just called hose clamps or worm clamps) are typically labeled by the range of diameters they can secure. You might see sizes given in inches, millimeters, or an SAE number (a standardized size code). For example, a clamp might be labeled SAE #40, #56, #64, etc., which correspond to particular diameter ranges. Don’t worry – you don’t need to memorize these numbers. Just look at the clamp’s packaging or the stamp on the band: many stainless clamps have the min/max diameter or an SAE number etched right on them. Your goal is to pick a clamp whose range places your measured OD roughly in the middle, not at one extreme end.
Why the middle? A clamp works best when it has some adjustability left either way. If your dryer vent’s OD is 4″ (about 102 mm), a clamp that ranges 4″ to 5″ will technically fit, but 4″ is at that clamp’s minimum limit – you’d likely have to tighten it completely to just reach 4″, leaving no room for error. Instead, a clamp that ranges say 3″ to 5″ (or **3.5″ to 4.5″) would be ideal, since 4″ falls comfortably within that span. For instance, common worm clamp sizes around this range include those labeled “3″–4″ (76–102 mm), “3-1/2″–4-1/2″ (roughly 90–114 mm), or “4″–5″ (102–127 mm). Any of those would cover a ~4″ dryer vent, but the one where 4″ is near the middle (not the absolute min or max) will tighten more reliably.
Keep in mind that different manufacturers might have slightly different ranges for the “same” nominal size clamp, so always double-check the actual numbers. If your measurement is just slightly over a common size’s max, size up to the next clamp. It’s usually better to have a little extra capacity than to be at the clamp’s limit. In fact, one dryer owner on a forum was unsure if a “4in” clamp would fit a 4″ hose and opted for a 3″–5″ clamp to be safe, which is a smart move to allow wiggle room. The clamp should be easy to slide over the duct and then tighten down snugly without struggling at the edges of its range.
To give a sense of the variety, worm gear clamps come in a wide array of sizes for different applications – from tiny fuel line clamps to huge duct clamps. Some examples:
Miniature Hose Clamps: e.g. SAE #4 or #6, which might tighten down to as small as 1/4″ or 5/16″ diameter (used for small tubing clamps like on vacuum lines). These essentially cover the 1 inch hose clamp size and below.
Automotive/General Clamps: e.g. #12 (about 1/2″ – 1-1/4″ range) often used on car coolant or fuel hoses, #20 (~13/16″ – 1-3/4″) for slightly larger pipes, etc.
Dryer Vent Sized Clamps: usually in the #40–#64 range. For instance, SAE #56 covers ~3″–4″ (up to 101 mm) and #64 covers ~3.5″–4.5″ (up to 114 mm) – both could work for a 4″ dryer vent, with #64 giving a bit more overhead. #72 (4″–5″) can also work but remember 4″ would be its minimum.
Large Hose Clamps: for ducts or pipes larger than a dryer vent, there are clamps like #88 (5″–6″ range) up to #104 (6″–7″) and beyond. Heavy-duty stainless steel pipe clamps can go even bigger – e.g. some 8 inch hose clamps or 10 inch hose clamps are available for HVAC or industrial use, and there are even 12-inch hose clamps for very large diameter pipes. These often are marketed as heavy-duty stainless steel hose clamps or use T-bolt designs for extra strength.
For a standard home dryer with a 4″ vent, you won’t need those extreme sizes – a normal worm gear hose clamp in the 3″–5″ range (approx 75–125 mm) does the job. Just be sure it’s a quality stainless steel clamp. Dryer vents carry warm, moist air, so you want a clamp that won’t rust. Stainless steel hose clamps (ideally all 300-series stainless band and screw) are recommended for longevity. Avoid plain steel that can corrode, and avoid plastic “clamps” (sometimes found on older or cheap dryer hookups) as they can loosen with heat. Also, while spring hose clamps (the kind you pinch to open) are common in automotive cooling systems, they’re not typically used for dryer vents – stick with an adjustable worm-drive clamp for this application, as it gives a strong, adjustable hold on the thin dryer duct material.

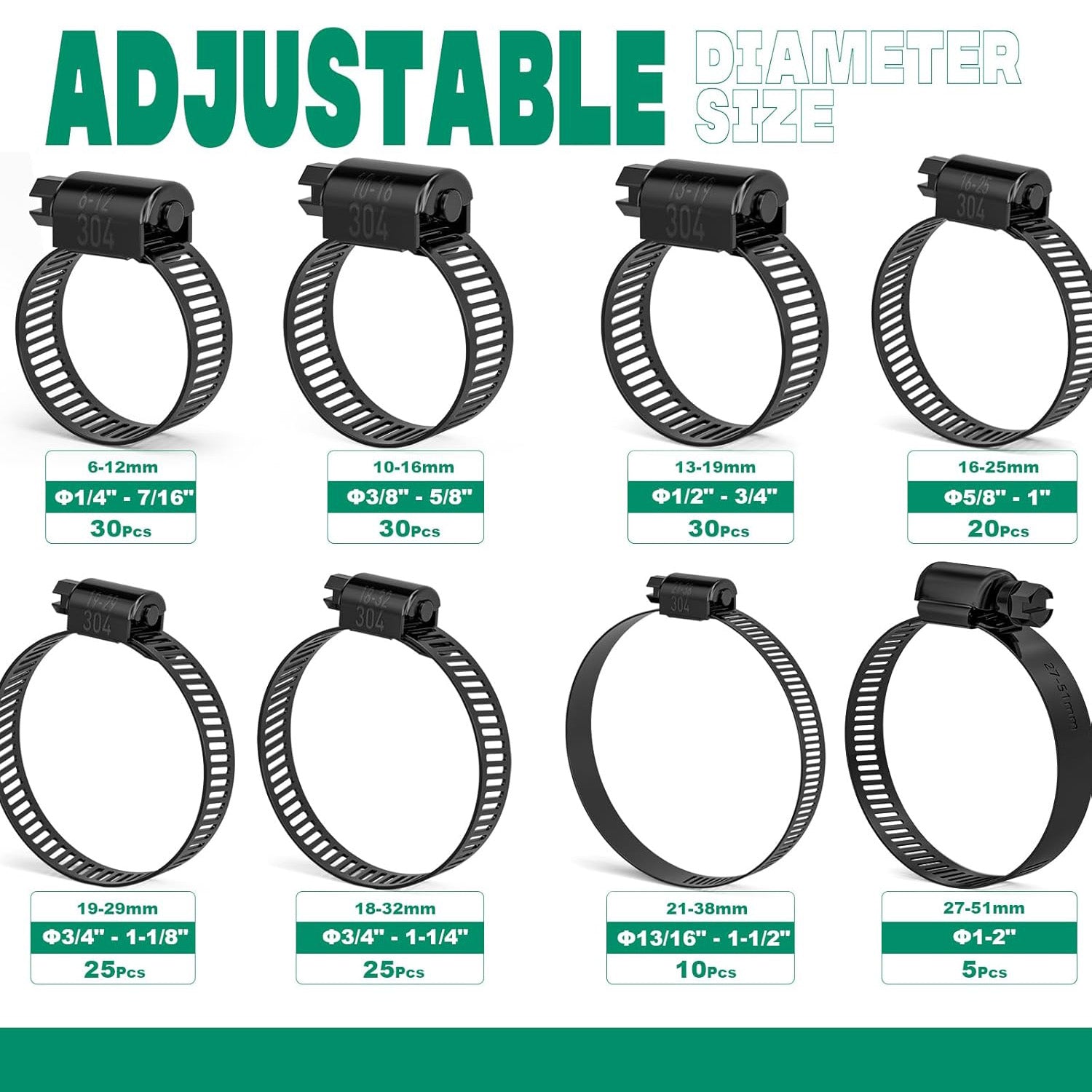

Tip: If you’re unsure or your measurement falls between sizes, consider buying a hose clamp assortment kit. For example, Ouru offers a Hose Clamps Silver Color Kit that includes a range of worm gear clamps in various diameters (all stainless). With an assorted kit on hand, you can try a couple of sizes to see which fits best, and you’ll have extras for future projects. Such a kit might include small clamps for 1/2″ tubes up to larger 2″ or 3″ hose clamps, covering many common needs. It’s a handy investment for DIYers, ensuring you always have the right size worm clamp when you need it.
Once you’ve got the correct size hose clamp for your dryer vent, installing it is straightforward for any DIY homeowner. The goal is a tight, even seal around the vent connection without damaging the duct. Here’s how to do it like a pro:
Prepare the dryer and hose: For safety, unplug the dryer (and turn off the gas valve if it’s a gas dryer) before moving it. Pull the dryer away from the wall enough to access the vent connection. Ensure the vent pipe and the hose end are clean and free of old tape or gunk. If re-using an old flexible hose, clear out any lint; if it’s damaged or too short, now is a good time to replace it. Also, inspect your new worm drive clamp – make sure it’s not twisted and the screw mechanism moves freely.
Loosen the clamp: Using a flat-blade screwdriver or a 5/16″ nut driver (socket), turn the worm screw on the clamp counter-clockwise to open it up. Worm gear clamps have threads that engage the band; as you loosen, the loop expands. Open it wide enough to easily slip over the end of the hose.
Position the clamp and hose: Slide the loosened clamp a few inches onto the dryer hose (don’t tighten yet). Now fit the dryer vent hose onto the circular outlet pipe (or wall vent pipe). Push it on so it covers the pipe at least a couple of inches for a good grip. If it’s a rigid metal pipe connection, it should go on until it’s fully seated. If it’s a flexible foil or semi-rigid hose, make sure it’s not crushed and is evenly placed around the circumference. Then move the hose clamp into position – it should sit over the area where the hose overlaps the dryer’s outlet pipe. Typically, that means the clamp will be about 1/2″ to 1″ from the end of the hose, ensuring it’s over the tube that’s beneath.
Tighten the hose clamp: Turn the clamp’s screw clockwise to tighten. As you do, the band will contract around the hose and the outlet, clamping them together. Tighten until the hose is secure – you’ll feel resistance increase as it gets snug. A good rule is “snug plus a little more.” You want it tight enough that the hose doesn’t slip off and no gaps for air to leak, but not so tight that you deform or cut the hose. If using a flexible duct, be especially careful: over-tightening can strip the clamp or crush a flimsy foil hose. A properly sized clamp shouldn’t require herculean force to seal. In fact, even the right size clamp can damage a hose if cranked excessively – tighten just until secure, then stop. You can always give it a gentle tug test on the hose to ensure it’s locked. (If your clamp has a recommended torque spec, follow that, but for dryer vents a hand-tight with a screwdriver is usually fine.) Remember to use the right tool – a screwdriver is common, but a small ratchet or nut driver can make it easier to apply steady, even torque. Many pros use nut drivers for hose clamps to avoid slipping off the screw head.
Double up if needed: For an extra professional touch, you can install two clamps at the connection point. This is sometimes done in automotive or heavy-duty applications, and some dryer vent pros suggest it too. If you go this route, you would put two worm gear clamps next to each other on the hose end, and tighten them with the screw drives on opposite sides (so the pressure is evenly distributed). Using two clamps can provide a more uniform seal and a backup in case one loosens. It’s usually not required for a simple dryer vent, but if you find your hose connection is a bit loose or you just want extra security (perhaps if your dryer vibrates a lot), two clamps won’t hurt. Just don’t overtighten thinking two means double the force – each should be snug, and having two is about coverage, not excessive force.
Final checks: Once the clamp is installed, inspect the connection. Verify that the clamp’s band sits flat all the way around, with no part of the hose pinched or bulging out. The screw housing should not be tilted; if it is, loosen and reposition so it’s square. Ensure there’s no kink in the duct and that the clamp isn’t biting into anything it shouldn’t (for instance, if using semi-rigid metal duct, make sure the clamp is on the plain section, not half on a ridge or elbow). Trim any excess tail of the clamp band if it’s extremely long and in the way (though most leave it be). Now is a good time to also check the wall vent side of the hose: secure it similarly with a clamp if it’s not already, or use the provided metal pipe clamp or collar there. Do not use duct tape or screws on dryer vents – standard duct tape can’t handle the heat and will fail, and screws that penetrate the vent can catch lint, creating a hazard. The only tape acceptable is UL-listed aluminum foil tape, but even that is often used in conjunction with (not instead of) a clamp for dryer connections. So a worm gear hose clamp remains the go-to solution for a tight seal that’s also easily removable for maintenance.
Test the connection: Plug the dryer back in (and turn gas on if applicable). Before shoving it back to the wall, do a quick test run. Turn the dryer on air fluff or a short cycle and go to where the vent exits outside. Feel for a strong flow of air. Also listen and feel around the clamp joint (carefully, it may vibrate) – you should not feel air escaping at the hose connection if the clamp is doing its job. If you detect leaks, you might need to tighten a bit more or reposition the clamp. Once everything is blowing out smoothly with no leaks, you’re good to go. Push the dryer carefully back into place, being mindful not to dislodge or crush the vent hose as you do so. In tight spaces, an offset or periscope vent can help, but that’s another topic.
Future maintenance: It’s wise to inspect your dryer vent and clamp periodically (perhaps once a year when cleaning lint). A quality stainless hose clamp should last years without rusting or loosening. If you ever remove the hose for cleaning, you can reuse the clamp – just loosen and retighten. However, if the clamp’s screw strips or the band cracks (usually due to over-tightening or cheap materials), replace it with a new one. They’re inexpensive, and using a fresh worm gear clamp is better than risking a weak connection. Also, ensure the clamp never protrudes into the vent path (inside the duct) – normally worm clamps don’t, but if you used any other fastener, be cautious. As a rule, keep the inside of the vent smooth to prevent lint buildup, which is another reason we use external clamps and foil tape only, no interior screws or rivets.
By following these steps, you’ll have a securely clamped dryer vent that’s as good as a professional installation. It’s a beginner-friendly task – essentially just loosen, slip, and tighten – but doing it right ensures your dryer vent is airtight and safe. A properly installed worm gear hose clamp will keep the vent hose firmly attached even with the dryer's vibrations, and help prevent that hose from popping off (which can blow lint and moisture into your laundry room – a messy and hazardous situation). With the clamp tight and the vent clear, your dryer can run more efficiently and you’ll have peace of mind that your connection is solid.
In summary, picking the right size hose clamp for your dryer vent comes down to measuring and matching. Always measure the outer diameter of your dryer’s vent pipe (with the hose on) before buying a clamp. Use that measurement to select a worm clamp whose range comfortably includes that size – ideally not at the extreme min or max of the clamp’s capacity. For most standard 4″ dryer vents, a clamp in the 3″–5″ range (approx 75–125 mm) works well, and it should be a stainless steel worm gear clamp for durability. Once you have the correct hose clamp (worm drive), install it carefully: loosen it up, position it correctly over the duct and outlet, and tighten it firmly but without over-cranking. The result will be a secure, leak-free connection that keeps your dryer venting safely. Remember, an ill-fitted clamp (too small or too large) can lead to air leaks, lint escape, or the hose slipping off – issues that are easily avoided by “measuring, matching, and installing right.” By following the steps outlined above, even DIY beginners can tackle this task with confidence. A simple worm gear hose clamp may be a small hardware piece, but it plays a big role in your dryer’s safety and performance. So measure first, choose wisely, and tighten it up like a pro – your dryer (and your home) will thank you!
