If you’re chasing a safer, faster dry time and want to avoid lint-driven headaches, a proper hose clamp install on the dryer transition duct is a must. Below is a clear, code-aware walkthrough for DIYers that keeps airflow high, lint low, and connections tight. We’ll lean on authoritative guidance (IRC/ICC, manufacturer manuals, USFA) and show you where a worm-gear clamp shines in real-world hose clamp installation.
Featured pick for DIYers: the Ouru Hose Clamps Silver-Color Kit—multiple sizes, stainless hardware, ready for laundry rooms and utility spaces: https://ourushop.com/collections/hose-clamp/products/hose-clamps-silver-color-kit-boxed-30-70-72-96-150-175-pcs
Before you touch the dryer, gather the right kit. A correct hose clamp is only one piece of a safe system.
Tools:
1/4" nut driver or flat-head screwdriver (best feel for a worm-gear clamp / worm clamps).
Hose clamp pliers (handy if you’re also releasing a spring hose clamp, but most dryer connections use worm-gear).
Tape measure, utility knife, tin snips (for rigid sections).
Flashlight, shop vac (lint cleanup).
Bubble level (keeps long runs pitched slightly down toward the terminal to shed condensation).
Materials:
UL 2158A-listed transition duct (the short, flexible section between the dryer and wall collar). Code caps this piece at 8 ft max and it can’t be concealed in walls/ceilings. It’s for the appliance hookup only.
Smooth, rigid metal duct (4-inch), not plastic or thin foil flex, for the in-wall/in-ceiling run. IRC requires smooth-wall metal for dryer exhaust ducts.
Stainless steel hose clamps / stainless hose clamps (4" is standard). The worm gear hose clamp style is the go-to hose clamp here because it delivers even compression without cutting the duct.
Metal foil tape (UL-rated), not cloth “duct tape,” to seal joints in the rigid sections.
Exterior hood with a backdraft damper (dryer exhaust must terminate outdoors with a damper).
Support straps for long runs.
Optional: short pipe clamp or metal clamp as a hanger on long vertical sections.
Why all this matters: lint is fuel. Keeping joints smooth, airtight, and free of screws (which snag lint) cuts fire risk and improves performance. (The USFA’s dryer fire guidance highlights lint as a major hazard—clean and maintain the system.)
Picking the right hose clamp and duct parts is as important as tightening technique.
1) Transition vs. in-wall duct:
Use a UL 2158A transition duct (typically semi-rigid or listed flexible) only between the dryer and the wall collar, and keep it under 8 feet—it cannot run inside walls or ceilings.
Use rigid 4-inch smooth metal for everything else in the building cavity. (This keeps static pressure down and lint down.)
2) Clamp type & metal:
Choose a stainless steel hose clamp (a worm gear clamp) for corrosion resistance and consistent torque. The slotted band and captive screw deliver precise tightening. Good hose clamps in stainless hold up to humidity and laundry-room chemistry.
Avoid plastic clamps for hose on dryer vents; heat plus vibration often loosens them.
If you’re replacing a dryer hose clamp on older foil flex, upgrade the duct and clamp together—performance and safety jump dramatically.

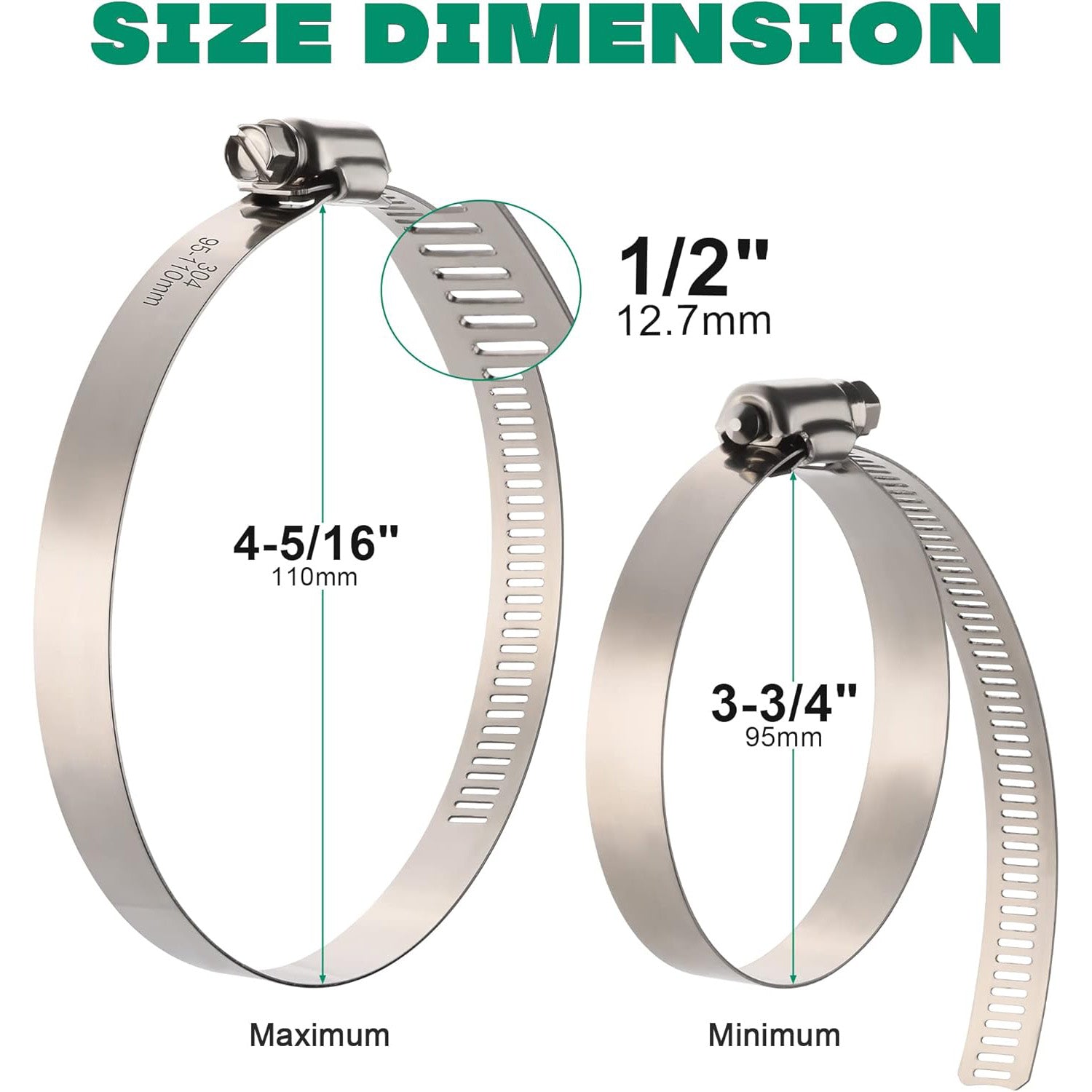

3) Sizing the hose clamp:
Standard dryer collars and ducts are 4 in (102 mm) OD. Pick a hose clamp whose adjustment range comfortably spans 4" with room to spare (typical worm-gear ranges easily cover 3–5").
A quality worm gear hose clamp should tighten smoothly without band distortion. If you max out travel and the band “spirals,” you’re undersized. Step up to the next larger hose clamp.
For very short nipples or double-walled collars, longer hose clamp bands can give better bite.
4) What the manufacturer says matters:
Many installation manuals (e.g., Whirlpool) tell you to secure joints with clamps or foil tape and not to use screws that penetrate the duct. Screws snag lint and violate code in most jurisdictions.
IRC length rules: unless the dryer manual says otherwise, default maximum equivalent length is 35 ft with deductions for elbows (5 ft per 90°, 2.5 ft per 45°). Keep the run short and elbows gentle.
Tip: If your setup needs two hose clamps (one at the dryer spigot, one at the wall collar), keep both the same stainless spec so they tighten predictably.
The goal is a snug, round, airtight connection that doesn’t deform the duct. Here’s a field-tested sequence that aligns with codes and manufacturer practices.
Safety & prep
Unplug the dryer (and close the gas valve if gas). Slide the unit forward enough to work, protecting the floor.
Inspect & clean: vacuum lint behind and under the dryer; check the wall collar and exterior hood. Confirm the hood damper opens freely. (Dryer exhaust must vent outdoors with a damper.)
Confirm materials: UL 2158A transition duct? Rigid metal in the wall? Good. Replace old foil/plastic and any crushed runs.
Dry-fit length: You want a gentle bend with zero kinks. If the path needs extra slack, add a short rigid elbow at the wall to point the outlet directly at the dryer spigot.
Build the connection
5) Pre-set the hose clamp: Slide a worm gear hose clamp over one end of the transition duct. Position the screw where you can reach it with a nut driver.
6) Seat the duct: Push the duct fully onto the dryer’s 4" outlet until it bottoms out. If the outlet has a bead (raised ridge), the duct should pass the bead slightly so the clamp can grab behind it.
7) Place the hose clamp: Move the hose clamp band over the metal spigot under the duct—center the band over the spigot so compression lands on metal, not thin air.
8) Tighten smoothly: Using a nut driver, turn the worm-gear clamp screw until the duct stops creeping and you feel resistance, then add a small further turn (think “snug plus a touch”). Stop if the duct wall begins to ovalize or ripple. That’s over-tight.
9) Seal rigid joints: For any rigid-to-rigid seams, use UL-rated metal foil tape. Don’t use screws—lint catchers that also violate code and many manuals.
10) Attach at the wall collar: Repeat steps 5–8 at the wall collar with a second hose clamp. Avoid sharp bends right at the collar; a gentle S-curve flows far better than a hard kink.
Support & verify
11) Support the run: Use straps/ pipe clamps on long verticals to prevent sagging that might loosen a hose clamp over time.
12) Check equivalent length: Count elbows and total run—stay within your dryer manufacturer’s maximum or default IRC values (35 ft with elbow deductions if no manufacturer chart).
13) Power on & test: Run the dryer on air-fluff. Outside, confirm strong airflow and free damper movement. Inside, feel around the hose clamp areas for leaks (no linty breeze).
14) Gas dryers only: If you disturbed the gas connection, bubble-test the union for leaks (soapy water, look for bubbles)—fix before use.
What “right” looks like
The hose clamp band is level and centered on the metal spigot.
The transition duct stays round with no kinks.
No screws penetrate the duct anywhere (use hose clamps or foil tape, per manuals/code).
The exterior hood is clear, damper swings freely, and exhaust terminates outdoors.
A clean, code-compliant dryer hookup is straightforward:
Use the right parts: UL 2158A transition duct at the appliance (≤8 ft and not concealed), rigid smooth metal in the wall, and an outdoor termination with a damper.
Use the right fasteners: a stainless worm gear hose clamp (or two) and foil tape—no screws penetrating the duct.
Keep it short and smooth: follow the max length limits (manufacturer chart or IRC defaults) and minimize elbows.
Maintain it: vacuum lint regularly; the USFA ties lint buildup to dryer fires—maintenance is part of safety.
When you do those things, your hose clamp connection stays airtight, you get faster dry times, and you dramatically cut lint hazards.
