Grease Fittings

Identify the original thread and inspect the port before choosing replacement grease fittings. Thread forming grease fittings are designed for specified untapped holes; they are not a universal repair for stripped threads. Do not force in a larger fitting simply because the original one feels loose. Have a qualified technician determine whether an approved thread repair, oversize fitting, or component replacement is appropriate, while keeping machining debris out of the lubrication passage.

Check whether the coupler matches the fitting head and seats correctly before choosing another adapter. Poor engagement or a damaged coupler can cause leakage during pumping. Flush type grease fittings require a matching flush nozzle rather than a standard jaw coupler; certain low-profile U-joint fittings require a specified needle adapter. Identify the head design from the component instructions, and do not assume that any needle tip will fit.

Choose the adapter by the lubrication-point design, not the mounting thread alone. For small grease fittings, record the complete thread specification, head diameter and profile, opening size, and surrounding clearance. An M4 mounting thread does not establish which coupler will seal against the head.

Compare these details with the equipment manufacturer’s nozzle requirements. Some linear-motion equipment requires dedicated nozzles and attachments. Do not force a larger needle into a small check-ball opening; obtain a confirmed adapter match first.

Choose the angle that allows the coupler to connect and release without obstruction. Straight fittings suit direct access, while angled grease fittings can bring the lubrication point toward an accessible approach. Also allow room for the installation wrench, coupler body, and grease hose.

Confirm the thread specification separately from the angle. Do not overtighten a fitting simply to point it in the desired direction; choose a suitable fitting or adapter within the manufacturer’s installation requirements.

Check the grease gun and coupler before assuming the fitting is blocked. If several lubrication points are affected, follow the gun’s troubleshooting procedure for trapped air, grease supply, or blocked delivery components. If only one point is affected, inspect that fitting and its passage for contamination or hardened grease.

Replace clogged grease fittings that cannot be restored using the approved service procedure. If a verified, working replacement still will not accept grease, investigate the downstream passage or component. Do not keep increasing pressure to force grease through a blockage.

First distinguish grease left on the surface from grease repeatedly emerging through the inlet. Grease zerk fittings use a spring-loaded check ball that closes after pumping stops. Persistent backflow warrants inspection of the ball, seat, and spring for contamination or damage; replace a fitting that no longer closes correctly.

If leakage occurs only while the gun is attached, inspect coupler engagement and condition instead. Grease leaking from the threaded base requires a separate check of the mounting connection.

Stop pumping and follow the grease gun manufacturer’s procedure for relieving pressure in the delivery hose. Then operate the coupler’s intended release mechanism. Some systems use a dedicated pressure-return valve; its procedure and compatibility are model-specific.

Do not pry against grease zerk fittings, pull forcefully on the hose, or loosen pressurized threaded connections. High-pressure grease can penetrate skin. If pressure cannot be safely relieved or the coupler remains locked, have the equipment serviced rather than forcing it apart.

Factory pregreasing does not always eliminate the need for lubrication during installation. For ball joints with grease fittings and other serviceable components, follow the component manufacturer’s initial-fill instructions and maintenance schedule—not an interval based solely on the fitting.

Use the specified grease and quantity, and account for operating conditions such as heavy use, water, and contamination. Do not assume every component should be pumped until grease escapes; excessive pressure or overfilling can damage seals or boots.

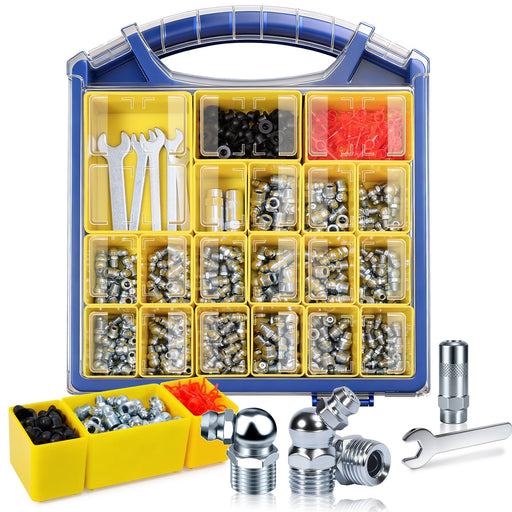

The packing chart for OURU’s 260-piece grease fitting kit lists 1/4-28, 1/8-27, M6, M8, and M10 fittings in straight, 45°, and 90° configurations. It contains 180 metal fittings, 75 dust caps, and 5 wrenches—not 260 metal fittings. Confirm the full thread pitch and thread form needed for your equipment before ordering.

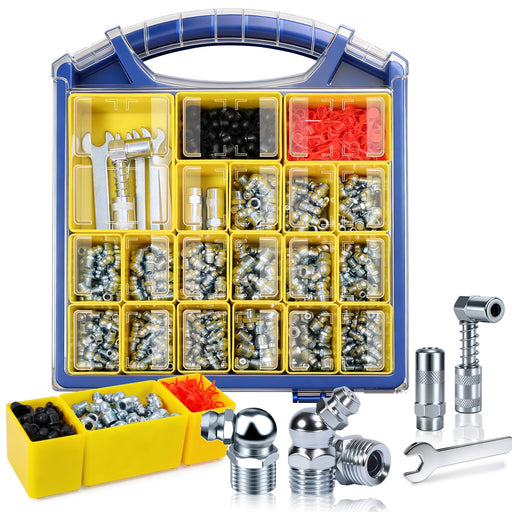

An assortment is worth considering when you regularly service several compatible sizes. For repeated replacement of one known size, compare a single-size pack instead. Judge value by the fittings you will actually use, rather than the total piece count.

Compare documented specifications rather than price, brand name, or country of origin alone. For a grease fitting assortment, check thread identification, head dimensions, body material, corrosion protection, check-valve performance, and availability of replacement sizes. Ask for supporting specifications where sealing or durability claims affect your application.

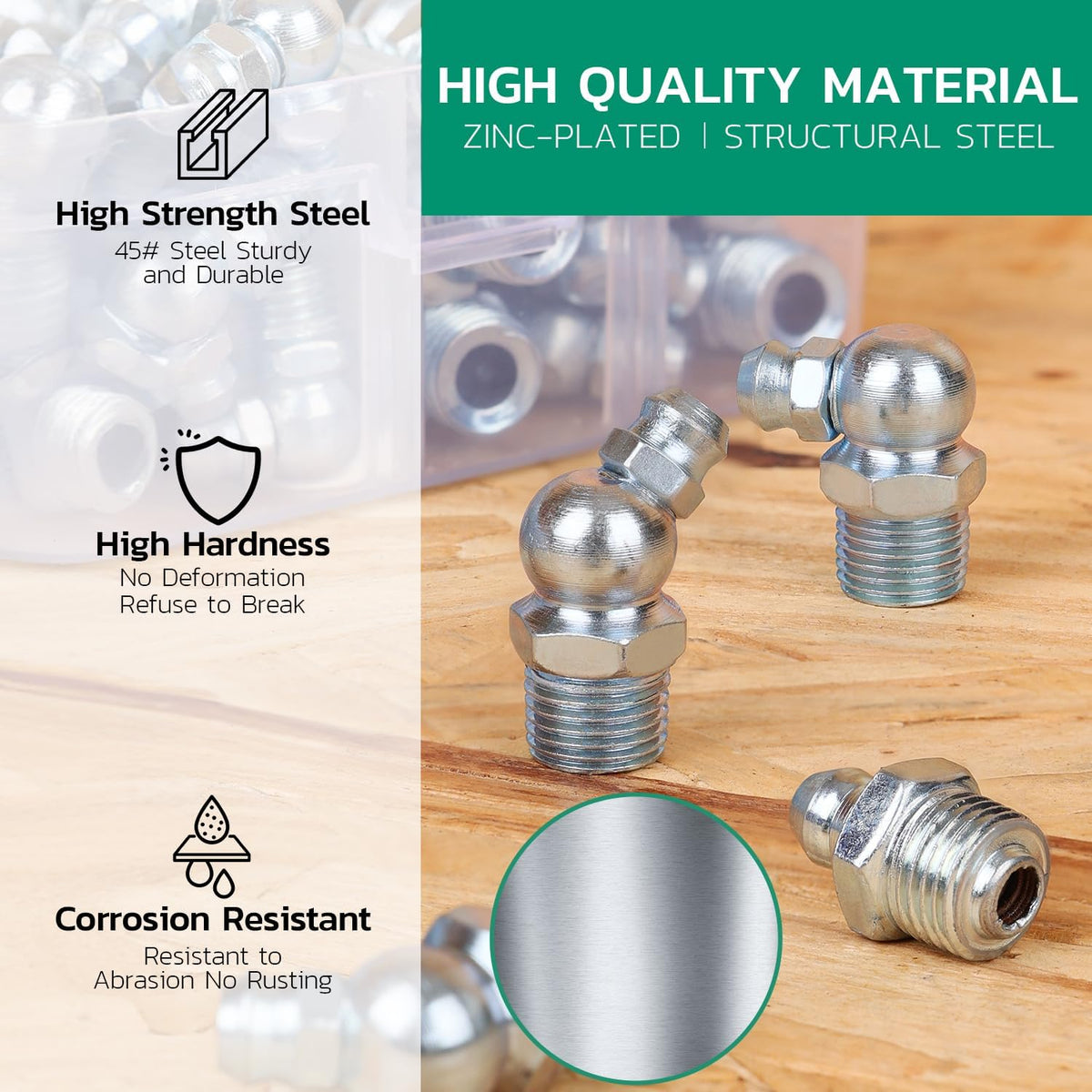

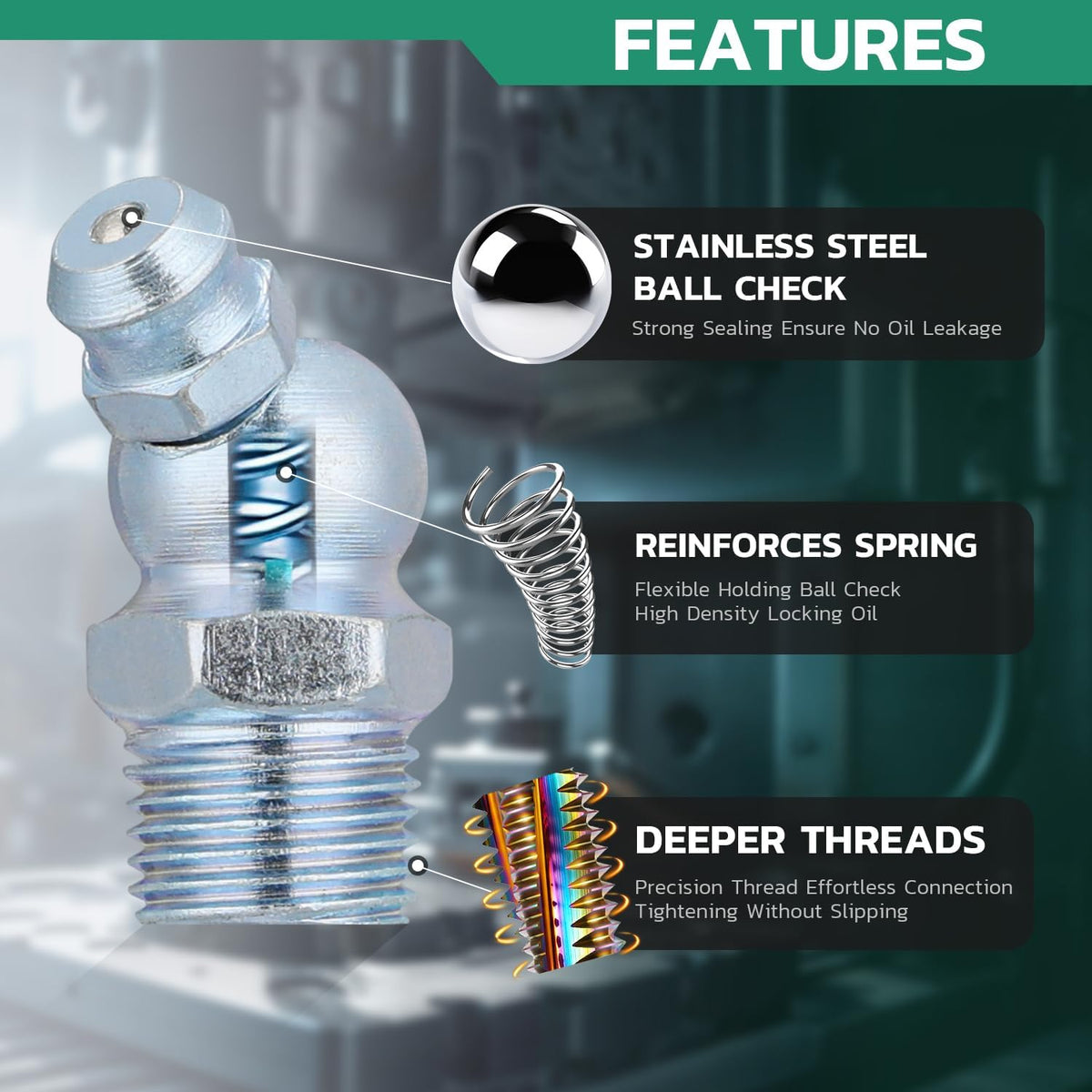

Also distinguish body material from internal components: OURU’s current kit is described as galvanized steel, while its feature image identifies a stainless steel check ball. That does not make the entire fitting stainless steel.

No. The mounting thread and the grease-gun connection are separate specifications. A fitting marked M6 × 1.0 may match the equipment port without confirming that your coupler fits its head.

Request the fitting’s declared head standard and dimensional drawing, then compare the head diameter, neck profile, and available engagement space with the coupler manufacturer’s requirements. Flush fittings, for example, require a different nozzle connection. Do not treat one quoted head diameter as universal across all fitting designs.

Start by cleaning grease fittings before attaching the gun, then wipe away excess grease afterward. Use correctly fitting dust caps to help keep moisture and debris away from the lubrication point. Caps do not repair an already blocked or damaged fitting.

For demanding corrosive environments, consider stainless steel grease fittings approved for the equipment and exposure. Check the specified materials of the body, ball, and spring—not just the finish or appearance—and replace fittings with deterioration that affects sealing or operation.

Increasing resistance can be normal for certain tapered lubrication threads, but one tight turn does not establish correct installation. Some 1/4-28 taper thread grease fittings use SAE-LT threads designed for a specified straight 1/4-28 tapped hole. These differ from ordinary straight-thread fittings.

Confirm the fitting’s exact thread form, the hole specification, and the required installation depth or torque. Stop if the fitting enters crookedly or resistance rises unexpectedly. Do not use extra wrench force to compensate for an unidentified thread or damaged hole.

Start with the equipment model and parts diagram. When selecting replacement grease fittings, confirm the mounting type, complete thread specification, head design, angle, and installed clearance. Do not assume that a missing fitting was threaded: drive-in and other designs also exist.

Compare the identified specification with the selected kit’s contents, then check that variant’s current availability. For an uncertain match, send OURU the equipment model, clear port photographs, and any confirmed measurements before purchasing; a kit labeled “SAE and Metric” does not guarantee coverage of every equipment port.
