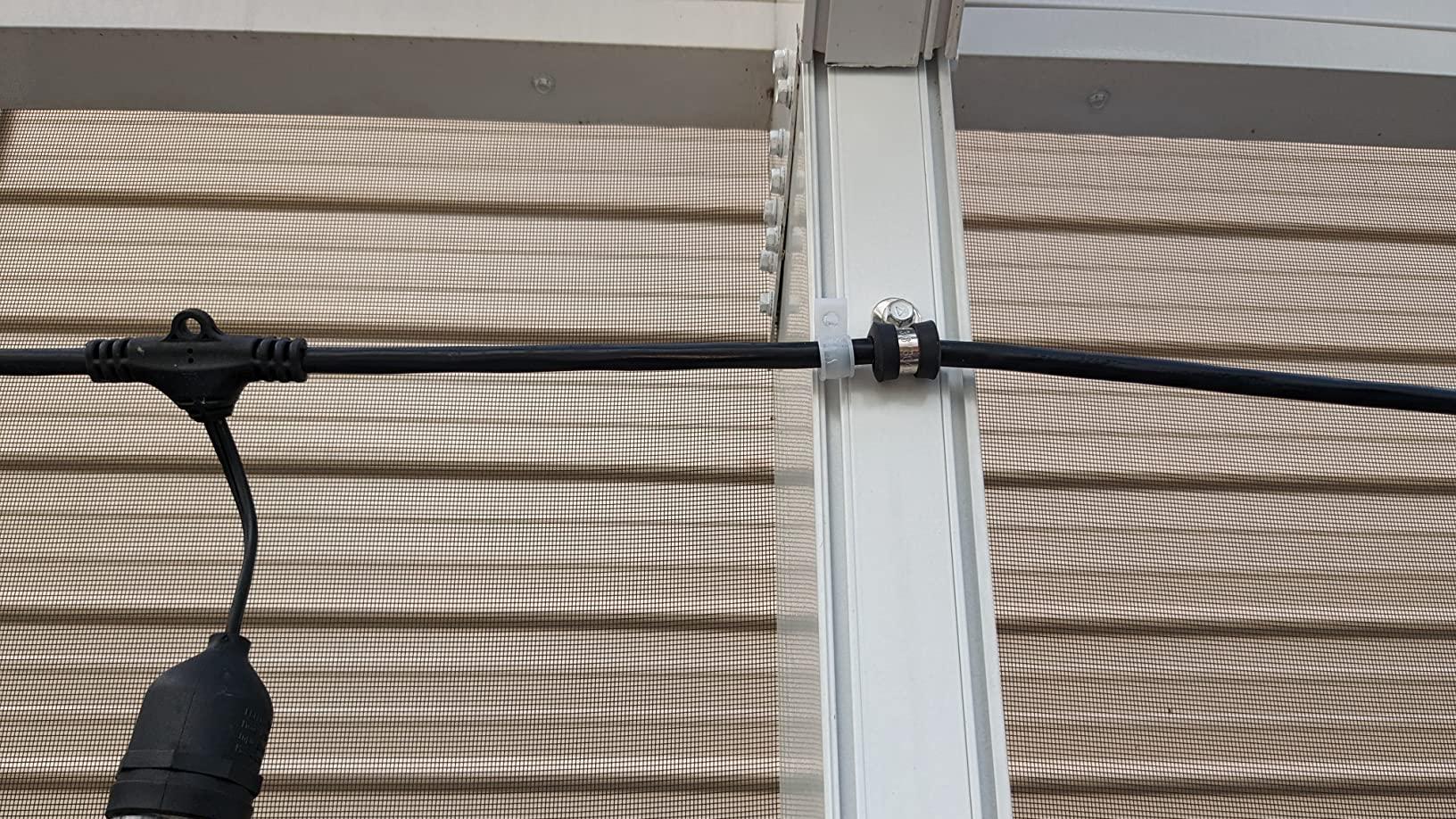

Introduction: Cable clamps – also known as wire clamps or wiring clamps – are essential fasteners for managing and securing electrical cables, wires, and even hoses. Using the right size clamp is crucial: a clamp too small won’t fit or could damage the cable, while one too large (a loose clamp for wire) won’t hold the bundle securely. Many people make the mistake of choosing cable clamps based only on the wire’s AWG (American Wire Gauge) number or rough guesswork. However, AWG alone is not enough to ensure a proper fit. In this guide, we’ll explain why wire gauge by itself can be misleading, and walk through a 3-step cable clamp sizing workflow that covers measuring the wire/cable outer diameter (OD) and selecting the right clamp. Whether you’re an electrician tidying up wiring clamps in a panel or a DIYer adding clamps for wire organization in a vehicle, these tips will help you match clamps to cables like a pro.
Read more: How to Choose the Right P-Clamp Size
AWG measures only the conductor size and not the overall thickness of the insulated wire. In other words, the AWG number tells you the copper conductor’s diameter (or cross-sectional area) – it does not account for the wire’s insulation or jacketing. Two wires of the same AWG can have very different outside diameters (OD) if one has a thin PVC insulation and another has a thick rubber insulation. For example, a 14 AWG solid wire might be around 0.064 inches bare, but with heavy insulation it could be over 0.130 inches in overall diameter. That’s nearly double the thickness, even though the AWG (the metal part) is identical. Jacketing and insulation aren’t factors in the AWG rating, so judging cable clamps by AWG alone can lead to a clamp that’s too tight or too loose.
Moreover, different cable types (even at the same AWG) vary. A stranded 8 AWG welding cable with a thick rubber jacket will be much larger in OD than an 8 AWG THHN building wire with thin insulation. Recognizing this, manufacturers publish charts of approximate wire outside diameters for various insulation types. For instance, Panduit’s electrical wire size guide shows OD ranges for each AWG with common insulation: e.g. a 12 AWG wire can be ~0.081 inch bare versus ~0.152 inches with thick insulation. They explicitly advise using the outer diameter when selecting accessories like heat-shrink tubing or fixed-diameter cable clamps. In short, cable clamp sizing must consider the full cable OD, not just the gauge. Even the type of cable (multiconductor, shielded, etc.) affects OD. A shielded Ethernet cable (24 AWG pairs) can be ~6 mm OD, whereas a simple 24 AWG single wire is only ~1 mm – a huge difference for choosing an electrical cable clamp.
This principle isn’t limited to electrical wiring. In the rigging world, for example, wire rope cable clamps (U-bolt style clips) are chosen by the rope’s actual diameter, including any coating. Industry guidance says if you have a 3/16″ steel cable that’s vinyl-coated to 1/4″ final OD, you should use a 1/4″ clamp to match that outer size. The lesson is universal: always go by the outer diameter of what you’re clamping. AWG or nominal size is a starting point, but measuring the real OD is key to selecting the correct clamps for wires and cables.
Choosing the right cable clamp becomes easy with a systematic approach. Use this 3-step workflow to match clamp size to any wire or cable:
Identify the Cable Type & AWG: Start by noting the wire’s AWG or size and its construction. Is it a single conductor or a bundle (multi-core cable)? What insulation type or jacket does it have (PVC, rubber, Teflon, etc.)? This gives you a rough idea of the expected thickness. For standard electrical wires, you can look up typical OD for that AWG and insulation in charts or specs. For example, a 10 AWG THHN wire might have about a 0.15″ OD, whereas a 10 AWG welding cable with thick rubber insulation can be closer to 0.30″. If the manufacturer provides an OD spec (often in the datasheet for cables), note that value. In absence of data, be prepared to measure. Remember that wire clamps for multi-conductor cables or cords must fit the overall jacket, which could be much larger than an individual conductor’s AWG implies.
Measure the Outer Diameter (OD): Measuring the cable’s actual outer diameter is the most important step. Use calipers for a precise measurement of the cable’s thickness across its widest point. Tip: If you don’t have calipers, use a flexible measuring tape (or even a strip of paper or string) to find the cable’s circumference, then divide by π (3.1416) to get the diameter. For example, if the circumference is ~12.57 cm, dividing by π gives ~4 cm diameter. This method works for pipes and round cables alike. Ensure you include any insulation, sheath, or shielding in the measurement – basically whatever the clamp will encircle. For a bundle of wires, measure the bundle’s overall OD (you may use tape to hold the bundle and then measure). Accuracy matters: a difference of a couple millimeters can decide whether a plastic cable clamp snaps shut or not. If you’re sizing a cushioned clamp (P-clamp) that has some flexibility, you still want the measured OD to be within the clamp’s range. Many electrical cable clamps will specify a maximum bundle diameter (for instance, a clamp might be labeled “fits up to 0.5 inch” cable). Always compare your measured OD to the clamp’s spec.
Select the Appropriate Clamp Size: With the cable OD in hand, choose a clamp that accommodates that diameter comfortably. This means the clamp’s inner diameter or listed range should equal or slightly exceed the cable OD. You do not want to force a cable into a clamp that is smaller than the cable’s OD. For example, if your wire’s OD is 0.60″ (15 mm), a 1/2 inch cable clamp (0.50″) would be too small – you’d need the next size up, perhaps a 5/8 inch cable clamp (~0.625″) or 16 mm. Clamps are often sold in common fractional sizes or metric sizes: 1/4″ cable clamps, 3/8″, 1/2″, 3/4″, 1″, etc., as well as 5 mm, 10 mm, 20 mm, etc. Aim for a size that is just a bit larger than your cable. A snug fit is good for secure hold, but there should be minimal gap so the clamp isn’t maxed out or overly strained. If using a screw-on metal cable clamp (like a steel P-clip), the screw should go through easily without crushing the cable. Many P-clamps are rated by maximum bundle diameter – for instance, a certain HellermannTyton P-clamp is 0.39″ wide and fits up to a 0.69″ bundle. So if your measured OD is 0.65″, that clamp would work (0.69″ max), but if the OD is 0.75″ you’d need a larger size. Rule of thumb: pick a clamp size where your cable’s OD falls at or slightly below the clamp’s stated capacity. This ensures the wire cable clamp will close securely around the cable without excessive slack. It’s often wise to have an assortment on hand – if you’re unsure, you can test-fit a couple sizes. (Investing in an assortment kit of various clamp sizes is helpful, as you’ll always have the right size available for different projects.)
Example: Suppose you have a bundle of three 12 AWG wires with an overall jacket, and you measure the OD to be about 0.80 inches (~20 mm). You might choose a 1 inch cable clamp (which is 0.25″ bigger than 0.75″) to accommodate it. A 3/4″ clamp would likely be too tight for an 0.80″ cable. On the other end, for a small coax or sensor cable of 0.20″ OD, a 1/4 inch (0.25″) clamp would be a close fit, whereas a 1/2″ clamp would leave it loosely rattling around. Always err on the side of a little extra room if the clamp has a cushioning (the rubber liner will take up some slack), or go exact if it’s a plastic clamp that snaps firmly. The goal is a firm grip without deformation of the cable.
After selecting, double-check the fit: the cable should slide into the clamp and the clamp should close fully around it. If you have to force it with excessive pressure, choose the next size up. If there’s a large gap or the cable slips, go one size down. Properly sized electrical cable clamps will hold cables tightly enough to prevent movement but not so tight as to cut or pinch the insulation.
Accurate measurement of the cable’s outer diameter is the foundation of clamp sizing. Here are some practical tips to measure OD effectively:
Use Calipers for Precision: A pair of vernier or digital calipers is the best tool to measure a cable’s diameter. Place the cable between the caliper’s jaws (the larger, outer jaws for external measurements) and gently close them until they just touch the cable’s sides. The reading will give you the OD. Measure in several spots if the cable isn’t perfectly round or if it has slight irregularities (for example, some power cords or rubber hose clamps for tubing might not be a perfect circle when bent). Use the largest measurement as your OD to be safe. Ensure you’re not compressing a soft cable too much with the caliper – just a firm contact.
Flexible Tape or String Method: If you don’t have calipers, a flexible measuring tape can work (like a tailor’s tape or a specialized diameter tape). Wrap the tape around the circumference of the cable snugly (or wrap a piece of string and then measure the string length). Divide that circumference by π (~3.14) to get the diameter. For instance, if a rope or cable has a 50 mm circumference, dividing by 3.14 gives roughly 15.9 mm diameter. This method is commonly used for pipes and is equally effective for measuring cord clamps and cable bundles. Some tapes even have a “diameter” scale on one side (called a Pi Tape) for direct reading. When using this method, make sure the tape or string isn’t at an angle (it should be perpendicular to the cable’s length) to get an accurate measure.
Check Manufacturer Specs: Whenever possible, consult the cable’s datasheet or specs for outer diameter. For example, Ethernet (Cat6) cables or coaxial cables will usually list an OD in their product info (e.g., “OD = 6.5mm”). If you know the exact cable model, this can save time. Still, it’s good to verify with a quick measure because tolerances or any layering (like electrical tape or heat shrink you added) can change the effective diameter.
Consider Tolerances and Clearance: If the measurement is very close to a clamp’s maximum, it might be wise to go one size up in the clamp. A cable advertised as 0.250″ (1/4″) could actually measure slightly more due to manufacturing tolerances. Also, if you plan to add extra wrapping on the cable (like loom or tape), measure after adding those. Your clamp needs to fit the final state of the cable. Remember how e-rigging recommends sizing to the vinyl-coated diameter for wire ropes – similarly, always measure the current jacket on the cable.
Special Cases – Flat or Irregular Cables: Not all cables are round. If you have a flat ribbon cable or an oddly shaped bundle, you might consider clamps specifically made for those (e.g. flat cable clamps). For a flat cable, measure thickness and width; many plastic cable clips are designed to accommodate a certain flat width rather than a round OD. In such cases, you may need a clamp that matches the larger dimension or one that is adjustable. For most common round wires, though, diameter is the key metric.
By taking the time to measure accurately, you ensure that your chosen clamp for cable will neither bite too hard nor wobble. This protects the cable’s insulation and maintains a professional, safe installation. As a best practice, once you’ve measured and picked a clamp, test-fit one clamp on the cable before installing a whole series of them, especially if you’re using screw-mounted metal cable clamps that are more permanent. It’s easier to adjust size on paper (or with one trial piece) than after you’ve mounted an entire run of clamps with the wrong size.
Summary: In sum, selecting the right size cable clamps comes down to understanding your wire’s actual outer diameter. AWG gauge gives a baseline, but always confirm the OD because insulation thickness, cable construction, and coatings can greatly alter the size. By using the simple workflow of identifying the cable type, measuring the OD carefully, and then choosing a clamp with a matching or slightly larger diameter, you can ensure a secure fit. Properly sized clamps keep your wiring neat, secure, and safe from damage – there’s no more guesswork or trial-and-error needed.
Modern cable clamp options range from tiny nylon cable clamps for delicate electronics to heavy-duty stainless steel cable clamps for industrial hoses. But regardless of material or style (be it a plastic push-in clip, an adhesive wire clamp, or a screw-down P-clamp), the sizing principle is the same. As you plan your project, double-check those measurements and don’t hesitate to keep an assortment of sizes on hand for convenience.
Read more: How to Choose the Right P-Clamp Size
Ready to tackle your next wiring job with confidence? Make sure you have the right clamp sizes available. Ouru offers a comprehensive Cable Clamps Assortment Kit (50/150/280 PCS) that includes a range of clamp sizes from 1/8″ up to 2″ diameter – perfect for electricians, automotive DIYers, and anyone in need of quality clamps. Check out the product link below to get your Ouru cable clamps kit and ensure you’re never caught without the proper clamp for your wires and cables. Secure your installation with the right size clamp every time!
