What Is a Hose Clamp? Types, Sizing, and Leak-Proof Uses
A hose clamp is a circular fastening device that helps secure a flexible hose over a compatible barb, bead, or fitting. Its job is to apply controlled clamping force around the hose connection. It is not a universal substitute for every plumbing, hydraulic, fuel, or pressure-rated connection.
A reliable seal depends on four parts working together: the correct clamp mechanism, a measured diameter range, a properly seated hose and fitting, and installation plus inspection according to the equipment requirements.
Main Hose Clamp Types
Choose the mechanism that the connection calls for. Different clamp designs are alternatives—not items to combine on the same ordinary connection.
Worm-gear clamps use a screw housing and a slotted band. They are adjustable and are common on compatible service connections. Spring-band clamps have two tabs and use spring force; use them only where the equipment specifies a compatible spring-clamp design. Single-ear clamps are one-time crimp designs with a raised ear and require the correct crimping tool.
Other structures, including constant-tension and T-bolt clamps, have different installation and system requirements. Do not select a clamp type simply because it looks stronger or is made from a particular metal.
Spring and Single-Ear Clamp Branches
Spring-band clamps are recognized by their paired tabs. They are normally installed and removed with clamp pliers that fit the tabs. They are not screw-adjustable, and a spring clamp assortment should not be used to replace a system-specified worm, ear, or T-bolt clamp.
Single-ear clamps have a smooth band and a raised ear that is compressed with suitable pincers. They are typically replaced after removal. Check the required closing range, fitting compatibility, and tool before choosing this mechanism.
Sizing Guide: Measure the Assembled Connection
Measure only after the hose is fully seated on its fitting. Use calipers or a flexible tape to measure the outside diameter of the hose over the clamping point. Then select a clamp range that contains the measured diameter without operating at the very end of the range.
Confirm that the band width, material, clearance around the fitting, and clamp mechanism all suit the documented application. A material label, a 316 example, a high-temperature example, or a pressure example in a general guide does not certify a particular product for that condition.
For a step-by-step method, read the Hose Clamp Size Guide: How to Measure & Select the Correct Size.
Installation Basics
Inspect the hose and fitting, remove damage or debris, and seat the hose fully. Position the clamp over the intended sealing area—not on the hose edge or a flare. Keep the band square, follow the clamp manufacturer's tightening or closing method, and avoid overtightening.
After installation, inspect the joint and test it according to the equipment procedure. A clamp cannot repair a cracked hose, damaged fitting, or an incompatible connection. Recheck any connection that is subject to normal heat cycling, vibration, or service intervals.
Uses and Maintenance
Common uses include compatible automotive, appliance, utility, and household hose connections. The correct choice varies with the hose, fitting, temperature, vibration, media, and equipment requirements. For critical or regulated systems, use the system's specified components and procedures rather than relying on a general-purpose clamp.

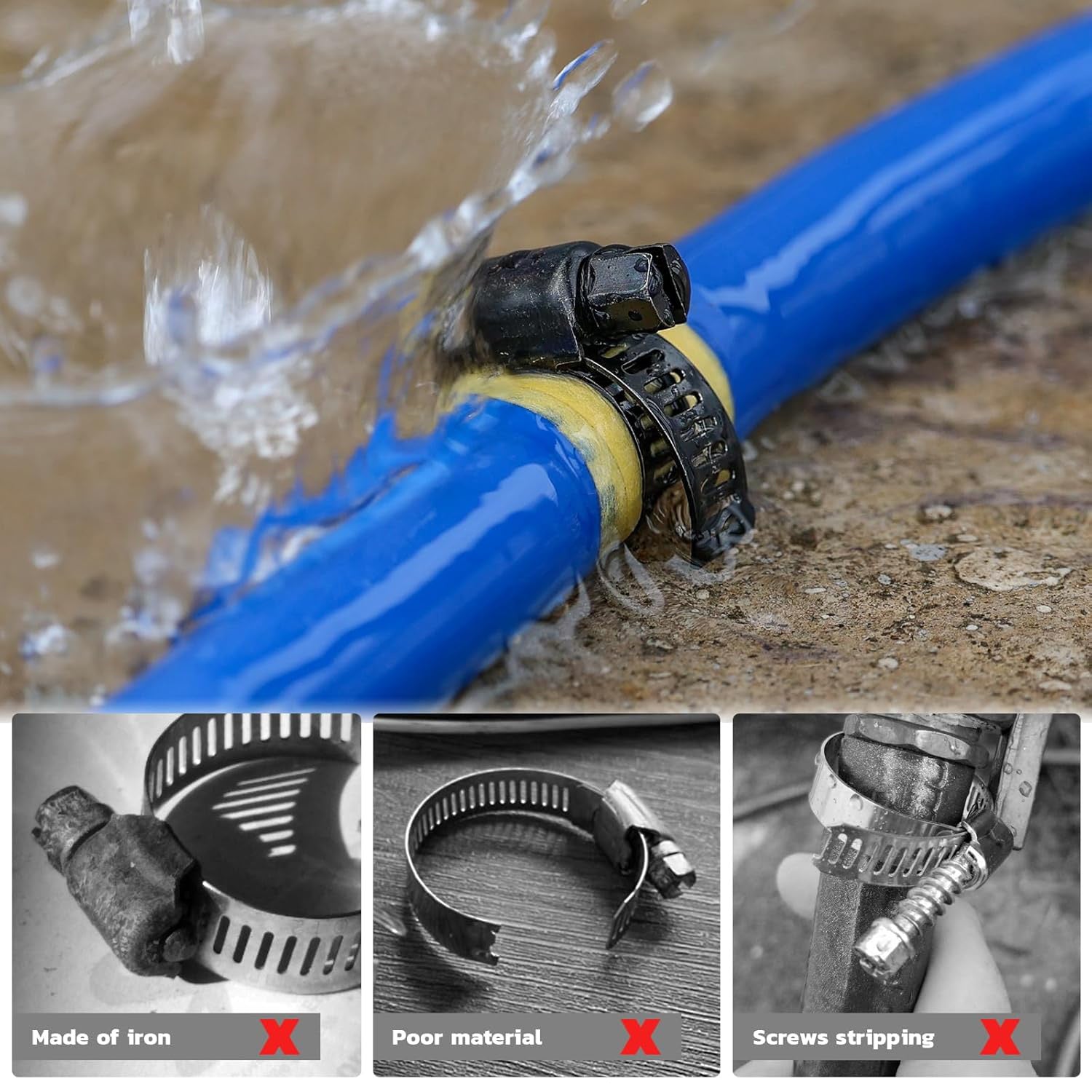

During maintenance, check for corrosion, distorted bands, stripped screw threads, damaged ears, and hose damage beneath the band. Replace damaged hardware with the same suitable mechanism and matching range, then verify the joint again.
Summary: Select, Measure, Install, Verify
A hose clamp is a connection component, not a guarantee by itself. Identify the mechanism, measure the installed hose OD, confirm the application requirements, install it correctly, and verify the finished connection. Select one appropriate mechanism for the job rather than treating every clamp type as interchangeable.
Further Reading
Use the Hose Clamp Size Guide after you identify the clamp type and before you choose a size range.
