How to Choose the Right P-Clamp Size (with Chart & Calculator)

Choose a P-Clamp by the Object’s Outside Diameter

A P-clamp wraps around the item it secures: a single wire, wire bundle, hose, or small tube. The key measurement is therefore the installed outside diameter of that item—not its wire gauge alone and not the mounting-hole size.

A correctly sized rubber-cushioned clamp holds the run securely without flattening insulation or leaving enough clearance for vibration. The clamp’s mounting tab then fastens to the supporting surface.

Measure the Actual Item You Will Secure

Single wires

Measure the finished outside diameter of the insulated wire with calipers. Do not select by AWG alone: insulation thickness varies between cable types.

Wire bundles

Arrange the bundle as it will be routed, then measure the bundle’s widest outside diameter. Include sleeving, heat shrink, loom, or tape that will remain installed.

Hoses and tubing

Measure the hose’s outside diameter after any protective sleeve is fitted. For flexible hose, check the diameter without compressing it.

Match the Clamp Size and Rubber Cushion

Choose a nominal clamp size that matches the measured outside diameter. The cushioned lining should touch the item around the loop without forcing it into the clamp. A clamp that is too small can pinch insulation or hose walls; one that is too large can allow movement and rubbing.

• Compare the product’s stated clamp diameter with your measured installed diameter.
• Allow for any sleeve, loom, or insulation that will be present in final assembly.
• Use a test fit before installing an entire run.

Check the Mounting and Environment

Clamp diameter is only one part of fit. Confirm that the mounting-hole diameter matches the fastener, the base is strong enough to support the load, and the fastener will not loosen under vibration. Choose corrosion-resistant material where moisture, salt, chemicals, or outdoor exposure are expected. On long or heavy runs, use enough mounting points so one clamp is not carrying the full load.

Buying Guide for P-Clamps

After confirming the outside diameter, rubber-cushion fit, mounting-hole size, and installation surface, choose the packaging that fits the work. Use a single-size pack when the required clamp diameter is known. Choose an assortment when one project needs several diameters.

Choose by measured diameter

Choose a rubber-cushioned P-clamp using the measured outside diameter and mounting requirements. Compare single-size packs with assorted kits for your project.

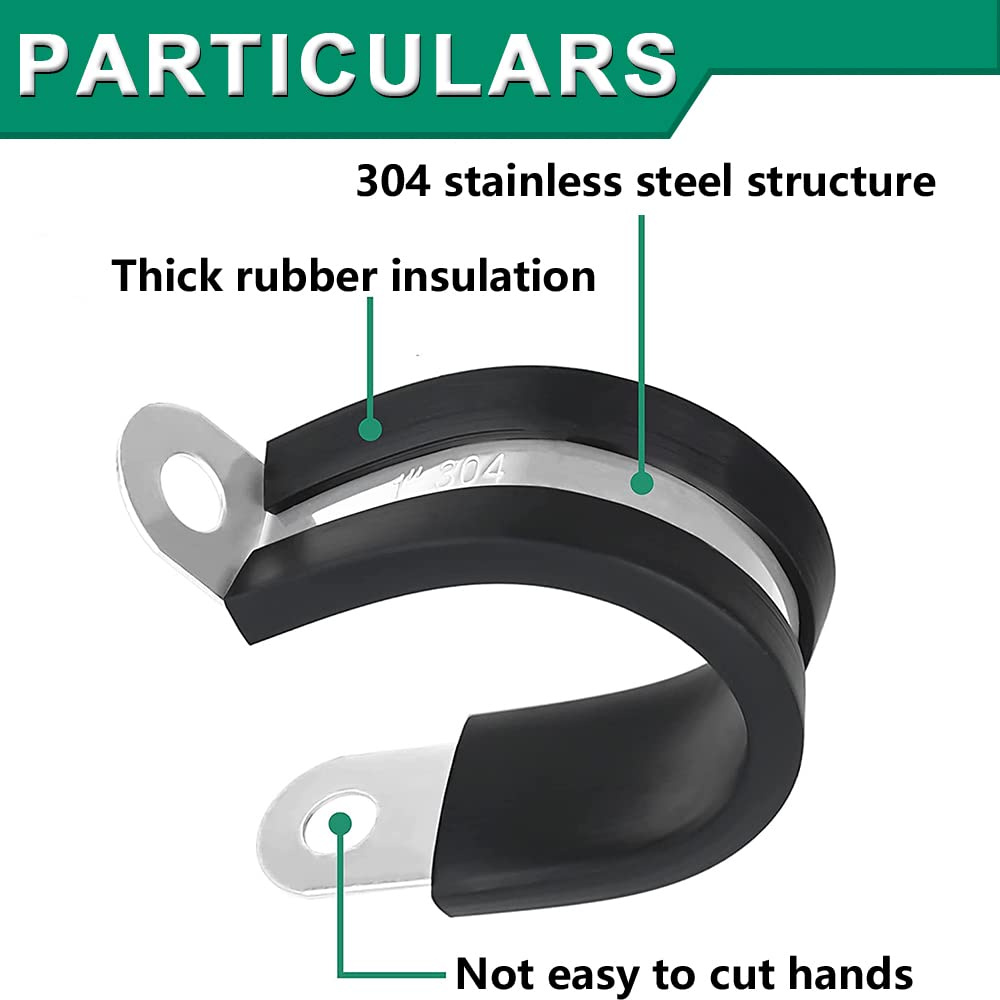

Rubber-Cushioned Cable Clamps — Single-Size Packs

Best when your required clamp diameter is already confirmed.

Choose Cable Clamp Size →

Rubber-Cushioned Cable Clamp Assortment

Best when one installation needs multiple clamp diameters.

View Assorted Cable Clamps →

Install and Recheck

Position the clamp so the run is supported without a sharp bend or side load. Tighten the mounting fastener securely, but do not crush the cushion or the item inside it. After routing, check that the cable or hose is supported at appropriate intervals and cannot chafe against nearby edges.

For installation steps and routing tips, read Step-by-Step: How to Install Cable Clamps Like a Pro.
