The Ultimate Guide to Stainless Steel Cable Clamps: Sizes, Materials, and Use Cases

Cable clamps, often called P-clamps, support and protect cables or tubes when their diameter, mounting method, and quantity are correctly matched.

1. Recognize the Structure and Protective Role

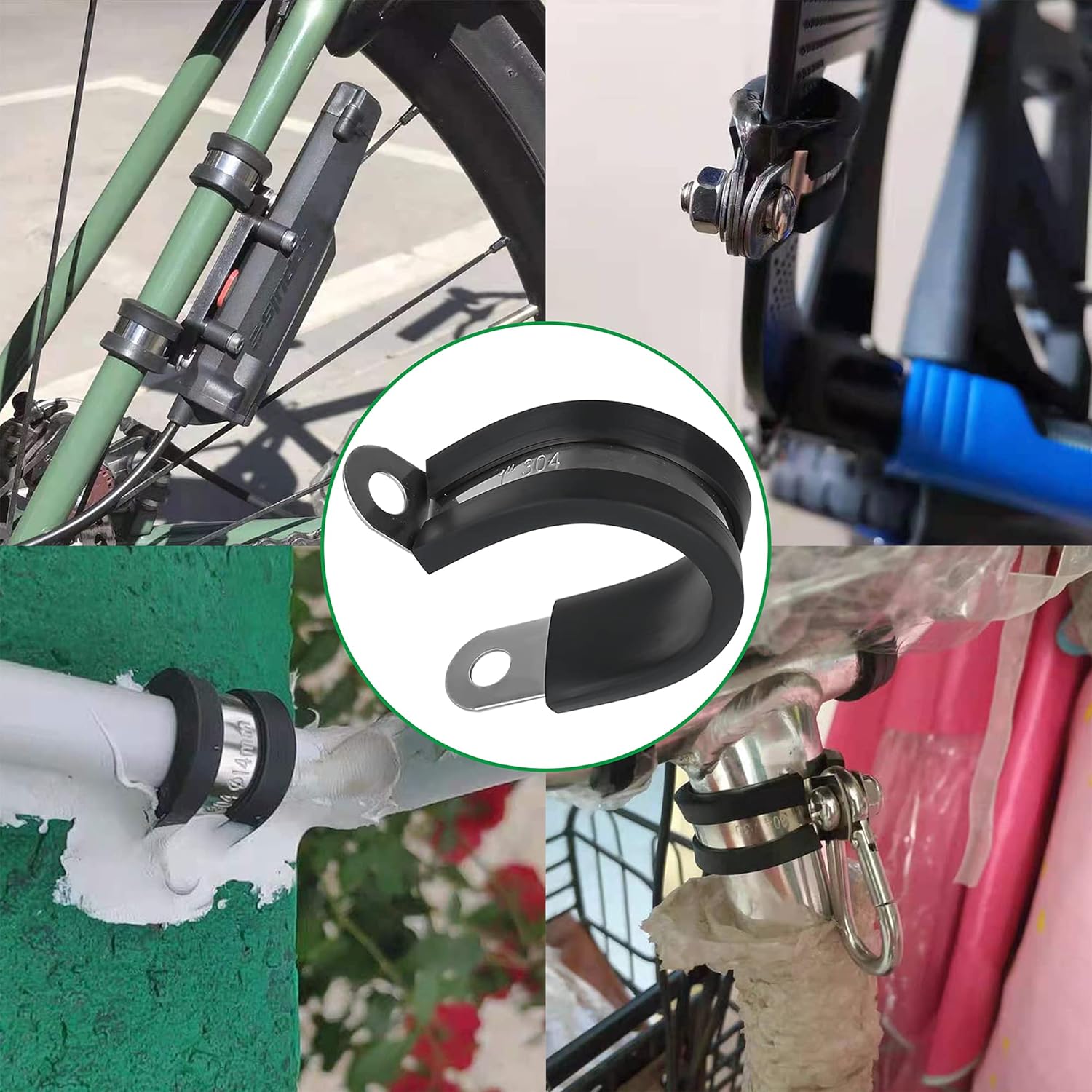

A metal P-clamp uses a mounting hole and a cushioned loop to support a cable or tube. It is a support device, not a hose-sealing clamp or a substitute for strain relief.

2. Choose Materials and Cushioning by Use Case

Check the environment, temperature, vibration, corrosion exposure, cable jacket, and mounting surface. Rubber cushioning can protect contact surfaces but does not establish electrical certification.

Rubber-Cushioned Cable Clamps — Single-Size Packs

Choose a listed clamp diameter for repeated cable or tube supports of the same size. Check the mounting hole, pack quantity, and required fixing hardware.

Choose a Cable Clamp Size

3. Measure the Cable or Finished Bundle

Measure the finished outside diameter at the support point, including sleeves. The clamp should hold without crushing insulation or allowing excessive movement.

4. Select the Mounting Method and Size Mix

Confirm screw, bolt, rivet, or other approved mounting method, the clamp hole, and hardware compatibility. For multiple bundle sizes, compare each included diameter and quantity.

OURU Cable Clamps Assortment Kit

A boxed selection of rubber-cushioned 304 stainless steel clamps for projects with different cable or tube diameters. Review the selected kit size breakdown.

Compare Assortment Kits

5. Plan Support Spacing and Quantity

Plan fixed points around bends, vibration, access needs, and cable weight. Do not choose a larger pack before calculating the locations.

6. Install Without Damage

Align the clamp with the route, preserve bend radius, and tighten the fastener only enough to secure the support. Keep cables away from heat, sharp edges, and moving parts.

Insulated Cable Clamp Assortment

Compare the selected 72 or 125 piece size breakdown for compatible multi-diameter projects. Cushioning is not an electrical-insulation certification.

View Size Breakdown

7. Inspect and Maintain the Run

Check for chafe, loosened hardware, crushed insulation, and blocked service access. Reinspect vibration-prone or outdoor locations.

8. Buying Guide and FAQs

Confirm size, material, mounting method, and quantity before ordering. For help choosing diameter, read How to Choose the Right P-Clamp Size (with Chart & Calculator).

Bulk P-Clamp Packs

For repeated same-diameter supports after the number of mounting points is calculated. Check clamp diameter, pack count, and required fixing hardware.

View Bulk P-Clamp Packs
