Before you begin installing cable clamps, gather the following tools and materials:
Cable Clamps (Assortment): Various sizes/types of clamps for wire management – e.g. P-clamps, adhesive cable clips, etc. (An assortment kit like the Ouru Cable Clamps Assortment Kit — Boxed 50/150/280 pcs offers multiple steel cable clamps with rubber cushion for different diameters.)
Screws and/or Rivets: Proper size screws (e.g. self-tapping metal screws or wood screws) for screw-mounted clamps, and pop rivets for rivet-mounted clamps.
Screwdriver or Drill: To drive screws or set rivets (a drill with appropriate bits can speed up installing screw-on wire clamps).
Drill Bits: If needed, for drilling pilot holes or rivet holes (match bit size to screw or rivet diameter).
Adhesive Bases/Clips: If using adhesive-mounted cable clips, have the sticky pads or bases ready (often included with self-adhesive cable clamps).
Cleaning Supplies: Rubbing alcohol or degreaser and a clean cloth to prep surfaces for adhesive clamps.
Measuring & Marking Tools: Tape measure or ruler and a pencil/marker to plan clamp positions on your cable run.
(Optional) Wall Anchors: If mounting clamps on drywall or other weak surfaces, use drywall anchors for screws to ensure the electrical cable clamps hold firmly.
Like any pro installation, take time to plan your cable routing before mounting any cable clamps. Think about where the cables need to go and how to make the run neat and safe. Measure the path and space the clamps evenly along the route. A good rule of thumb for many projects is to install a clamp about every 12–18 inches for lighter wiring, with heavier cables or bundles needing closer support. In fact, electrical codes suggest securing cables within 12 inches of any electrical box and roughly every 4½ feet along the run to prevent sagging. While your DIY project might not require code compliance, following these guidelines ensures your wires won’t droop or strain connectors over time.
When planning, also consider the type of clamp best suited for each section. For example, use nylon cable clamps (plastic clamps) or adhesive mounts for small cords on smooth surfaces, and stainless steel cable clamps (cushioned P-clamps) for engine bays or outdoor runs where durability is keyourushop.comourushop.com. Avoid routing cables near high-heat sources like engine exhausts or heating pipes if using plastic clamps – in such cases, metal or rubber-cushioned clamps are a better choice. Make sure to leave a little slack at key points (e.g. near connectors or moving parts) so the cables aren’t pulled too tight; your clamps should secure the cable while allowing slight flex. Mark the planned clamp positions with a pencil. A bit of planning now will make the installation of your wiring clamps go smoothly and look professional.
Read more: The Ultimate Guide to Stainless Steel Cable Clamps: Sizes, Materials, and Use Cases
Now that you have a plan and all necessary tools, let’s install those cable clamps. We’ll cover three common methods: screw-mounted P-clamps, rivet-mounted clamps, and adhesive-backed clips. Choose the method (or combination) that best fits your project.

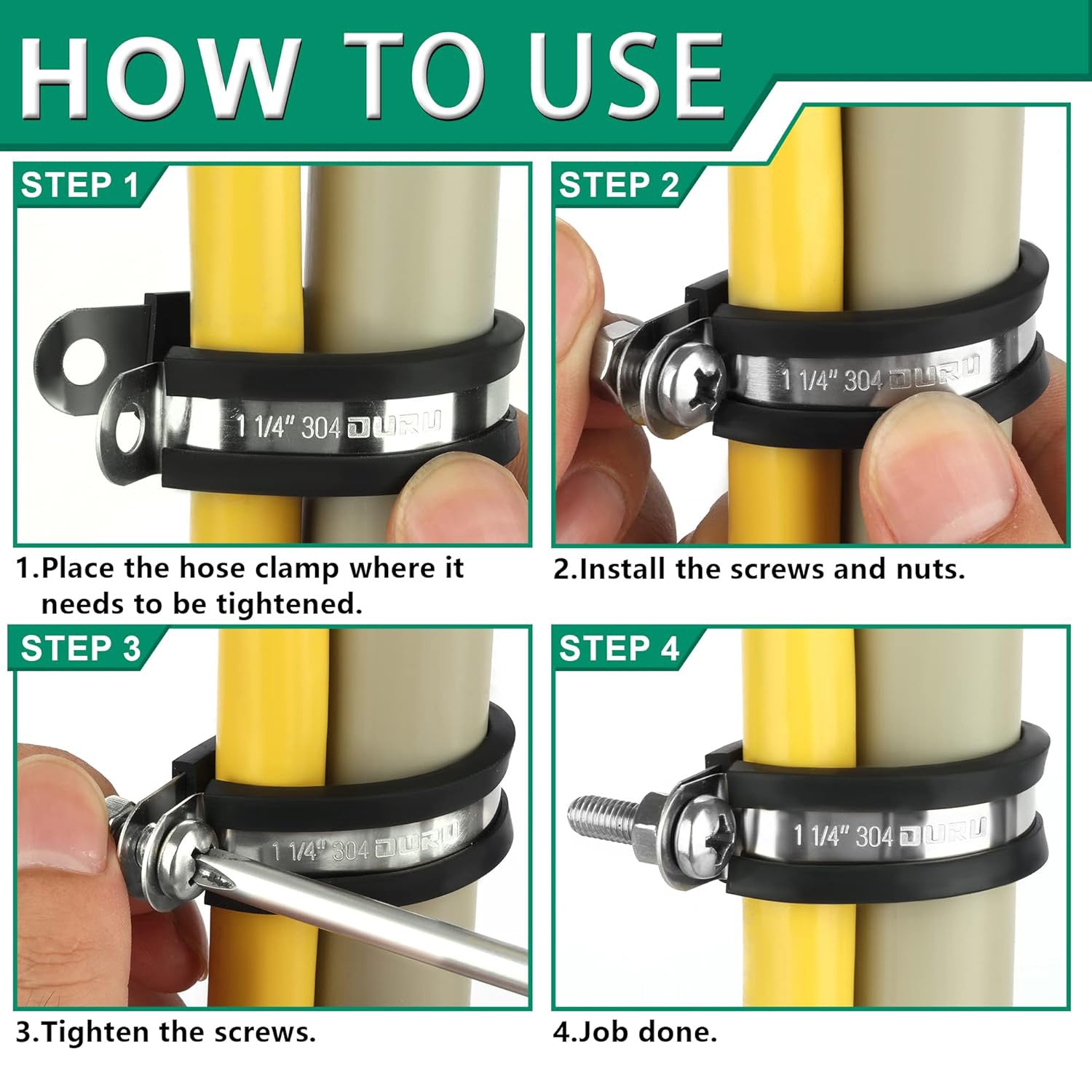

This method uses the classic P-style clamp (a metal or plastic clamp shaped like the letter “P” when closed) secured with a screw. It’s ideal for permanent installations where you can drive a screw into a mounting surface (wood, metal, etc.).
Position the Cable and Clamp: Hold the cable (or bundle of wires) in the desired position and wrap the P-clamp around it. Align the clamp’s mounting hole against the surface. Ensure the clamp is the correct size for the cable – it should be snug but not choking the wire. Mark the hole position on the surface with a pencil.
Drill a Pilot Hole (if needed): For harder materials like wood or metal, drilling a small pilot hole at the marked spot makes it easier to drive the screw and helps prevent material splitting. Choose a drill bit slightly smaller than the screw’s core diameter.
Fasten the Clamp with a Screw: Place the P-clamp back over the cable and line up the holes. Insert the screw through the clamp and into the pilot hole. Using a screwdriver or drill, drive the screw in until the clamp is secure. Do not overtighten – the clamp should be firm enough to hold the cable, but overtightening can crush the cable or damage its insulation. A good practice is to tighten until the cable doesn’t slide, but you can still rotate it slightly by hand if you try.
Repeat for Additional Clamps: Continue along your cable run, installing P-clamps at the planned intervals. Double-check alignment and spacing as you go so that the cable runs straight and neat. If mounting on a wall (drywall), be sure to anchor the screws properly (use wall anchors if there’s no stud) so the clamp holds tight.
Pro Tip: Using cushioned P-clamps (with a rubber lining) is great for automotive or machinery projects. The rubber padding on these wire cable clamps absorbs vibration and protects the cable’s insulation from chafing, which is why they’re often used in cars, bikes, and HVAC installations.
Rivet-mounted clamps are common in automotive and metal fabrication projects where you might not have rear access for a nut and bolt, and a screw might vibrate loose. A blind pop rivet provides a secure, permanent fastening for your cable clamp on metal surfaces.
Mark and Drill the Hole: Just like with screws, start by positioning the cable clamp (often a P-clamp or a flat loop clamp) where you want it. Mark the hole location on the metal surface. Use a drill bit that matches the diameter of your rivet. Drill a clean hole through the surface. Remove any burrs around the hole (you can use a deburring tool or sandpaper) so the clamp sits flush.
Insert the Rivet and Clamp: Place the P-clamp around the cable and align its hole with the drilled hole. Insert the pop rivet through the clamp and into the hole. Make sure the rivet’s flange (head) is on the clamp side, and the rivet’s mandrel (stem) is sticking out, ready for the rivet gun.
Set the Rivet: Attach your rivet gun to the mandrel. Squeeze the rivet gun handles – this will pull the mandrel and expand the rivet body behind the panel, locking the clamp in place. Continue until the mandrel snaps off. The clamp should now be securely fastened. Give the clamp a little wiggle to verify it’s tight.
Repeat and Inspect: Install additional rivet-mounted clamps for wire as needed along the run. Rivets create a strong hold, so this method is excellent for high-vibration environments (vehicles, machinery) where you don’t want the clamp coming loose. Just remember that riveted clamps are not easily removed; you’d have to drill out the rivet to take the clamp off, so be certain of your placement.
Note: Rivet mounts work best on metal surfaces. Ensure you select an appropriate rivet length and diameter for the thickness of the metal and the clamp. Aluminum rivets are easier to pull and resist corrosion, while steel rivets are stronger for heavy loads.
If drilling holes is not an option, or you’re working on a desk, wall, or electronics setup where you want a quick solution, adhesive-backed cable mounts are the way to go. These typically involve a plastic base with a peel-and-stick backing, and either a built-in clip or a slot to attach a zip tie. They are great for lightweight cables (like network cords, small appliance wires) and offer a damage-free installation.
Prepare the Surface: Adhesive cable clamps (and tape) stick best to smooth, clean surfaces. Before you apply the clamp, clean the area with rubbing alcohol to remove dust, grease, or any residue. Let it dry completely. Skipping this step is a common reason adhesive mounts fall off later!
Plan and Peel: Plan the layout just as you did before – mark where each adhesive clip will go, keeping them evenly spaced and aligned. Once ready, peel off the backing paper to expose the sticky pad.
Stick the Clamp Base: Press the adhesive clamp firmly onto the surface at the marked spot. Hold pressure for about 10–30 seconds to ensure the adhesive makes solid contact. If the clamp has a separate clip, you can attach the clip part to the base now (some have a little tab or locking mechanism).
Wait and Secure Cables: For the strongest bond, give the adhesive some time to cure – about an hour is recommended before adding the cable’s weight. After waiting, route your cable into the clip or through the tie mount. Close the clip or fasten the zip tie to secure the wire.
Test the Hold: Gently tug the cable to make sure the clamp stays put. If it pulls loose, you may need a stronger adhesive or a different mounting method. Also, avoid overloading one adhesive clip with too many or too heavy cables – spread out the load using multiple clips. Adhesive mounts are best for modest loads and electrical cable clips management, not heavy-duty applications.
Tip: Adhesive clamps work great on clean plastic, metal, or painted walls. However, they may not adhere well to rough or porous surfaces (like unfinished wood or dusty concrete). In those cases, a screw-mounted clamp will be more reliable. Also, extremely hot or cold environments can weaken adhesive over time, so consider mechanical clamps if you need a more permanent solution in such conditions.
Read more: The Ultimate Guide to Stainless Steel Cable Clamps: Sizes, Materials, and Use Cases
Even seasoned DIYers can make mistakes when installing cable clamps. Here are some common pitfalls to watch out for, and how to fix or avoid them:
Choosing the Wrong Clamp Type/Size: Using the wrong kind of clamp can lead to poor results. For instance, a cheap plastic clip might break under the weight of a thick hose, while a metal hose clamp isn’t suitable for delicate wires. Fix: Match the clamp to the job – use robust metal cable clamps (preferably stainless steel) with rubber cushioning for heavy or outdoor use, and save the small nylon cable clamps or adhesive clips for light-duty indoor wiringourushop.comourushop.com. Always pick a clamp size that fits the cable diameter snugly (but not so small that it pinches the insulation).
Overtightening or Crushing Cables: It’s a classic mistake – tightening a clamp or zip tie as much as possible. Over-tight clamps for wires can damage insulation or even break the conductor. Fix: Secure each clamp just enough to hold the cable in place. The cable shouldn’t slip, but it also shouldn’t be deformed or flattened by the clamp. Remember, “snug, not strangled” is the mantra – a clamp should support the cable without crushing it. If you see the cable jacket bulging or hear crackling, loosen the clamp a bit.
Inadequate Clamp Spacing: Using too few clamps or spacing them too far apart can cause cables to sag or put stress on connection points. This is not only sloppy-looking but also potentially unsafe if wires pull out of terminals. Fix: Add enough wire clamps to support the run. As noted, a clamp every 12–18 inches is a good general guideline, and you should always have a strap or clamp within a foot of electrical boxes or plugs to relieve strain. If a cable still sags, install an additional clamp at the midpoint. There’s no harm in using an extra clamp for long stretches.
Poor Surface Prep for Adhesive Clamps: Simply sticking adhesive cable clips onto a dusty or oily surface and hoping for the best is asking for trouble. These can peel off quickly if not applied right. Fix: Always clean the mounting surface thoroughly and let it dry before applying self-adhesive cable clamps. Press them on firmly and give the adhesive time to cure. If you need a more secure hold or are mounting to a rough surface, switch to a screw-in clamp or use a mounting plate with screws.
Not Using Anchors on Weak Materials: Screwing a clamp into drywall or thin paneling without an anchor or backing can lead to the clamp ripping out under tension. Fix: When attaching electrical cable clamps to drywall, plaster, or other hollow materials, use appropriate wall anchors or toggle bolts. This spreads the load and keeps the clamp tight. Alternatively, try to align clamps over studs or other solid structures. For sheet metal, consider rivet or nut-and-bolt for a stronger attachment if a plain screw is wiggling loose.
Ignoring Cable Slack and Movement: If you clamp a cable drum-tight with no slack, you risk connectors pulling out or wires snapping when there’s movement or thermal expansion. Fix: Leave a little service loop or slack especially near endpoints or moving parts (e.g., hinged panels, engine-mounted devices). This way the cable has room to flex without straining. Also, separate different cable types when routing – don’t cram a power cable and a data cable in the same clamp if you can avoid it, to reduce interference (use separate cord clamps for each) and make maintenance easier.
By avoiding these mistakes, you’ll ensure your cable clamp installation is safe, professional, and durable. If you ever notice a clamp loosening or a cable wear issue down the line, take the time to fix it – a secure wiring clamp today can prevent accidents or equipment damage tomorrow.
Installing cable clamps like a pro is all about using the right tools, proper planning, and attention to detail. With the step-by-step methods outlined above, a DIY enthusiast can confidently mount clamps for cables to organize and protect any wiring project – whether it’s tidying up home theater cords or outfitting a vehicle with new wiring harnesses. By choosing quality clamps for wire (like sturdy cushioned P-clamps or reliable adhesive mounts), spacing them correctly, and avoiding common errors, you’ll end up with a clean, safe, and long-lasting cable setup. Remember, the goal is a neat result that keeps wires secure but not stressed. Now grab that clamp assortment and get to work – your cables will thank you for it!
