Installing cable clamps on a wire rope is a straightforward process, but doing it correctly is crucial for safety and reliability. Cable clamps (also known as wire rope clips or U-bolt clamps) are common hardware used to form loops or secure the ends of wire ropes in rigging, construction, and other applications. In this Ouru guide, we'll explain why and when to use cable clamps, how to choose the right size and quantity, give a step-by-step installation tutorial, and highlight common mistakes to avoid.
Read more: The Ultimate Guide to Stainless Steel Cable Clamps: Sizes, Materials, and Use Cases
Cable clamps provide an easy, adjustable way to terminate or join wire ropes without special equipment. They are used to form load-bearing loops (eyes) at the end of cables or to connect two wire ropes together for a splice. For example, you might install cable clamps to create an eye on a guy wire, fix a loop for a winch cable clamp on a hoist, or set up perimeter cable railings on a jobsite. Because they can be installed in the field and reused, wire rope clamps for cable are popular for both temporary and permanent solutions.
When choosing a clamp type, consider the application’s load and safety criticality. Forged steel cable clamps are intended for critical, heavy-duty applications (overhead lifts, support lines, etc), whereas malleable (cast-iron) cable clamps should only be used for light-duty purposes like handrails or fencing. As a rule of thumb, if a connection is supporting a critical load or could cause injury or property damage upon failure, always use forged (or precision cast) clamps rather than malleable clips. Cable clamps come in various materials as well: galvanized or stainless steel cable clamps resist corrosion outdoors, while plastic or nylon cable clamps are used for lighter electrical wiring tasks.
Note: The term cable clamp can also refer to other clamp styles used for cable management (for example, cushioned P-clamps, plastic electrical cable clips, or cord clamps for routing wires). Here we are focusing on U-bolt wire rope clamps for securing wire rope ends.

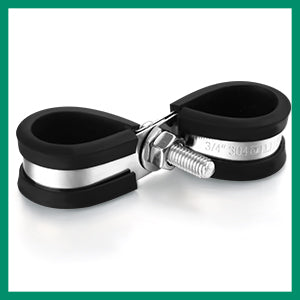

Using the right size and number of cable clamps is essential for a safe hold. Cable clamp sizing is simple: the clamp size must match the diameter of your wire rope. For example, use a 1/4 inch cable clamp on 1/4″ rope, a 3/8 cable clamp on 3/8″ rope, and so on. If the clamp is too large or too small for the cable, the rope may slip out under load. Quality clamps will list the compatible cable size (in inches or mm) on the packaging or even on the clamp itself. When in doubt, consult the manufacturer’s chart or keep an assortment of common sizes on hand. For instance, the Ouru Cable Clamps Assortment Kit (50/150/280 PCS) comes with a range of wire cable clamp sizes from 1/8″ up to 2″, so you’ll always have the right fit. This kit includes robust 304 stainless metal cable clamps with rubber cushioning (cushioned P-clamps), which are great for securing cables, hoses, or wiring in various projects.
Equally important is using the recommended quantity of wire clamps for your rope size. Don’t assume one clamp will do the job – using too few can lead to slippage or failure. As a general guideline, use at least two cable clamps for smaller diameters, and three or more clamps for larger cables to safely secure a wire rope loop. For example, a 3/8″ wire rope typically uses two clamps, a 1/2″ rope uses three clamps, and a 3/4″ rope may need four clamps for a secure termination. Always follow the clip manufacturer’s recommendations on the minimum number of clamps, and allow enough “turnback” length of rope (the dead-end tail that folds back) so that all clamps can be installed with proper spacing along that section.
Follow these step-by-step instructions to install U-bolt cable clamps on a wire rope loop safely:
Prepare the rope and tools: Measure and mark where you will form the loop (eye) in the wire rope. If you need to cut the rope to length, wrap the cut spot with tape before cutting to prevent the strands from fraying. Gather the correct size and quantity of cable clamps, a wrench or socket for the clamp nuts, and a torque wrench for final tightening. If you plan to make an eye, have a matching-sized thimble ready (a metal thimble preserves the loop shape and protects the rope from wear).
Form the loop: Bend the wire rope back onto itself to create the desired loop size. If using a thimble, insert it into the loop so the rope fits around it snugly. Ensure you leave a sufficient tail (dead end) of rope beyond the loop – this tail is where the clamps will be installed.
Attach the clamps: Begin by installing the first cable clamp on the dead end about one clamp’s width from the tip of the rope’s tail (with the U-bolt over the dead end and the saddle on the live side). Next, add the second clamp near the loop (or thimble) on the live side and snug it up. If a third or more clamps are required for your rope size, space them out evenly between the first two clamps. All clamps must face the same orientation – keep every saddle on the live (load-bearing) side (never on the dead end), and do not alternate the U-bolt direction on different clamps. Tighten the nuts on each clamp evenly until each clamp is gripping the rope firmly (you will fully tighten to torque in the next step).
Tighten and torque: Go back and tighten all the clamp nuts to the specified torque using a torque wrench. It’s best to alternate between the two nuts on each U-bolt as you tighten, to apply even pressure. Proper torque is critical – over-tightening can crush or damage the rope, while under-tightening can allow the rope to slip through. Make sure the rope isn’t getting flattened excessively under the clamps. Each clamp should be secure and the nuts should be fully threaded onto the U-bolt, but avoid overtightening to the point of deforming the wire strands.
Load test and re-check: Apply an initial load to the rope assembly (ideally equal to or greater than the expected working load) to set all the connections. This seats the clamps under realistic tension. After this first load, re-tighten all the clamp nuts to the recommended torque, since the nuts may loosen slightly as the rope settles. In accordance with good practice, continue to monitor the clamps periodically during use. If you notice any loosening, tighten the nuts again. It’s wise to inspect and re-check your wire rope clamps regularly, especially for critical or long-term installations.
Even with quality hardware and clear instructions, mistakes can happen. Here are some common cable clamp installation errors to avoid, as noted by rigging experts:
Using too few clamps: Always use the minimum number of clamps specified for the rope diameter (or more). Using fewer than recommended will reduce the holding strength and could let the rope slip out.
Incorrect clamp spacing: Clamps should be spaced apart along the dead-end tail of the rope, not bunched too close together. Follow guidelines (usually a distance of several rope diameters between clamps) so that the rope is gripped evenly along the tail.
Saddle on the wrong side: This is the classic error of reversing the clamp orientation. Placing the U-bolt on the live end and the saddle on the dead end (in other words, “saddling the dead horse”) dramatically weakens the connection. Always put the saddle on the live side of the wire rope.
Improper tightening (torque): Not tightening the clamp nuts enough can allow slippage, while over-tightening can damage the threads or crush the rope. Use a torque wrench and tighten each wire clamp evenly to the specified torque. Also, re-torque the nuts after the first load and periodically thereafter, since vibration or heavy use can loosen them.
Inadequate turnback length: Not providing enough tail (turned-back rope) through the clamps will result in a weaker termination. Make sure you turn back the recommended length of rope when forming the loop so all clamps have full grip on the rope.
Wrong type of clamp for the job: Using a malleable (cast) wire cable clamp for a high-load or overhead job is dangerous. Use drop-forged steel wire cable clamps for critical applications. Save the malleable or plastic cable clamps for non-critical, light-duty scenarios.
Mismatched size: Ensure the clamp’s size exactly matches your cable diameter. A clamp that is too large or too small won’t grip properly – for example, do not use a 1/2″ clamp on a 3/8″ wire rope or vice versa.
Neglecting regular inspections: Bolts can loosen over time, so periodically check and re-tighten your clamps as needed.
Read more: The Ultimate Guide to Stainless Steel Cable Clamps: Sizes, Materials, and Use Cases
Summary: By following these guidelines and avoiding the mistakes above (and using quality hardware like Ouru’s durable stainless clamps), you can ensure your wire rope connections remain safe and strong. Properly installed wire rope cable clamps can achieve about 80–90% of the rope’s original breaking strength, which is more than enough for most applications.
