Before you touch a screwdriver, figure out what you’re holding—each clamp type adjusts differently:
Worm-gear clamp (a.k.a. worm drive): slotted band with a screw that advances a captive nut. Most common on household and automotive tube clamps. Good for general service; choose lined versions for soft silicone.
Spring (constant-tension) clamp: a spring steel ring with two “ears.” You squeeze the ears to open, then release to clamp. Great for thermal cycling (radiator, heater hoses).
T-bolt clamp: a heavy band plus a bolt and nut; used on high-pressure charge-air and large-diameter hoses. Higher, more even clamping load than basic worm-gear tube clamps.
How to tell quickly: Worm-gear has a screw head; spring clamp has two tabs/ears; T-bolt has a bolt/nut “bridge.” If the band interior is smooth with an inner shield, it’s a lined worm-gear—safer for soft silicone and EPDM hoses because it reduces extrusion into slots.
If your current clamp is stripped or the wrong style, swap in a fresh one from the Ouru Stainless Hose Clamp Kit (30–175 pcs, multiple sizes).
Correct placement prevents leaks and avoids liner damage:
Sit the clamp behind the fitting’s bead or barb, not on the bead and not at the very hose end. The bead is designed as a mechanical stop; clamping just behind it resists blow-off and seals on a round land.
Keep the band square to the hose. If the band cocks at an angle, one edge digs in while the opposite edge floats, causing weeping and early hose damage. (Manufacturers emphasize keeping the band perpendicular during tightening.)
Size to the installed OD. Measure the hose on the fitting, then choose a clamp whose range places you near its mid-span—not at the extreme small end. That ensures plenty of adjustability for re-torque after heat cycling.
No-damage spacing: Leave ~¼–½ the band width from the hose end so the band bears on solid material, not on the unsupported tip. (On barbed push-ons, a position 1–2 mm behind the last barb is typical.)
Not sure which size you’ll need on a project? The Ouru multi-size kit makes sizing easy across common tube clamps.
Pre-set by hand: Snug the screw until the band just contacts the hose all around.
Square it up: Confirm the band is perpendicular to the hose and centered behind the bead. Re-seat if needed.
Tighten in small increments: Turn the screw a quarter-turn at a time and watch the band—stop if the rubber “bulges” or the band edge begins to imprint the cover.
Torque cues: Manufacturers publish maximum or recommended tightening torque; for example, Oetiker’s worm-drive data sheets specify clamp-specific torque ceilings—do not exceed them; over-torque can strip the screw or cut the hose.
Optional upgrade for soft hoses: Use a lined worm-gear to avoid the slots imprinting or extruding the silicone under load.
Select the right diameter: Choose a clamp sized for the hose OD on the fitting (they’re designed to sit near a target diameter).
Squeeze and slide: Compress the ears with pliers, slide the clamp behind the bead, then release slowly to let it seat.
Reposition if needed: Re-compress, rotate, or move slightly; the spring takes up thermal expansion and contraction automatically, which is why these shine on engine-bay tube clamps.
Place behind the bead and ensure there’s clearance for the bolt housing.
Tighten the nut evenly: Go a half-turn at a time; verify the band remains parallel to the hose.
Follow the maker’s torque spec: T-bolts carry higher loads; exceeding spec risks band distortion or nipple damage. Many technical manuals and charts provide nominal ranges—always defer to the clamp’s own data.
Need lined worm-gear and standard sizes in one box? Check the Ouru kit for a tidy selection of stainless tube clamps.
Good sign: A uniform band imprint and a dry joint under low pressure.
Bad signs: Band edge cutting, hose cover cracking, or the band visibly “walking” as you tighten. Back off, re-square, and try again.
Torque limits exist: Clamp makers publish maxima (example: Oetiker worm-drive sheets list specific max tightening torque by series). Use a torque screwdriver/nut driver where possible, and never exceed those limits.
Soft hoses = lined bands: For silicone radiator/coolant lines, a lined worm-gear (smooth inner shield) reduces cold-flow and slot extrusion—recommended by clamp manufacturers for soft elastomers.
Pair your tube clamps with a small torque driver and keep an assortment handy with the Ouru kit.
Dry wipe & recheck alignment: Make sure the band is still square after tightening.
Pressure or fill test: Run at low pressure first (or idle temp), then inspect for weeps at 360°.
Heat-soak and re-torque: After the first full heat cycle, materials relax. It’s common practice to re-check worm-gear and T-bolt clamps and apply a small additional snug only if needed. Spring clamps self-compensate. Many installation guides and service manuals call out a post-cycle check.
No-damage repositioning: If you must move a clamp, fully relax it first (back out the worm-gear, compress the spring, or loosen the T-bolt), slide it to the new spot behind the bead, then retighten. Don’t “drag” a tight band over the hose—this scrapes the cover and seeds leaks.
When in doubt, start fresh—replacing a scarred clamp with a new stainless unit from the Ouru assortment prevents repeat callbacks.
Beaded or barbed fittings are designed for clamps; smooth nipples without a retention feature are more prone to slip. Always try to clamp just behind a bead/barb.
Material match: On soft silicone coolant lines, favor lined stainless steel clamps; on hard rubber or reinforced PVC, standard worm-gear may be fine; on high-boost charge air, reach for T-bolts.
Size range reality: Picking a clamp whose working diameter puts you near the middle of its range yields better load distribution and room for later tweaks.
Stock one organizer for everything from appliance fixes to automotive tube clamps with the Ouru kit.
Adjusting tube clamps without damage is all about the basics: identify the clamp type, place it correctly behind the bead, size it to the installed OD, and tighten to the maker’s limits while keeping the band square. Confirm with a controlled test, then re-check after a heat cycle. If you work with soft silicone or frequently cycled coolant lines, upgrade to lined stainless clamps—or spring clamps where constant tension is a win. When your assortment is thin or the old band is chewed, reload with a multi-size stainless kit so the right clamp is always in reach.

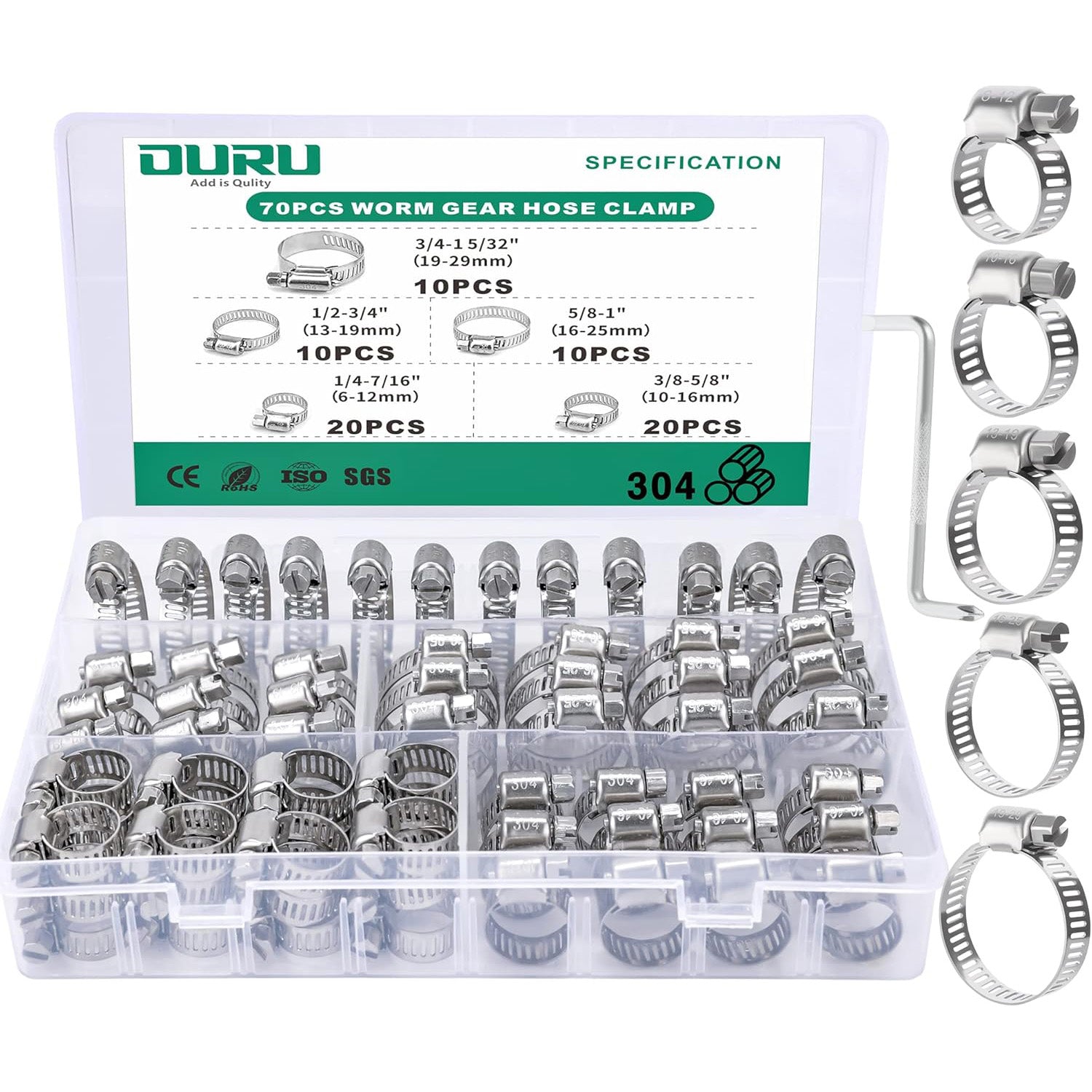

Quick upgrade: Ouru Stainless Hose Clamp Kit (multi-size, stainless)
