A hose connection fails for two main reasons: insufficient band tension or damage from over-tightening. The sweet spot is a uniform 360° seal that compresses the hose liner onto the barb/bead without cutting the cover or ovalizing the fitting. Below is a field-tested workflow you can apply to worm-gear, lined, spring, and T-bolt clamps—especially when you’re working with a stainless hose clamp.
Seat the hose fully on the barb or bead. If there’s a formed bead, that’s the primary sealing land.
Position the clamp just behind the bead—close enough to capture the thickest wall, but not hanging over the barb crest. For molded coolant stubs and plastic nipples, industry guidance places the clamp between the bead and hose end so the band bears on the thicker section and not on the bead apex.
Align the screw housing so it doesn’t foul nearby features. Keep the band square to the hose axis for even tension.
Use the right width and type. Narrow 9 mm bands suit small OD hoses; 12–12.7 mm bands spread load on larger hoses. For soft silicone or thin-wall hoses, a stainless hose clamp with a liner/shield prevents the slots from imprinting or cutting the cover.
Prep the interface. Lightly moisten the barb with compatible fluid (water for coolant, a drop of oil for fuel-rated elastomers if allowed) to reduce installation shear. Avoid RTV on standard barbs.

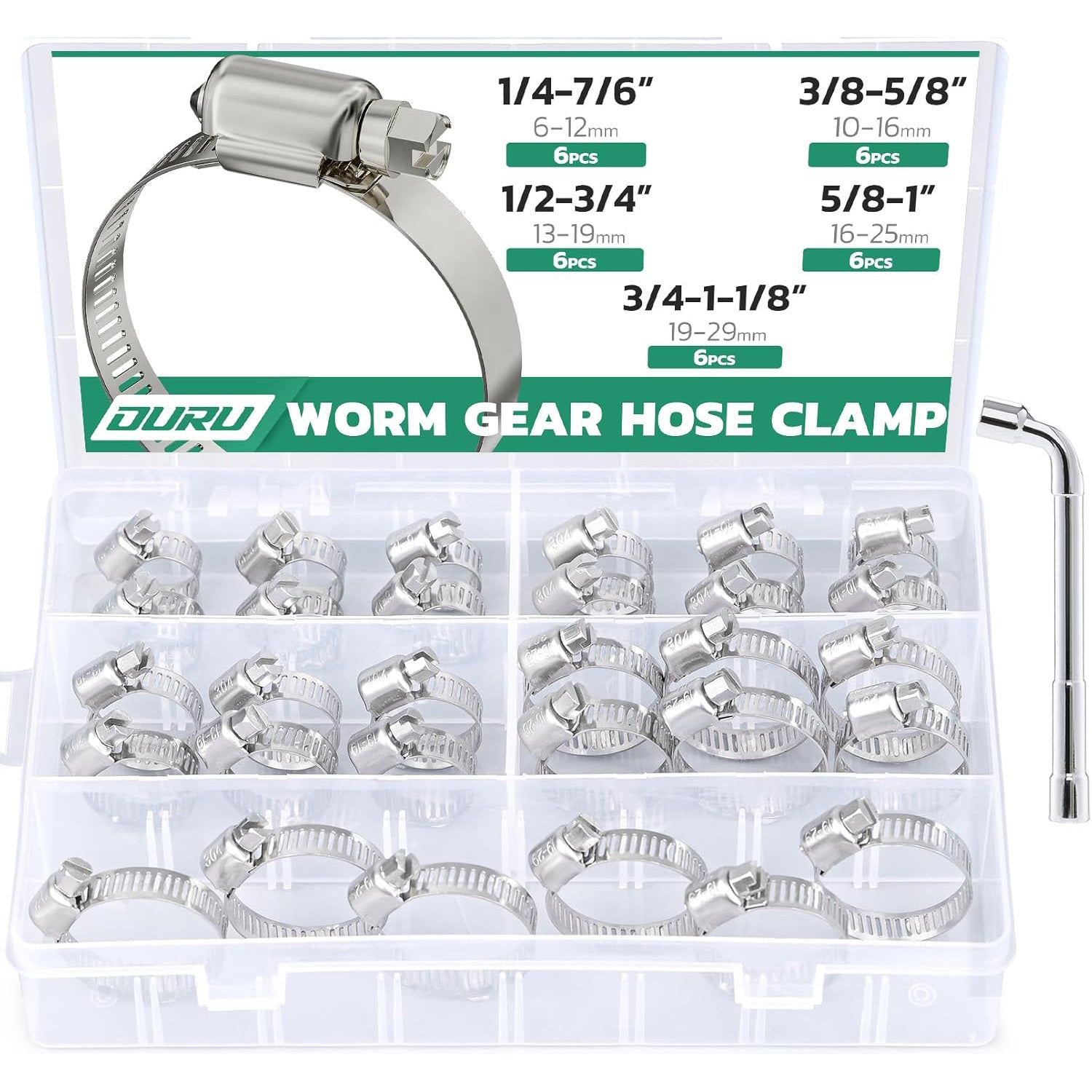

Need an organized assortment of stainless hose clamps for general service? Check the Ouru boxed kit sizes here.
Visual targets (while tightening):
Band contacts the hose uniformly around 360°; no “waves” or gaps.
Outer cover shows slight compression under the band but no radial bulge beyond the band edges.
No cover “extrusion” into the slots (switch to a lined stainless hose clamp if you see this).
Fitting remains round; no ovalization or plastic stub whitening.
Torque cues (worm-gear & T-bolt):
Published ranges vary by band width and clamp family. As a starting point from a widely used technical reference: worm-drive clamps under 1-3/4 in (open diameter) are often installed to about 25 in-lb (2.8 N·m), and over 1-3/4 in to 45 in-lb (5.1 N·m); many T-bolt clamps are set near 45 in-lb unless specified otherwise. Always check the maker’s data for your exact clamp.
Another manufacturer application note caps typical worm-drive tightening near 6 N·m (≈53 in-lb) static torque. Exceeding this risks band housing distortion and hose damage.
Working method: Run the screw down until the band just kisses the hose all around. Pause. Then tighten in small increments, watching the visual cues. Stop at the lowest torque that yields a uniform seal—don’t chase a number if the visuals say you’re done.
Spring (“constant-tension”) clamps: These use material spring rate instead of a fixed torque value to track thermal growth. Use the specified pliers to the full jaw stop; verify the band is fully seated when released.
T-bolt clamps: Use a torque wrench (in-lb scale). If the spec calls for staging (e.g., 30 → 45 in-lb), follow it.
If you need a variety of widths and diameters—from small heater lines to larger inlets—Ouru’s stainless hose clamp kit keeps band sizes at hand.
Pressure/temperature cycle & re-check:
After first heat soak and cool-down, elastomers relax and diameter can shrink slightly. Many service manuals call for a re-torque once at operating temp/after cool-down to recover tension losses and ensure a stable seal. Field bulletins tie early leaks to initial relaxation rather than gross under-torque.
On constant-tension designs, the spring compensates—often no re-torque is needed.
Leak confirmation:
Bring the system to operating pressure. For coolant: warm idle, then hold 2–3 min; look for weeping or green/white residue. For boost/air: use a regulated smoke/pressure tester to 1–2 bar as applicable.
Wipe the joint and check for fresh wetting after 5–10 minutes. No wetting = pass.
Damage audit:
Remove the clamp and inspect if you suspect over-tightening: cover scoring, embedded slot marks, or a shiny “neck” under the band indicate you went too far—switch to a lined stainless hose clamp or a wider band.
Doing multiple heat-cycles on a new build? Keep spare stainless hose clamp sizes ready so you can swap a too-short band instead of forcing the screw.
Your “right tight” depends on what you’re clamping:
Hose material:
Silicone is soft—prefer lined or shielded stainless hose clamp designs to prevent cover extrusion and micro-leaks.
EPDM/NBR coolant hose tolerates standard worm-gear bands.
Reinforced marine wet-exhaust or charge-air may need T-bolt clamps and a higher, specified torque.
Fitting material:
Thin plastic stubs deform easily; run the minimum torque that seals after heat-soak. The band should sit just behind the bead on the thickest wall section.
Thin-wall aluminum tubes can ovalize—use a wider band and moderate torque.
Environment:
Salt or chemical splash? Choose 304 or 316 stainless hose clamp hardware; 316 gives better chloride resistance.
Vibration? Two narrower bands spaced one band-width apart can outperform one very tight band—again, don’t exceed the manufacturer’s torque.
Tighten a stainless hose clamp where it works best: behind the bead, square to the hose, band width matched to diameter and hose softness. Use visual cues first (uniform 360° contact, slight compression, no extrusion), then confirm with sensible torque—~25 in-lb for small worm-drive, ~45–53 in-lb for larger bands unless your clamp’s data say otherwise. Re-check after the first heat cycle; upgrade to lined or T-bolt styles for soft silicone or high-load joints. That’s how you stop leaks without sacrificing hose life.
Stock a bench-ready assortment so you reach for the right size—not more torque. See the Ouru stainless hose clamp kit.
