A hose clamp’s fundamental job is to secure a hose over a fitting (such as a pipe barb or nipple) and prevent any fluid or air from leaking at the connection. The clamp achieves this by applying circumferential pressure around the hose, pressing it tightly against the fitting. When you tighten the clamp’s screw (or bolt), the torque you apply – a twisting force – is converted into a radial clamping force squeezing the hose. In a common worm-drive clamp (the typical stainless hose clamp with a slotted band and screw), turning the screw engages the “worm” threads with the band’s perforations, drawing the band tighter. This worm gear mechanism allows even a moderate screwdriver turn to exert a strong, uniform pressure around the hose. In essence, the tightening torque travels through the clamp’s threads and band, becoming the inward force that creates a leak-free seal.
Proper torque is critical: too little, and the clamp won’t press the hose fully, allowing gaps; too much, and you risk damaging the clamp or the hose. A well-designed hose clamp (stainless steel) will handle the recommended torque range without stripping or breaking. For example, many standard worm clamps use 5/16″ screws and can be safely tightened to around 30–45 inch-pounds of torque (smaller mini hose clamps only ~10–15 in-lb). This level of tension yields a high radial pressure that keeps hoses sealed under pressure. Always follow the manufacturer’s torque specs for a clamp – it ensures you generate sufficient clamping force to seal, but not so much as to crush the hose or strip the threads. Quality stainless steel clamps like Ouru’s are built to withstand the proper torque without deforming, so you get maximum clamping pressure from your effort. (Using an Ouru hose clamp kit means you’ll have robust 304 stainless clamps that deliver strong torque-to-clamping performance for leak-proof results – see the product here).
The actual seal of a hose connection occurs at the interface between the hose’s inner surface and the fitting’s barb (or pipe) surface, with the clamp providing the compressive force. When you tighten a clamp around a hose, it presses the hose’s flexible material into the texture of the fitting (often a ridged barb). A properly installed hose clamp ensures there is no gap between hose and fitting – the entire circumference is squeezed tightly to block any path for fluid to escape. For best results, position the clamp just behind the barb of the fitting (not on the barb’s peak). The barb serves as a mechanical lip that the hose (and clamp) can hold against; placing the clamp in the recess behind it ensures maximum sealing pressure without the clamp teetering on the barb’s slope. If the clamp is too far forward or crooked, it may not fully compress the hose around the barb, risking leaks.
Clamping pressure must be high enough to exceed the internal pressure of whatever is in the hose (coolant, fuel, air, etc.) plus create a tight seal against irregularities. However, it should not be so high that it damages the hose. An inadequately tight clamp will leave portions of the interface loose – tiny gaps through which fluid can seep under pressure. Ensuring the hose and fitting are clean and free of debris is also key, since dirt or grit under the clamp can create leak paths. The ideal scenario is a uniform 360° seal: the clamp’s band compresses the hose evenly all around, and the hose material conforms to the barb’s shape. High-quality stainless hose clamps have smooth or rolled edges that won’t cut into the hose, and some even have liners to protect soft tubing (more on “lined clamps” later). By choosing the right size clamp for your hose (one that places in the middle of its adjustment range) and tightening it correctly, you establish a reliable sealed interface.
(Ouru’s stainless clamps are designed with a smooth, burr-free band and strong locking force to maintain a tight seal on your hose interface without cutting the hose – a great choice to ensure leak-free connections.)
Hose clamps come in various designs, each working a bit differently to create clamping force. Here are the common types of hose clamps stainless steel (and other materials) and how they work:

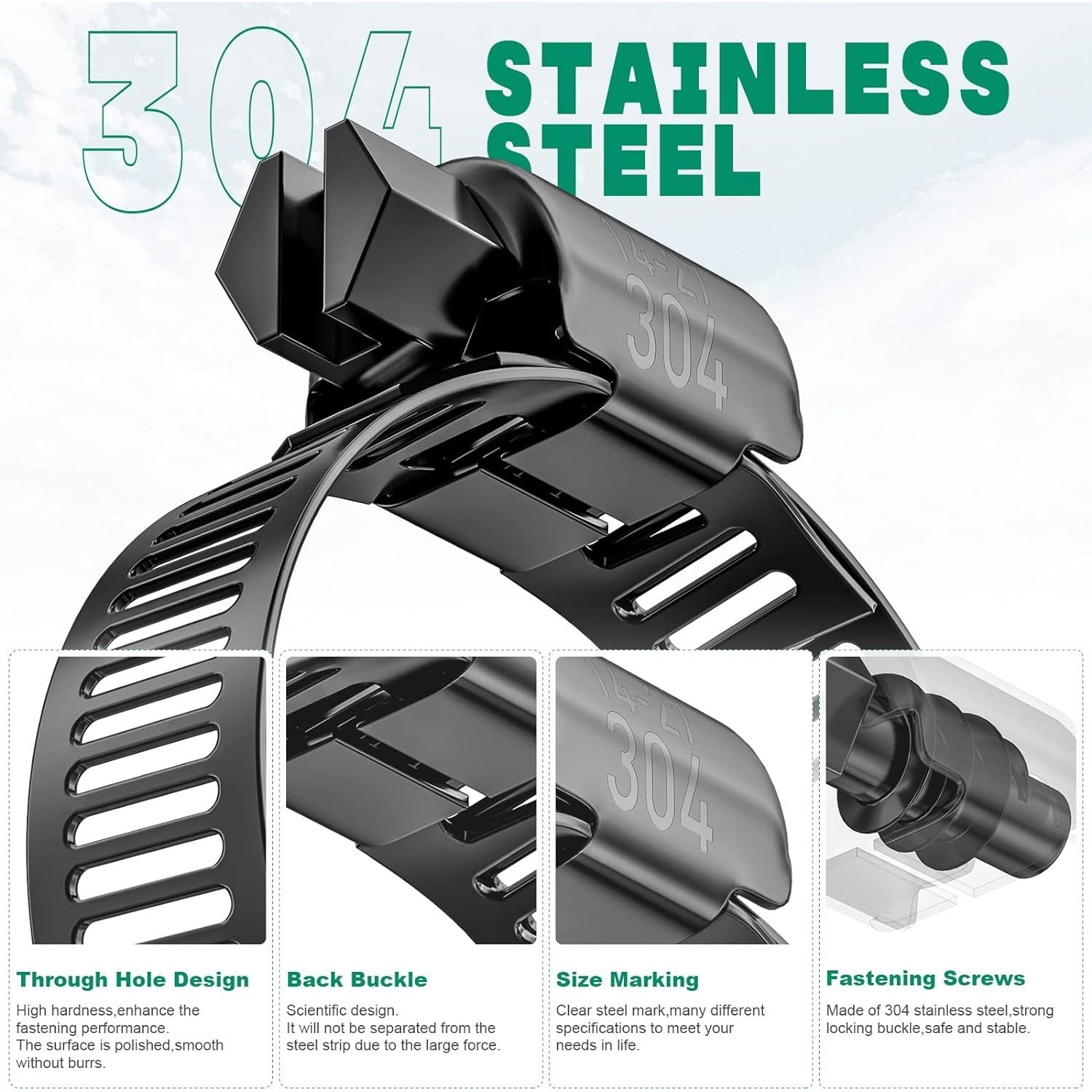

Worm-Gear Clamps (Worm Drive Clamps): This is the most familiar type – a metal band (often a stainless steel hose clamp) with a series of perforations and a captive screw housing. As you turn the screw, it acts like a worm gear, pulling the band’s threaded end through the housing. The band tightens around the hose or tube in a concentric fashion, applying even pressure. Worm gear clamps are versatile and adjustable over a range of sizes (one clamp can fit various hose diameters by tightening or loosening). They provide a secure grip and are easy to install with a screwdriver or nut driver. Most worm-drive clamps are made of galvanized or stainless steel (hose clamp stainless) for strength and corrosion resistance. However, their perforated band can bite into very soft hoses (like silicone) – for those, a lined clamp or different type is recommended. Worm clamps are widely used in automotive, plumbing, and general applications – for example, as radiator hose clamps, coolant hose clamps, fuel line clamps, and more. (Ouru’s worm gear hose clamps feature 304 stainless steel bands and screws for durability, with a smooth inner surface that won’t damage your hose. In our kit, you get an assortment of worm clamps from small to large, so you’ll always have the right size on hand.)
Spring Hose Clamps (Constant-Tension Clamps): Spring clamps are made of spring steel formed into a ring (like a clip) that is slightly smaller than the hose diameter. You squeeze them open to install, and when released, they exert continuous spring force on the hose. Unlike a screw clamp, a spring clamp automatically adjusts with expansion and contraction of the hose material. This provides constant tension – as the hose warms, cools, or undergoes “cold flow” (material relaxing over time), the spring clamp maintains pressure for a consistent seal. Spring clamps are commonly found on automotive OEM applications, such as radiator and coolant hoses, fuel lines, and vacuum lines, because they reliably prevent leaks through temperature cycles. They have no screw or protruding tails, which means a lower profile and no sharp edges to dig into hoses (or nearby wires). The trade-off is that each spring clamp fits a narrower size range – you must use the correct diameter for your hose (there’s little adjustment range). Special pliers (hose clamp pliers) are often used to install or remove them in tight spaces. Overall, spring clamps are a safer option for silicone or rubber hoses prone to expansion, as they won’t loosen easily over time. (Ouru also offers constant-tension spring clamps that automatically adjust to hose changes – perfect for critical coolant hose clamps or other lines where you want a maintenance-free seal.)
T-Bolt Clamps (Heavy-Duty Clamps): T-bolt clamps use a bolt and nut tightened through a fixed “T” shaped housing on the band. They are built for high-performance applications requiring very high clamping force and a robust hold. A typical T-bolt clamp has a wide stainless steel band and a threaded bolt; when you tighten the nut, the band cinches uniformly around the hose, much like a hose coupling. These clamps provide a 360° leak-proof seal even under intense pressure or vibration. T-bolts are often all 300-series stainless steel (band, bolt, and nut) to prevent corrosion – critical in marine, industrial, or high-temperature uses. You’ll see T-bolt clamps on turbocharger or intercooler connections, heavy truck and tractor coolant hoses, and marine hoses. For example, large 3 inch hose clamps or 4 inch hose clamps in heavy equipment are often T-bolt style to handle the stress. They require a wrench or socket to tighten, allowing greater torque than a worm gear (some heavy-duty T-bolts can handle 60+ in-lbs). Despite their strength, T-bolt clamps distribute force evenly and are less likely to cut into the hose. They are an excellent choice for large diameter hoses and high-pressure lines. (If you need heavy duty stainless steel hose clamps, consider Ouru’s T-bolt clamp options – made from premium stainless steel, they deliver superior clamping force and corrosion resistance for demanding applications.)
Ear Clamps (Pinch Clamps): Ear clamps, often known by the brand Oetiker clamps, are a one-time use crimped clamp. They consist of a metal band (commonly stainless steel) with one or two “ears” – tabs that you pinch together with special pincers to tighten the band. As the ear is crimped, the diameter of the clamp reduces, permanently securing the hose. Ear clamps create a reliable, tamper-proof seal with a clean look (no screw protrusions). Many ear clamps have a stepless design, meaning the inner band is smooth 360° with no gaps or overlaps, which ensures uniform compression around the hose. This makes them excellent for achieving a truly leak-free seal on small diameter hoses or tubing in automotive fuel lines, medical gas lines, and plumbing (for instance, PEX tubing clamps often are ear style). The clamp’s deformation (the ear flattening) provides a visual confirmation that it’s properly installed. However, since they are crimped on, ear clamps are not meant to be removed and reused – you must cut them off to service the connection, and use a new clamp afterward. They also require the proper tool (ear clamp pliers or pincers) for installation. Ear clamps shine in situations where you want a low-profile clamp that won’t loosen (e.g., on fuel injection hoses or brake line clamps in OEM setups). (Ouru carries high-quality ear clamp kits and the needed crimping tools – these stainless steel clamps provide a professional, permanent seal on your hoses. They’re great when you want a compact clamp that stays put for the long haul.)
Lined Clamps (Silicone Hose Clamps): Lined worm gear clamps are a special variant of the standard worm-drive clamp designed to protect soft hoses. In a lined clamp, a smooth metal liner (or an extra band layer) is attached to the inside of the perforated band, covering the slots. This prevents the soft hose (such as silicone or thin rubber) from being extruded or sheared through the band notches as you tighten the clamp. Essentially, the liner creates a uniform pressure surface and eliminates the risk of the clamp cutting into the hose surface. Lined clamps are highly recommended for silicone coolant hoses, turbocharger hoses, or any soft-walled hose that could be damaged by a regular worm clamp’s holes. They provide a uniform seal with no leak paths, even on very pliable material (silicone tends to “cold flow” more, so a liner helps maintain a seal). Many lined clamps are all stainless steel and sometimes labeled as “silicone hose clamps” or “embossed clamps.” They install and tighten just like normal worm-drive clamps, but give you peace of mind that your expensive silicone hose won’t get sliced. If you’re working on a high-performance automotive engine or marine plumbing, using lined stainless clamps can prevent leaks and hose damage. (Ouru’s stainless steel hose clamps kit includes lined clamps ideal for soft hoses – the liner keeps your silicone or rubber tubing intact while our worm-drive mechanism applies even pressure for a zero-leak seal.)
Even the best clamp can leak if not used properly or if it’s the wrong type for the job. Here are some common reasons hose clamps might fail to seal, and how to fix or prevent each issue:
Under-Tightening (Insufficient Clamp Force): If a clamp isn’t tightened enough, it won’t develop the necessary clamping pressure to seal the hose. The result is gaps at the hose-to-fitting interface where fluid can escape under pressure. Fix: Tighten the clamp to the recommended torque. Use a torque wrench or driver to ensure you’re applying enough force. If you’re dealing with high-pressure lines, consider using two clamps side by side or a stronger clamp style. Always re-check worm drive clamps after initial run-in, as hoses may settle and clamps can loosen slightly.
Over-Tightening (Clamp or Hose Damage): It’s possible to have a leak even when a clamp is very tight – because you tightened it too much. Over-torquing can strip the clamp’s threads, bend or crack the band, or cut into the hose, any of which compromise the seal. You might not see an immediate leak, but a damaged clamp can fail prematurely. Fix: Do not exceed the clamp’s torque limit. If a clamp’s screw slips or the hose is extruding significantly, you’ve gone too far. Replace any clamp that has been deformed or stripped, as it won’t hold tension. For delicate hoses, use clamps with rolled edges or liners to protect the material from cut-through.
Thermal Cycling and “Cold Flow”: Hoses made of rubber or silicone can compress and deform under constant pressure over time – a phenomenon known as cold flow. Additionally, as temperatures change (engine heating/cooling, etc.), the hose material expands and contracts. A standard worm gear clamp that was tight at assembly may gradually lose tension as the hose material shrinks or takes a set. This leads to leaks developing after some use. Fix: After initial installation and a few heat cycles, re-tighten worm clamps to take up any slack from cold flow. Alternatively, use spring hose clamps or constant-tension clamps that automatically adjust for expansion and contraction. These will maintain a seal without manual intervention. In critical applications (e.g. coolant hoses clamps in racing engines), it’s wise to periodically inspect and tighten clamps as part of maintenance.
Wrong Clamp Size or Type: Using an ill-fitted clamp can cause leaks. If a clamp is too large for the hose (near its minimum adjustment), you might run out of travel before it truly tightens – or the band may not distribute pressure evenly (the “tongue” of the clamp can protrude too far). For example, a clamp that only just closes around a hose may only grip at a few points and then pop loose. Conversely, a clamp that’s too small obviously won’t close at all. Using the wrong type can matter too: e.g., a perforated worm clamp on a very soft hose might leak because the hose squeezes into the slots instead of compressing uniformly. Fix: Always choose a clamp size that puts your hose diameter roughly in the middle of the clamp’s range. For instance, for a 1″ (25 mm) hose, don’t use a clamp that ranges 1/2″–1″ at its max – instead choose one that spans something like 3/4″–1-1/4″ for better coverage. Ensure the band width fits the hose (not too wide for short hose barbs). Match the clamp type to the hose and application: use lined clamps for silicone, spring clamps for thermal cycling sections, and heavy-duty T-bolt clamps for high pressure large hoses (like a 2 inch hose clamp on a turbo pipe).
Improper Installation (Placement or Technique): Sometimes a leak is simply due to the clamp not being installed correctly. If the clamp is not positioned behind the barb or is angled on the hose, one side may be tighter than the other, leaving a gap. If the clamp is placed over the flare or ridge of a fitting instead of the smooth section, it can’t seal well. Also, if a clamp’s screw housing is in a hard-to-reach spot, it may not have been fully tightened. Fix: Re-position the clamp so it is square and evenly encircles the hose, about 1/4″ (6 mm) from the hose end (behind the barb). Make sure the entire band is contacting the hose; no part should hang off or sit on an un-level surface. Tighten gradually and evenly. In some cases, using two smaller clamps on a long connection instead of one wide clamp can ensure balanced pressure. Lastly, ensure any tube clamps or hose supports aren’t causing the hose to oval out – the clamp can’t seal an out-of-round hose properly.
Clamp Material Failure (Corrosion, Stretching): A low-quality clamp can be a hidden cause of leaks. Plain steel clamps may rust in wet or salty environments, which both weakens the band and prevents proper tightening. A corroded clamp might seize or break. Similarly, a clamp made of a thin material can stretch or deform under load, losing clamping force. Fix: Opt for stainless steel hose clamps (ideally 304 or even marine-grade 316 stainless for harsh environments) to avoid rust issues. Ouru’s clamps, for example, use 304 stainless steel which resists corrosion and maintains strength over time. Inspect older clamps for rust or hairline cracks. It’s good practice to replace critical clamps (like on marine fuel lines or coolant hoses) on a schedule or if they show any deterioration. Using quality clamps and replacing any suspect ones will prevent surprise leaks due to material failure.
By understanding these common issues, you can troubleshoot and prevent most hose clamp leaks. Often, the solution is as simple as using the right type and size of clamp, and tightening it correctly. In critical applications (fuel, coolant, marine plumbing), always double-check clamp installations. If a connection is prone to vibration or extreme conditions, consider an upgrade in clamp type for extra security. Remember that even “maintenance-free” connections benefit from a quick inspection – a few minutes of prevention can save you from a messy leak or downtime later!
Conclusion: In summary, a hose clamp works by turning your applied torque into a radial squeezing force that creates a tight, leak-proof seal around a hose. The effectiveness comes from a solid understanding of the force path (screw to band to hose pressure) and ensuring the clamp is properly engaging the hose-fitting interface. We explored how different clamp designs — from trusty worm gear clamps to spring, T-bolt, ear, and lined clamps — each achieve that goal in specialized ways. By choosing the right clamp for the job (and using quality hose clamps stainless steel for durability), you can avoid common pitfalls like leaks due to under or over-tightening, wrong sizing, or hose material creep. A well-made clamp, installed correctly, will keep hoses secure under pressure, whether in your car’s cooling system, a home plumbing fix, or an industrial machine. This know-how is accessible for DIYers as well as professionals: anyone can achieve a leak-free seal with a bit of attention and the proper tools.
Finally, using high-quality hardware makes a big difference. Ouru’s stainless steel hose clamps exemplify the reliability you want – they’re strong, corrosion-resistant, and designed to maintain clamping force through heat, vibration, and time. From small 1/4 inch tubing clamps to 8-inch heavy-duty pipe clamps, having the right assortment on hand means you can tackle any project confidently. With the right clamp and proper technique, your hoses will stay put and keep fluids contained. Turn that torque into peace of mind with a secure, leak-free seal!

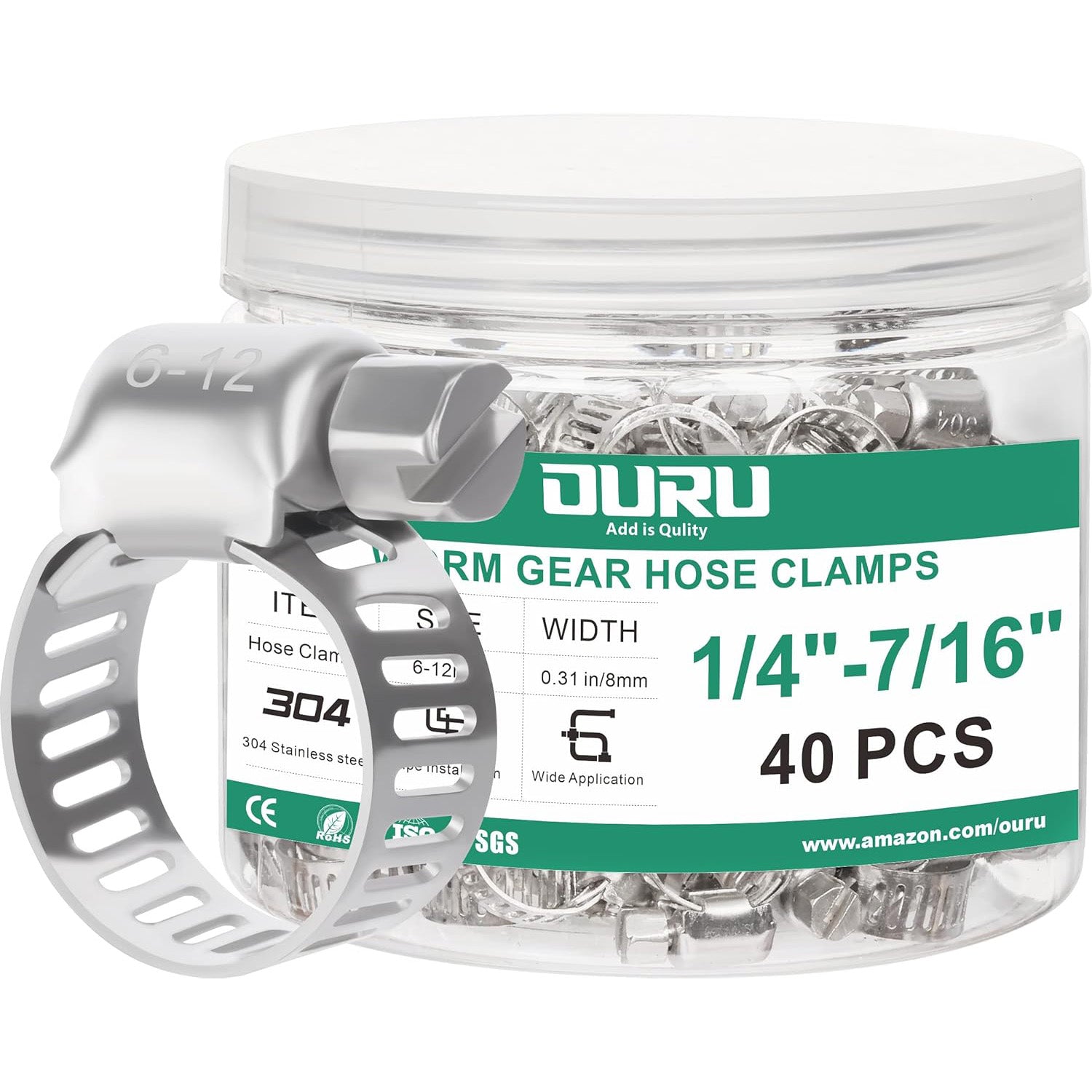

(Check out Ouru’s Hose Clamps Silver Color Kit for an all-in-one set of premium worm gear clamps covering a wide range of sizes – an ideal upgrade for any toolbox.)
