Worm Gear vs Spring Hose Clamps: Which Is Better for Your Needs?

Why Choosing the Right Hose Clamp Type Matters for hose clamps 3 inch

Not all clamps are the same. Selecting the proper clamp type affects seal reliability, ease of maintenance, and hose longevity. Worm gear clamps use a screw to tighten, letting you dial in clamping force; spring clamps rely on their built-in tension. Using the wrong type can cause leaks or damage. For example, a strong steel worm clamp on a soft vacuum hose can crush it, whereas a spring clamp might fail to grip a thick radiator hose under pressure.

The application environment also influences the choice. In high-temperature or constantly moving systems, a spring clamp’s constant tension prevents loosening as hoses expand/contract. For applications requiring frequent adjustments or very tight seals (like turbocharger lines), a worm clamp’s adjustability is valuable. Proper clamp selection (whether it’s a 6 in hose clamp on a coolant line or a 1 inch hose clamp on a fuel line) ensures leak-free performance and easier service.

Promo: When in doubt, test both types. Keep a set of Ouru clamps on hand (our kits cover from 1 inch hose clamps up to hose clamps 10") so you can choose the best clamp for each connection during maintenance.

How Worm Gear Hose Clamps Work for hose clamps 3 inch

Worm gear (worm drive) clamps consist of a metal band with a threaded screw housing (the captive screw). Tightening the screw wraps the band tighter around the hose¹. This mechanism provides a very secure and adjustable grip. You can incrementally tighten a worm clamp to achieve the exact tension needed. CarParts notes that worm clamps allow you to change their diameter by turning the screw.

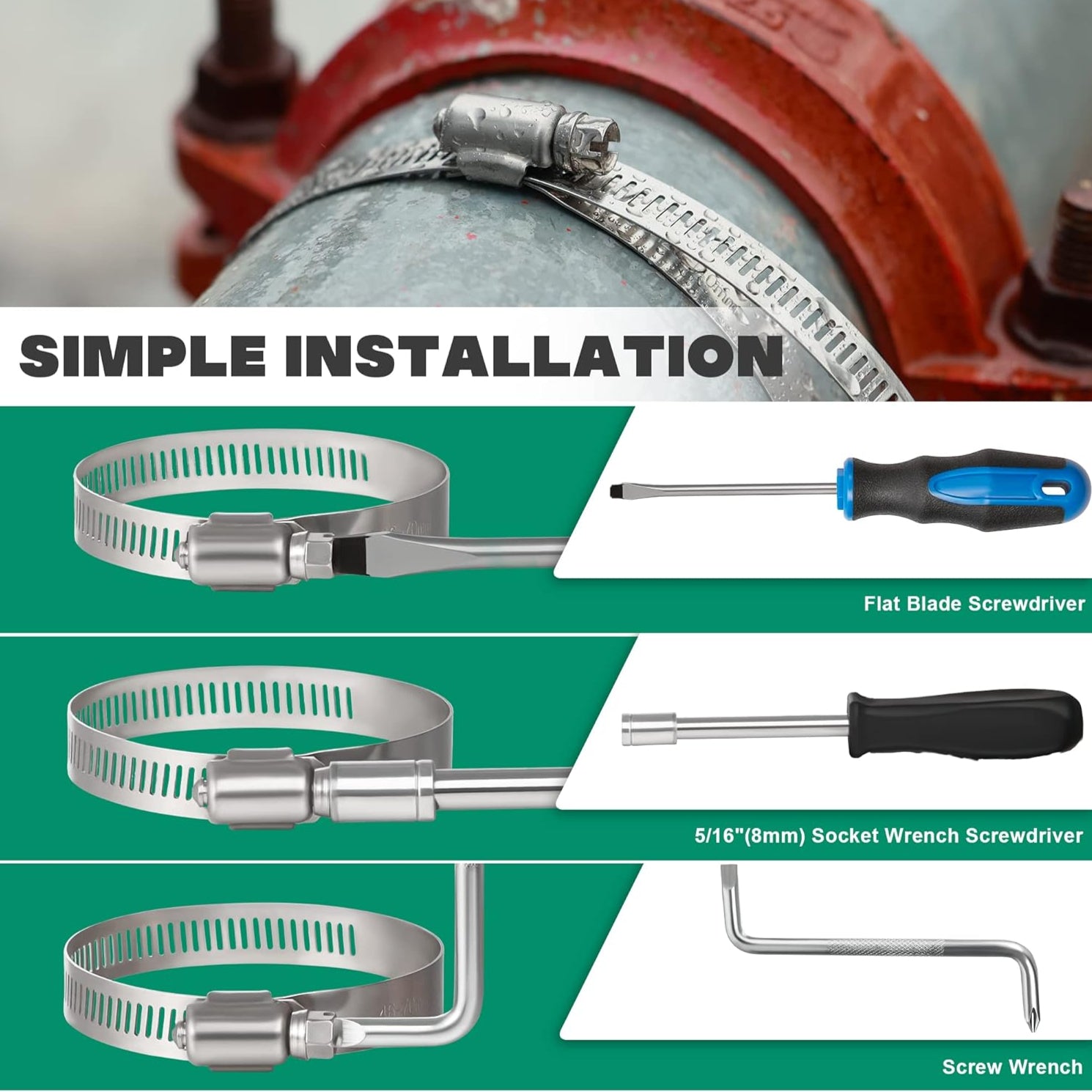

To install, you slip the loose clamp over the hose, position it at the fitting’s barb, and drive the screw clockwise. The “worm gear” then pulls the band down. Worm clamps can achieve high clamping force, making them suitable for heavy-duty uses. Advantages of worm clamps include their strong bite on the hose and broad availability. They are often made of stainless steel, resisting corrosion, and come in sizes from small 3 inch hose clamps up to large 12 in hose clamp.

One drawback: worm clamps concentrate force at the screw location, which can create a pressure point. Also, the captive screw’s tip can cut into a soft hose if over-tightened. But with careful installation (watching the torque and using a correct size), worm gear clamps are versatile and allow easy re-tightening later with a screwdriver.

Promo: Ouru’s stainless steel worm gear clamps provide uniform band width and smooth threads, making them easy to adjust with the right tool. Check out our full range (including heavy duty hose clamps stainless steel) to find the exact size for your hose.

How Spring Hose Clamps Work for hose clamps 3 inch

Spring clamps (constant-tension clamps) are made from a single strip of spring steel. They have tabs on the ends which you squeeze to expand the clamp. When you release the tabs, the spring wants to contract, pulling the ends together and squeezing the hose at a constant pressure. CarParts explains that spring clamps maintain tension as hoses expand/contract under temperature changes.

Installation is simple: pinch the tabs (often with pliers) to open the clamp, slip it over the hose, align it at the fitting, and let go. The clamp then exerts a steady tension. Spring clamps automatically compensate for small changes in hose diameter (for example, due to heating), which can prevent leaks if the hose shrinks slightly when cooled. According to CarParts, springs provide continuous pressure rather than requiring manual adjustment.

Because there is no screw, spring clamps are typically lighter and have rounded edges, reducing the chance of cutting a hose. They come in common sizes for smaller hoses (e.g. miniature hose clamps and hose clamps 3"). However, they have fixed clamping range: once released, they clamp with a preset force. You cannot tighten them further after installation (unless you pinch again). Their maximum clamping force is generally lower than a high-torque worm clamp.

Promo: For applications like oil and vacuum lines, Ouru’s high-quality spring clamps (made of tempered spring steel) are ideal. They maintain a constant seal without tools. Use Ouru hose pipe clamps and 1 inch hose clamps for secure, hassle-free connections on small-diameter hoses.

Worm Gear vs Spring Clamp: Key Differences (hose clamps 3 inch)

The main difference is adjustability vs. constant tension. Worm gear clamps use a screw, so you can finely adjust the grip; spring clamps apply a set tension automatically. Here are some key comparisons:

• Adjustability: Worm clamps allow adjustable torque on the fly; spring clamps snap to a fixed tension. For jobs needing precise tightness (like fuel hoses), worm clamps win.
• Tension Over Time: Spring clamps keep constant pressure, so they don’t loosen as hoses shrink. Worm clamps may lose tension with vibration or thermal cycling unless re-tightened.
• Ease of Use: Spring clamps install with pliers—no tools needed after initial pinch. Worm clamps need a screwdriver or socket.
• Holding Power: Worm clamps often provide a stronger, wider-seated clamp. They can crush even hard-rubber hoses if over-tightened. Spring clamps have gentler pressure spread around the band.
• Safety: Spring clamps have no protruding screw, so they pose less risk of cutting or snagging. Worm clamp edges can be sharp if mishandled.
• Durability: Good quality spring clamps (spring steel) can outlast cheaper worm clamps, since they lack moving parts that strip. However, high-grade stainless worm clamps can also be very durable.
• Reusability: Worm clamps can be reused many times (just unscrew and retighten). Some spring clamps (especially inexpensive ear clamps) are single-use.

Promo: In summary, choose worm clamps when you need an adjustable, high-torque clamp (for example, 8 hose clamps on coolant lines or heavy duty stainless steel hose clamps for machinery). Opt for spring clamps where ease and constant tension are critical (like gas line clamps or pinch clamp pliers-installed clamps on heater hoses). Ouru offers both types: check our stainless steel worm gear clamps and stainless steel adjustable clamps side by side to decide which suits your task.

Choosing the Right Clamp for Your Application (hose clamps 3 inch)

Consider your system needs:

• Pressure & Load: High-pressure or vibration-prone lines (turbo, radiator, exhaust, hydraulic) often benefit from worm clamps. Their stronger grip ensures no leaks under load. For static or lower-pressure lines (windshield washer, fuel vent), spring clamps are usually sufficient.
• Adjustment Needs: If you’ll assemble/disassemble often, or need fine tuning, worm clamps let you re-tighten easily. For one-time installs where you want automatic sealing despite hose changes (like seasonal engine expansion), spring clamps are convenient.
• Hose Material: Fragile or silicone hoses (common in performance cars) handle spring clamps well, as they won’t cut the hose. Stiffer rubber hoses (like radiator or intake hoses) can tolerate or even require the bite of a worm clamp.
• Environment: In a corrosive or marine environment, either type should be stainless (Ouru’s 316 SS clamps). But note that springs maintain tension if a bit of corrosion forms, whereas a rusted worm clamp might seize or lose threads.
• Tool Availability: If you have no screwdriver handy, a spring clamp is faster (just pliers). If you can easily use tools, a worm clamp is fine.

In practice: small-diameter hoses (vacuum, fuel lines) often use spring clamps, while large-diameter hoses (radiator, radiator hoses, air intake) often use worm gear clamps. There’s no one-size-fits-all “3 inch hose clamp is X type”; match the clamp style to the specific hose function.

Promo: Whatever you choose, pick Ouru brand clamps for quality. For example, use Ouru worm clamps on your radiator hoses (with an 8 inch hose clamp or 10 inch hose clamp from our kit), and use Ouru spring clamps on smaller hoses (our wire clamps stainless fit neatly on fuel lines). With Ouru clamps, you get precise sizes, consistent materials, and the guidance to seal your hoses right the first time.

In conclusion, worm gear clamps and spring clamps each have their place. The worm clamp’s screw-driven adjustability is unmatched for heavy-duty sealing, while the spring clamp’s constant tension provides leak prevention without fiddling. By understanding these differences and considering your hose diameter (e.g. small 1 inch hose clamps vs larger 4 inch hose clamps) and system demands, you can select the right type. Remember, Ouru supplies both options in stainless steel, so the best clamp – worm or spring – is ready whenever and wherever you need it.
