What Are The Three Types Of Hose Clamps?
“Three types” is a practical way to start choosing a hose clamp; it does not mean these are the only clamp designs on the market. Match the mechanism, installed hose diameter, fitting, and service conditions before tightening or ordering.

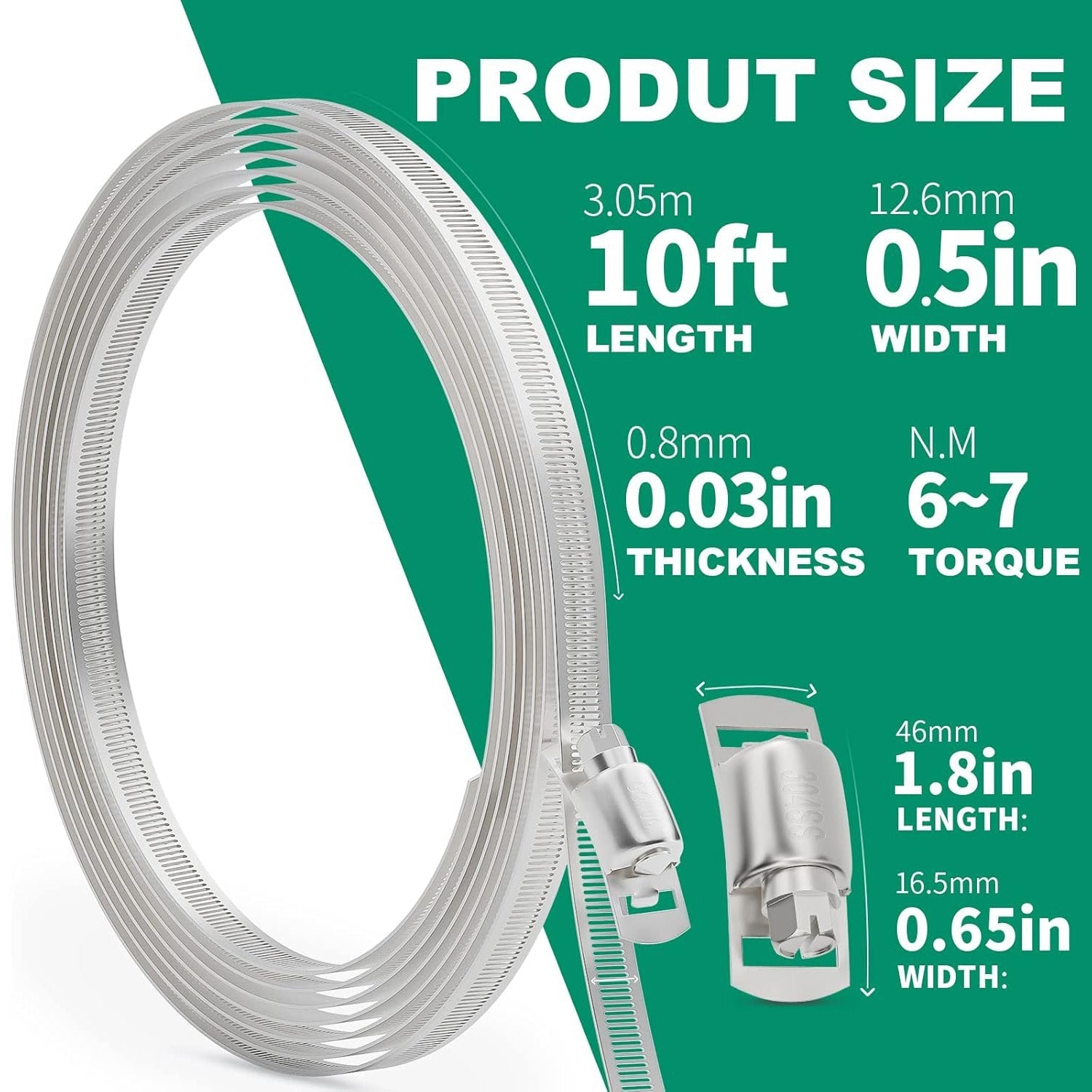

Type 1 — Worm-Drive Clamps
How they work: A screw turns a perforated band tighter around the hose and fitting. This makes a worm-drive clamp adjustable and serviceable for compatible automotive, household, irrigation, and general repair connections.
Choose it when: the connection calls for a screw-adjusted clamp and you can measure the hose outside diameter over the installed fitting. Use a driver that fits the screw head and avoid overtightening soft hose material.
Type 2 — Spring / Constant-Tension Clamps
How they work: Spring bands apply tension through their spring shape, helping them follow normal hose expansion and contraction during temperature changes. Use them only where the hose or equipment specifies a compatible spring-clamp design.
Choose it when: the original system uses a spring clamp and its size, access, and removal method are appropriate. Do not replace another required clamp type simply because a spring clamp looks convenient.
Type 3 — Ear / Stepless Clamps
How they work: An ear clamp is placed over the connection and compressed with the correct ear-clamp tool. The ear deforms to create a low-profile, permanent clamp. It is not screw-adjustable, and removal normally means cutting it off and replacing it.
Choose it when: the fitting and hose specify an ear-clamp connection, the closure range is correct, and you have the matching installation tool.
Summary: Choose the Mechanism That Matches the Job
Use a worm-drive clamp for a compatible adjustable connection, a spring clamp when the system specifies its tensioning behavior, and an ear clamp for a compatible permanent crimp connection. Measure the assembled hose diameter, confirm the fitting and tool requirements, then inspect the connection after installation.
For a closer comparison of worm-drive and spring mechanisms in heat-cycling applications, read Worm Gear vs Spring Hose Clamps: Which Is Better for Your Needs?. You can also browse the hose clamp collection once the clamp type and range are known.
