Leak-Free Fastening: The Right Way to Tighten Hose Clamps

Whether you’re sealing a radiator hose, a dishwasher line, or a bilge pump, how to tighten a hose clamp the right way is the difference between a bone-dry joint and a slow, confidence-killing drip. Below is a pro-grade walkthrough—DIY-friendly, brand-agnostic, and grounded in industry guidance—covering hose clamp torque, tool choice, and technique for the most common styles (especially the worm-gear clamp).

Need a ready kit? Try the Ouru Hose Clamps Silver Color Kit (multiple sizes, organized assortment)

Buy it through pic or link: Metal Strapping +Fasteners Kit- 10/20/30/50 PCS

Safety & Prep — how to tighten a hose clamp, hose clamp installation, worm-gear clamp

1) De-energize & depressurize. Shut off pumps/engines; bleed pressure from cooling, hydraulic, or water lines. Pressurized lines amplify even tiny errors.

2) Inspect the interface. A clamp can’t fix bad geometry. Check that:

• The barb or pipe stub is round, free of scratches, and long enough for full band contact.

• The hose end is undamaged; cut squarely with a sharp blade. Replace aged, hardened, or swollen hose.

• The sealing zone is clean—no tape, sealant, or debris under the band.

3) Choose the right clamp type.

• Worm-gear clamps (a.k.a. worm clamps) are ubiquitous and versatile.

• Constant-tension clamps (spring-band, Belleville/T-bolt with spring) compensate for thermal cycling and creep better than standard worm clamps on coolant and turbo hoses. Many OEMs prefer constant-tension over fixed worm gear hose clamps for modern cooling systems.

• Ear (Oetiker-style) clamps deliver uniform 360° compression when crimped with the proper jaw; great for small OD lines and soft tubing.

4) Use the right tools.

• A nut driver or 1/4″ drive socket gives better feel than a big screwdriver on a worm-gear clamp.

• For spring/constant-tension types, use pliers designed for that clamp.

• For ear clamps, use dedicated hose clamp pliers (ear-clamp pincers) per the maker’s spec.

5) Safety basics. Gloves, eye protection, and for fuel lines, fire safety (no sparks, ventilation). On boats, ABYC and insurers often recommend double clamps on critical below-waterline penetrations; when used, bands should be opposed 180° and fully on the barb lands.

Read more: Ultimate Guide to Hose Clamps: Types, Sizes, Installation, and FAQs

Check Size Before You Tighten — hose clamp torque, radiator hose clamps, stainless steel hose clamps

Right size, right range. A clamp should sit in the middle of its diameter range once positioned. If you’re at either extreme, choose the next size. Undersized bands “cone” and bite; oversized bands bottom out before adequate load.

Band width matters. Narrow bands (e.g., 8–12 mm) are common for small clamps for hose; wider bands (12–15 mm+) spread load better on larger hoses and soft silicone.

Material & environment.

• Stainless steel hose clamps (300-series, 316 for marine) resist corrosion; use 316 near saltwater and road salt.

• For high heat/thermal cycling (radiators, turbo), constant-tension designs reduce post-install retightening.

Target torque—don’t guess. Torque recommendations vary by brand and series; typical ranges (not universal) are:

• Many worm-drive “mini” clamps: ~15–30 in-lb (1.7–3.4 N·m)

• Standard worm-gear clamps: ~30–50 in-lb (3.4–5.6 N·m)

• Heavy T-bolt clamps: 50–90 in-lb (5.6–10.2 N·m+) (or more per spec)
  Use the manufacturer’s table for your exact part; Norma and others publish torque windows and warn against over-tightening that can buckle bands or damage hose liners.

Standard reference. SAE J1508 defines clamp types and performance requirements used by OEMs for fuel, coolant, vacuum, and emission lines—helpful context when selecting clamp families.

How to Tighten by Clamp Type — worm-gear clamp, constant tension, ear clamp

A) Worm-Gear Clamp (a.k.a. worm clamp; the everyday workhorse)

1. Place the clamp 1–2 band widths back from the hose end so the band bears fully on the barb lands. Avoid straddling a barb valley.

2. Orient the screw for future access, but keep clear of moving parts and sharp edges.

3. Snug progressively. Use a nut driver or socket and alternate between snug and set position so the band seats evenly.

4. Torque to spec. If you have a small torque wrench, hit the maker’s target hose clamp torque; if not, add load until rotation requires firm wrist effort, then check for weeping under pressure/heat and add a quarter-turn if needed. Avoid the “gorilla twist.” Excess torque can damage hose reinforcement, especially on EPDM and silicone. Dixon and other makers note that over-tightening can distort the band and “skid” the housings.

5. Re-check after heat cycle. Rubber relaxes; a minor retorque after warm-up can stabilize a radiator hose clamp. (Constant-tension types minimize this.)

B) Constant-Tension (spring-band and spring-loaded T-bolt)

1. Use the correct pliers or driver. Spring-bands need the matching plier tips; spring-loaded T-bolts tighten like standard T-bolts but include a spring stack.

2. Install per OEM clocking. Spring-bands should sit square; don’t pry them across barbs.

3. Set load per spec. Spring stacks have a working window (height/torque). Makers like Norma Americas specify settings and warn against compressing the spring solid.

4. Do not retighten hot unless the manufacturer calls for it; the spring is already compensating for temperature.

C) Ear (Stepless) Clamps (Oetiker-style)

1. Select correct diameter so the ear closes to the specified closure percentage; that ensures the designed radial force.

2. Position for 360° seal. The StepLess® design eliminates the “screw housing gap,” giving uniform compression around the full circumference when crimped correctly.

3. Crimp with the specified jaw in one smooth squeeze; avoid multiple partial squeezes that notch the ear.

4. Inspect. The ear should be closed within the maker’s window, band flat, no pinching of hose cover. If you need to remove, replace—ear clamps are single-use by design.

D) T-Bolt / Heavy-Duty Band Clamps

1. Seat the band fully on the barb lands; ensure alignment (no skew).

2. Tighten evenly to the maker’s hose clamp torque; many publish inch-pound ranges and recommend staged tightening. Dixon and others caution that excessive torque can crush hose liners or ovalize thin wall stubs.

3. Thermal cycling plus high boost or vibration? Consider spring-loaded T-bolts for load retention.

Read more: Ultimate Guide to Hose Clamps: Types, Sizes, Installation, and FAQs

Common cross-type best practices (quick hits)

• No sealing tape under clamps. Tape cold-flows and creates leak paths.

• One clamp, one sealing land. If you double-clamp, space them with both fully on barbs, bands offset 180°. Recommended for certain marine/below-waterline and fuel hose connections.

• Avoid cut-slots on soft silicone. High-quality “embossed” bands protect hose covers better than perforated bands on delicate silicone.

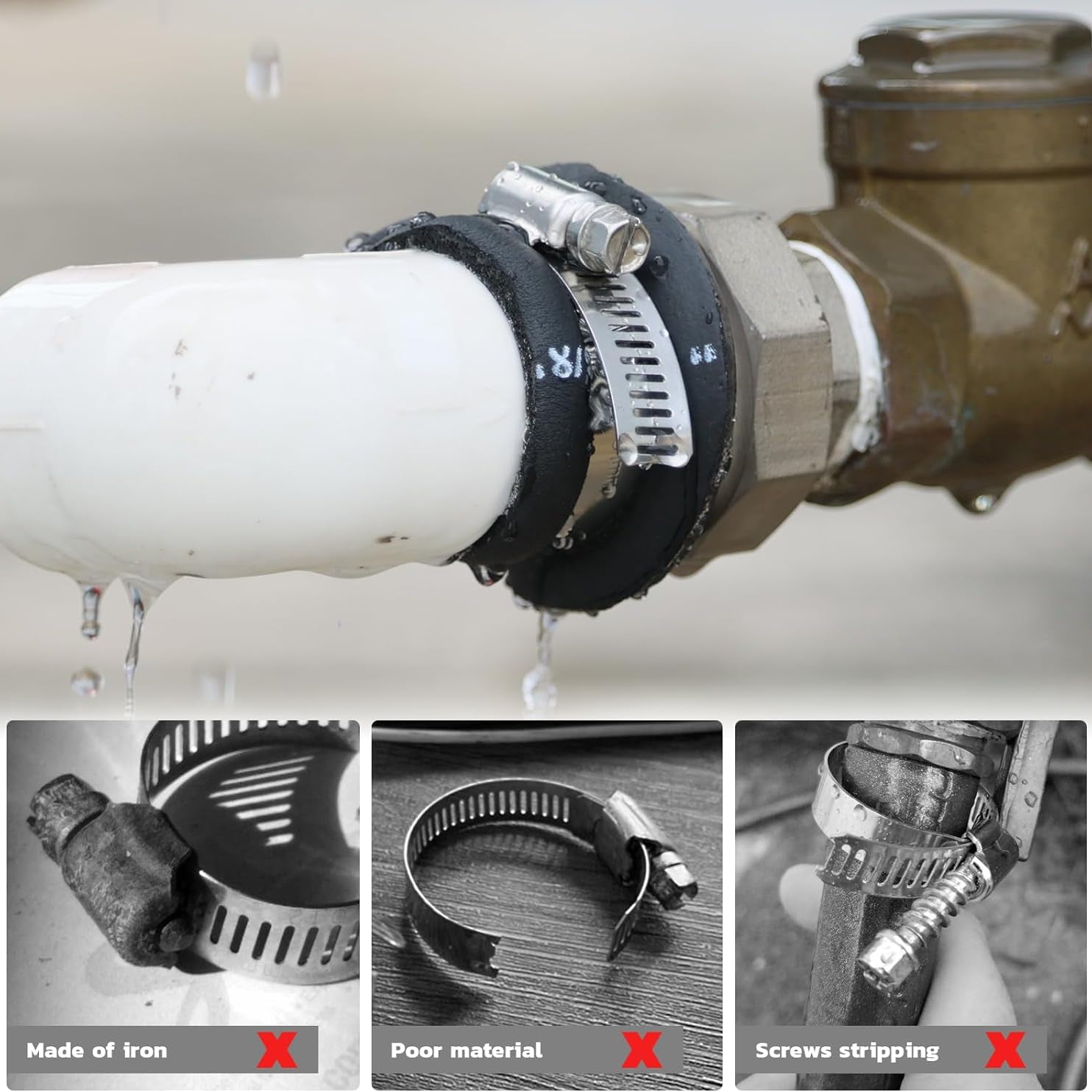

• Swap damaged hardware. Stripped worm housings, cracked bands, or rusty metal clamps go straight to the bin.

• Environmental match. 316 stainless steel hose clamps for salt spray; lined bands for soft hose; constant-tension for systems with temperature swings.

Buy it through pic or link: Worm Gear Hose Clamp Silver Color Kit-Bottle

Wrap-Up (and why technique beats brute force)

A leak-free joint is the sum of: the right clamp style, correct size, appropriate hose clamp torque, and a patient installation. When in doubt, respect the maker’s table (there’s more science than meets the eye), lean on constant-tension where temperature swings, and use ear clamps for compact, uniform sealing on small lines. That’s the professional way to tighten a hose clamp—and only once.

Ready to standardize your results? Stock a labeled, multi-size kit so you always have the right hose clamp at arm’s length:
👉 Ouru Hose Clamps Silver Color Kit (30–175 pcs options)
