Before you can put a hose clamp back together, first identify what type of clamp you’re dealing with. Different hose clamp types have different structures, and not all can be reassembled once taken apart. The most common types include:
Worm Gear Hose Clamps (Screw Clamps): These are the typical stainless steel hose clamps with a slotted band and a screw mechanism (often called a worm gear). Turning the screw tightens the band around the hose by engaging the slots. Worm gear clamps (sometimes called worm drive clamps or Jubilee clips) are widely used for fuel lines, coolant hoses, and general plumbing because they provide a strong, adjustable hold. They are usually made of steel or stainless steel for corrosion resistance.
Spring Hose Clamps (Constant-Tension Clamps): These clamps are a ring of spring steel that squeeze tight when released. They have tabs you press with pliers to expand the clamp for removal or installation. Spring clamps are often found on automotive coolant hoses (radiator hoses) because they maintain tension through temperature changes. They don’t have a screw; thus, they don’t “come apart” into separate pieces – you simply compress and release them to reuse..
Ear Clamps (Stepless or Oetiker Clamps): Ear clamps are metal loops with one or two “ears” that you crimp to tighten. They are single-use clamps – once you deform the ear to tighten, you must cut the clamp to remove it. If an ear clamp comes off, it means it was cut off or broken, and it cannot be reattached. You’ll need a new clamp of this type. Ear clamps provide a low-profile, tamper-proof seal (commonly used for fuel lines, air hoses, and plumbing) but require a special crimp tool.
T-Bolt Clamps (Heavy-Duty Hose Clamps): These are beefy stainless steel clamps that use a bolt and nut to tighten a band, providing very high clamping force for large hoses (like turbo or radiator hoses). A T-bolt clamp can be loosened and taken apart (the bolt comes out of the band), and you can reassemble it by inserting the bolt back and tightening the nut. T-bolt clamps are designed for heavy-duty, high-vibration applications and offer a consistent, leak-proof seal in harsh conditions.
Wire Clamps and Other Types: You might also encounter wire hose clamps (a double-loop of wire tightened by a screw) or specialty clamps like fuel injection clamps (with a smooth inner band). Wire clamps can be opened by removing their screw and reassembled similar to worm gear clamps. Plastic ratchet clamps are another type, mainly for lighter duty. Regardless of type, make sure to match the clamp to your hose diameter. Clamps come in many sizes – from tiny mini hose clamps for 1/4″ tubing, up to large 4-inch or 6-inch diameter clamps for big pipes. (Ouru’s Hose Clamp Kit, for example, contains an assortment from small #4 or #6 size clamps up to large 2-inch hose clamps, so you’ll always have the right size on hand!)
Promotional Note: No matter the type – be it a small 1-inch pipe clamp or a hefty 8-inch hose clamp – using a quality, rust-resistant clamp is key for a leak-free connection. Ouru’s hose clamp assortment features 304 stainless steel hose clamps with smooth edges and strong threads to prevent stripping, ensuring you can tighten them confidently for a secure hold. 👍
If your hose clamp came apart in your hands, it’s important to understand why. Worm gear clamps and similar adjustable clamps can separate or fail for a few common reasons:
Over-Unscrewing: The most frequent reason a worm gear hose clamp falls apart is that it was unscrewed past its limit. If you back the screw out too far, the band disengages completely from the housing. This often happens when removing a clamp or trying to fit a clamp around something (since worm clamps can be opened fully to wrap around a hose or pipe). The good news is, you can put it back together – we’ll show you how in the next section. (Tip: Next time, loosen a worm gear clamp just enough to slide it off the hose instead of completely removing the screw, unless you intentionally need to open it.)
Clamp Was Too Large or Improperly Sized: If a clamp is much larger than the hose and you tighten it to the smallest diameter, you may reach the end of the screw’s travel and it could slip out. Always use the correct size clamp for your hose diameter. The right size of clamp is critical to ensuring a leak-proof seal – a clamp should ideally have the hose size fall in the middle of its adjustment range. For example, use a clamp that isn’t almost fully tightened or fully opened at installation.

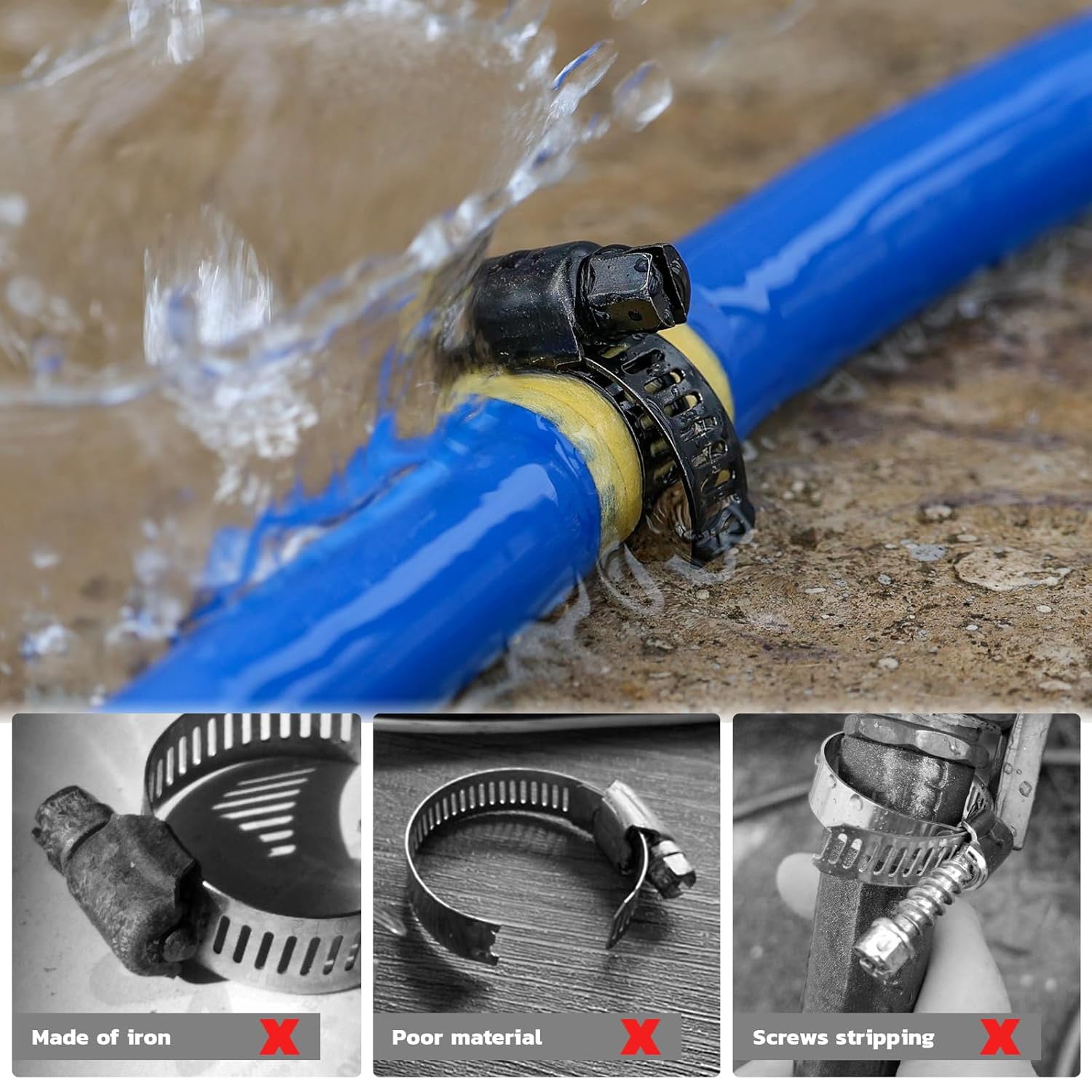

Corrosion or Material Fatigue: If the clamp is old or made of poor-quality metal, it might have rusted or weakened. A corroded clamp can fail due to corrosion and fatigue, causing the band or screw to snap. In such cases, the clamp didn’t just come apart – it broke. Similarly, repeated tightening/loosening over years can wear out the threads. Stainless steel clamps are recommended for longevity, especially in wet or corrosive environments, as they offer excellent corrosion resistance for long-term use.
Overtightening and Stripped Threads: Be careful not to overtighten a worm gear clamp. If you crank the screw too hard, you can strip the threads or even twist the band. This damages the clamp and can cause it to slip or not tighten properly. As one industry guide notes, “Be careful not to overtighten, which will only damage the threaded part of the clamp and lead to the clamp failing.” An overtorqued clamp might suddenly give way (essentially “coming apart” by losing tension or breaking).
Temperature or Pressure Cycles: In applications like automotive coolant lines or turbo hoses, heating and cooling cycles or pressure surges can gradually loosen a clamp. A worm gear clamp may need re-tightening after a while if the hose material takes a set. Spring clamps excel here by automatically adjusting tension as things expand or contract. If your worm clamp “came loose” (not physically apart but leaked), this might be why.
In summary, figure out if your clamp simply came apart due to being unscrewed or if it failed due to damage. If it’s still in good shape, you can reassemble it. If it’s broken or heavily corroded, it’s safer to replace it. Using high-quality stainless steel worm gear clamps (like those in Ouru’s kits) will reduce the chance of future failures, since they are strong, rust-resistant, and built to last.
If you have a worm gear hose clamp in pieces – typically the band has come out of the screw housing – don’t worry. You can put the hose clamp back together and reuse it in most cases. Follow these simple DIY steps to reassemble a worm-drive hose clamp:
1. Gather the clamp parts and tools: Make sure you have all parts of the clamp: the metal band (with slotted holes) and the screw housing (the small metal block with the screw/gear mechanism). Inspect them for damage. If the band is cracked or the screw threads are stripped, you’re better off replacing the clamp entirely for safety. Tools needed include a flat-head screwdriver (or nut driver) to tighten the clamp and possibly pliers.
2. Straighten and align the band end: When a worm clamp comes apart, the end of the band may be slightly bent or warped (especially if it snapped out under tension). Using pliers, carefully straighten the end of the band if needed. The band should be flat and the slotted perforations undamaged so it can slide back into the screw housing easily. Also ensure the screw in the housing is backed off (turned counter-clockwise) enough that the housing’s entry slot is open.
3. Insert the band into the housing: Feed the end of the band back into the clamp housing from the correct side. Usually, you insert it from the side opposite the screw head, so that the screw’s worm gear will face the slotted side of the band. Angle the band slightly and push it into the housing until you feel the worm gear teeth catch one of the slots on the band. This can take a little wiggling to get right. Once the band is engaged, turn the screw clockwise a few turns to pull the band further in. You should see the band “threading” into the housing as the screw meshes with the slots.
4. Re-form the clamp loop: Now that the band is reattached, reform the clamp into a loop. Make sure the band isn’t twisted and that the clamp’s smooth side (the side without slots) will be against the hose to avoid any cutting. Slip the reassembled clamp back over the hose (or around whatever you’re clamping). If you had to open the clamp in place (for example, around a hard pipe or a fixed tube where you couldn’t slide a closed clamp over), position the clamp where it needs to go before tightening.
5. Tighten the clamp on the hose: Use your screwdriver to turn the worm screw clockwise and tighten the clamp to a snug fit around the hose and fitting. As you tighten, the band will draw in, making the clamp smaller and gripping the hose firmly. Make sure the clamp is positioned correctly: it should sit over the hose on the fitting (covering the barb or pipe end) and not over the extreme edge of the hose. A good rule of thumb is to leave about 1/4″ of hose sticking out past the clamp, so the clamp isn’t right at the hose end. If the fitting has multiple barbs, position the clamp right behind the first barb or over the area between barbs for best sealing. On long connections (like a long hose barb or a pipe without a lip), you can even use two clamps side by side for extra security – space them a small distance apart (about 1/2″ to 3/4″) for even pressure.
6. Test and adjust: Once tightened, give the hose a gentle tug to ensure the clamp is secure and the hose won’t slip off. If applicable, run fluid or pressure through the hose and check for leaks. If you see a slow drip, you may need to tighten the clamp a bit more. Be cautious not to overtighten to the point of cutting the hose or stripping the clamp (snug and firm is usually enough). If one clamp isn’t stopping a leak on a high-pressure line, consider adding a second clamp or using a wider heavy-duty hose clamp. Remember that clamps like these achieve a high holding force at proper torque and shouldn’t be cranked beyond their design limits.
Following these steps, you should have successfully put your worm gear hose clamp back together and reinstalled it. A reassembled worm drive hose clamp will work just as well as before, as long as its components are intact. In fact, the ability to take it apart and reuse it is a great feature of worm gear clamps – it allows for easy installation in closed loops and reusability.
Reassembling a stainless steel hose clamp is a straightforward task once you know the clamp type and the proper technique. By identifying your clamp (whether it’s a worm gear clamp you can rebuild, a spring clamp you simply reposition, or an ear clamp that you must replace), you set the stage for an effective fix. We’ve learned that worm gear hose clamps (stainless steel or galvanized) can indeed be put back together by feeding the band into the screw housing and tightening it up. We also covered why clamps sometimes fail – from unscrewing too far, to corrosion, to using the wrong size or overtightening – and how to avoid those pitfalls.
By applying the no-leak tips discussed – such as choosing the right clamp size (don’t try to make a too-large clamp fit a tiny hose), positioning the clamp correctly on the hose, and not overtorquing – you’ll ensure a reliable, leak-proof connection. In critical applications or larger diameters, double up your clamps or use heavy-duty styles for extra peace of mind. And always opt for quality clamps: a well-made stainless steel worm gear clamp with rolled edges and solid construction will hold tight and resist rust, keeping your project dry and safe. As one expert source reminds us, the proper clamp size and quality are “critical to ensuring a leak proof seal.”
Finally, keep spares around! Having a kit of assorted stainless steel clamps means you’re never stuck if one breaks or if you need a different size. The Ouru Hose Clamp Kit (featuring a range of common sizes in a handy box) is a great insurance policy for DIYers and professionals alike – you can swiftly swap in a new clamp or replace an old one before it causes a leak. These clamps are built to last with features like a smooth through-hole design and strong locking force, so you can trust them for automotive, plumbing, and household projects.
With your clamps secured and these tips in mind, you can tackle any hose connection confidently. No more leaks, no more slipped-off hoses – just a solid, secure clamp keeping everything together. Happy DIY clamping! 🔧🎉
