Choosing the correct hose clamp is critical to ensure a tight seal on hoses and pipes. A clamp that’s too small won’t fit, while one that’s too large won’t tighten properly – both scenarios can lead to leaks or hose blow-offs. The key to sizing hose clamps (including worm gear clamps, spring clamps, or any metal pipe clamps) is to measure the outer diameter (OD) of your hose assembly and match it to a clamp whose range comfortably covers that size. In this article, we’ll walk through the measurement process step-by-step, explain clamp diameter ranges and industry size standards, and provide a quick reference to help you pick the right clamp every time. Let’s get started – a few minutes of measuring will save you from frustrating drips or sudden bursts. (Pro Tip: Keeping an assortment of quality stainless clamps on hand – like the Ouru Hose Clamps Kit– ensures you always have the right size for any tubing or pipe.)
Correctly measuring for a hose clamp involves checking the hose’s outer diameter when it’s in use, and then selecting a clamp size that fits that diameter with room to spare. Follow these steps to measure and choose a clamp size with confidence:
Install the Hose on its Fitting: First, push the hose fully onto the pipe, barb, or nipple it will be attached to. This is important because hoses expand slightly when stretched over a fitting. The OD of the hose at the fitting will be larger than the hose’s nominal inside diameter. (For example, a “3/4 inch” heater hose refers to 3/4″ inner diameter, but the outer diameter might be around 1″ once on the fitting due to hose thickness. Always measure the outside after installation, not the listed hose size.) Having the hose properly installed ensures you measure the true size needed – saving you from ordering clamps twice. For a versatile solution that clamps pipe securely, the Ouru kit includes multiple sizes to fit common fittings.
Measure the Outside Diameter (OD): Use a caliper for the most accurate measurement of the hose’s outside diameter over the fitting. Place the caliper around the hose where the clamp will sit (usually just behind the barb or raised lip of the fitting) and note the diameter. If you don’t have a caliper, use a flexible measuring tape (or even a piece of string). Wrap it around the hose to measure the circumference, then divide by π (3.1416) to get the diameter. For example, if the circumference is 100 mm, the diameter is ~31.8 mm. (No caliper? No problem – a tailor’s tape or string method works in a pinch. Just remember to calculate diameter = circumference ÷ π. Ouru’s hose clamp kit includes a handy size chart to help convert these measurements to the nearest clamp size.)
Find a Clamp that Fits the Diameter Range: With your hose OD measured, look for a clamp whose stated clamping range (minimum to maximum diameter) includes your measurement. Hose clamps are usually sold by their diameter range – for example, a clamp might be labeled “Fits 13–32 mm” or “1/2″–1-1/4″. It’s best not to choose a clamp where your size is at the extreme end of its range. Ideally, your hose OD should fall near the middle of the clamp’s adjustment range. This ensures the clamp can tighten effectively without being strained or running out of screw travel. In practice, if your hose OD is 25 mm (~1″), a clamp with range 20–32 mm (0.75″–1.25″) is a perfect choice, while one that only just reaches 25 mm at its max might not seal well. To make things easy, Ouru’s clamp kit offers overlapping size options so your measured OD will always land comfortably within a clamp’s range!
Allow a Margin for Tightening: Select a clamp slightly larger than the exact OD to allow for proper tightening. A good rule of thumb is to have at least a few millimeters (approximately 1/8″ or ~3 mm) of clearance between your measured OD and the clamp’s maximum capacity. This buffer ensures the clamp can tighten down firmly and account for any slight expansion when the system is pressurized. In other words, don’t use a clamp that barely fits the measured diameter – size up a bit for safety. This margin is critical for high-pressure lines like coolant or turbo hoses. Ouru’s heavy-duty stainless clamps have extra torque and a comfortable range, giving you that needed flexibility for a secure fit.
Double-Check or Reference Standard Sizes: If you’re unsure, you can also check the old clamp or size charts. Many worm-drive clamps have a size number or range stamped on the band (e.g., “SAE #20” or “13/16–1¾” on the metal). This corresponds to standard clamp sizes in the industry. For instance, SAE #8 is a common small size, SAE #40 a larger one, etc. Matching the number can guide you to the correct replacement. Additionally, standard size charts (like the SAE J1508 standard for worm-gear clamps) list clamps by number and their ranges. For example, an SAE #6 clamp covers about 3/8″–7/8″ (10–22 mm), while an SAE #40 clamp covers roughly 2-1/16″–3″ (52–76 mm). Knowing this can be a shortcut in choosing the right clamp. (Tip: Save the size stamp from your old clamp or keep a reference chart. And if you have Ouru’s assorted kit, each compartment is labeled with the clamp’s size range – so you can quickly grab the clamp that matches your measurement!)
By following the steps above, you’ll ensure you get a clamp that truly fits your hose. Taking a minute to measure the hose OD and select the proper range will prevent leaks and secure the connection under pressure. It’s a small effort upfront that pays off in reliability – much like investing in quality hardware. With the correct measurement and Ouru’s reliable stainless steel hose clamps, pipe and hose connections in your project will be tight and worry-free!
Not all clamps are created equal – they come in various size categories and standards. Understanding how clamp sizing works (and the meaning of terms like SAE numbers or band width) will help you pick the right type of clamp for your specific application.
Clamping Range: Every adjustable hose clamp (such as a worm-drive worm gear clamp or worm drive clamp) has a minimum and maximum diameter it can tighten to. This range defines the clamp’s “size.” As noted earlier, the clamp’s size is essentially the usable diameter range it covers, not a single value. For example, a stainless steel hose clamp might be listed as “1/2 inch – 1 1/4 inch”, meaning it can tighten down to 1/2″ diameter at smallest and open up to 1.25″ at most. It’s crucial to choose a clamp where your hose’s OD lies between these values (preferably somewhere in the middle). If your clamp is too large (with the hose OD near the minimum of the range), the band may protrude or not apply even pressure – one telltale sign is the clamp tightening into a deformed “D” shape instead of a perfect circle. Conversely, if your hose OD is at the clamp’s maximum, you might not be able to tighten it fully or the clamp could be overstressed. Bottom line: always match the clamp’s range to your needs, and err on a slightly bigger clamp (within reason) to ensure adjustability. (Ouru clamps come in well-calibrated ranges that meet common SAE standards, so it’s straightforward to pick the size that envelops your hose diameter.)
Standard Size Numbers (SAE Standards): In the U.S. and many regions, worm-drive hose clamps often reference SAE size numbers. These numbers (such as #4, #6, #8, #12, #20, #40, etc.) correspond to standard diameter ranges defined by the Society of Automotive Engineers. For instance, SAE #4 is a tiny mini hose clamp roughly for 1/4″ (6 mm) hoses, SAE #6 covers around 7/16″–25/32″ (~11–20 mm), SAE #12 goes up to ~1-1/4″ (~32 mm), and so on. Larger numbers like #40, #56, #72 indicate clamps for large hose diameters (several inches across). Manufacturers often print these numbers on the clamp band or housing. Knowing the SAE number can be handy – for example, a #8 hose clamp is widely used for fuel lines and small coolant hoses (~1/2″ to 1″ range), whereas a #40 clamp is used for big radiator or intake hoses (~2″ to 3″ range). If you see “#8” or “#12” on a clamp, you can quickly check a size chart to find its range. Most clamp kits (including Ouru’s) cover a range of SAE sizes to accommodate everything from small tube clamps to larger pipe clamps. Using standardized sizes ensures compatibility – Ouru’s hose clamps meet SAE Type F standard, meaning they have the prescribed 1/2″ band width and torque performance, so you can trust they’ll perform to industry specs for any #6, #8, or larger clamp need.
Band Width Explained: Hose clamps also differ in the width of the metal band that wraps around the hose. Common worm-gear clamps come in a few standard band widths, typically relating to their size category: Miniature clamps often have a narrow ~5/16″ band, standard clamps use a 1/2″ wide band, and heavy-duty full-size clamps use around a 9/16″ (or sometimes 5/8″) wide band. The band width influences how the clamping force is distributed and the physical strength of the clamp. A wider band distributes pressure over a larger area of the hose, which can protect softer hoses from being cut or extruded by the clamp’s edges. Wider bands also tend to catch more of the hose barb’s surface for a secure grip, which is beneficial in preventing the hose from “blowing off” under pressure. However, there’s a trade-off: very wide bands can be less flexible and harder to conform to small diameters or irregular shapes. For example, a 9/16″ band clamp might provide great holding power on a 3″ hose, but that same width on a tiny 1/4″ hose could be overkill and not seal as evenly. That’s why miniature clamps use narrower bands – to fit small hoses better and concentrate enough pressure to seal tiny diameters. The thickness of the band is another factor (heavy-duty clamps have thicker bands for strength), but generally, stick with the band width that the clamp’s size category calls for. (In summary: use narrow-band mini clamps for small tubing and broad-band stainless clamps for large pipes. Ouru’s selection follows these guidelines – e.g., our small #4–#8 clamps have 8 mm bands, while the larger ones use 12 mm bands – ensuring optimal pressure distribution for each size.)
Material and Corrosion Standards: Most quality hose clamps are made of galvanized or stainless steel. Stainless steel hose clamps are highly recommended for longevity, as they resist rust and corrosion – important in automotive, marine, and plumbing contexts. In particular, 316 stainless steel clamps (often labeled “marine grade”) offer superior corrosion resistance in saltwater, fertilizer, or chemical environments. For example, marine exhaust or coolant hose clamps on a boat should be 316 stainless to prevent failure from rust. Some clamps are made from 304 stainless or plated steel which are fine for most general uses but may not last as long in harsh conditions. Always ensure the screw is also stainless or brass; a stainless band with a regular steel screw can still rust at the screw. Additionally, certain clamps (like spring hose clamps or T-bolt clamps) follow their own standards. Spring clamps are sized by specific diameters and maintain constant tension – these are common on OEM automotive coolant hoses and don’t have the wide adjustment range of worm-gear clamps. T-bolt clamps, used for high-pressure or large diameter hoses, have even wider bands (often 3/4″ or more) and a bolted tightening mechanism for greater torque. They’re typically listed by a single size or range as well, and like worm clamps, you select them by matching to the hose OD. For most DIY and professional needs, standard worm-drive gear clamps in stainless steel will cover you – just pick the correct size. Ouru’s clamps are made from premium stainless steel, suitable for automotive, home, and even marine use, so you can trust they’ll hold up under pressure without corroding.

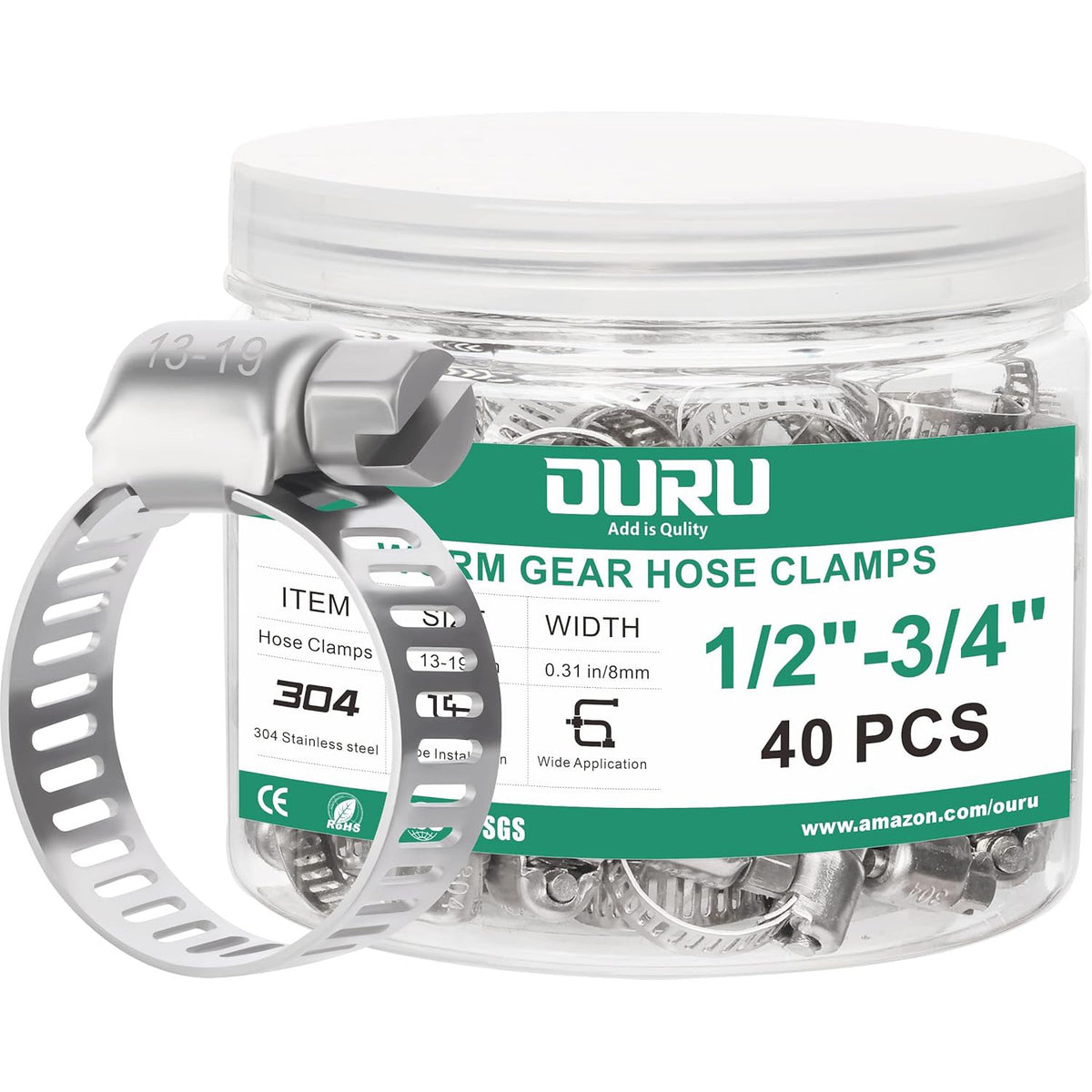

Understanding these range and standard nuances ensures that when you see a clamp listed as “size #10” or “1/2″–1-1/4″ range with 12 mm band,” you know exactly what that means and whether it fits your pipe clamp needs. The good news is that clamp manufacturers have largely standardized these dimensions, so selecting replacements is easier. If you’re ever unsure, consult the clamp’s specification or a reference guide – or turn to a comprehensive kit like Ouru’s, which conveniently organizes clamps by size and type, taking the guesswork out of clamp selection for your projects.
Need a quick reference to pick out a clamp for your hose or pipe? Here are some handy tips and examples to serve as a cheat-sheet:
Match Clamp Type to Hose Size: Small hoses (like fuel lines, vacuum lines, or brake lines under 1/2″ OD) typically use miniature worm gear clamps or special fuel injection clamps. For instance, a 1/4″ inner diameter fuel hose (~3/8″ to 1/2″ OD) can be secured with an SAE #4 or #6 mini clamp (which might tighten down to around 5/16″ minimum). These mini hose clamps have narrow bands and are perfect for small tubing where larger clamps won’t fit. Always use the smallest clamp that comfortably covers such small hose ODs – Ouru’s kit includes tiny clamps for jobs like securing fuel lines or clamps for tubing on appliances.
Common Automotive Hoses: Medium-sized hoses around 3/4″ to 1-1/2″ OD (typical for automotive fuel, coolant, or air lines) will use the standard worm-drive clamps (1/2″ band width) in sizes roughly #8 through #20. For example, a 1 inch hose clamp (approx. 25 mm OD hose on a radiator or coolant line) could be an SAE #12 clamp with range ~11/16″–1-1/4″. A car radiator outlet (~1.5″ OD) might need an SAE #20 (which covers roughly 1-3/4″ OD). These standard stainless steel hose clamps are versatile and commonly found in hardware stores. If in doubt, measure the hose OD and pick a clamp where that number sits comfortably in the middle. Ouru’s kit covers all common car hose sizes – from small coolant hoses clamps to larger intake tubes – in durable stainless steel.
Large Diameter Pipes and Ducts: For big hoses or pipes (2″ OD and above), you’ll need larger clamps, often labeled #36, #40, #56, etc., or even specialist T-bolt clamps for very high pressure. A 2 inch hose (say a 2″ ID rubber hose on a pipe, giving ~2.25″-2.5″ OD) typically calls for a clamp in the 2″–3″ range. An SAE #36 or #40 worm-drive clamp would work here (as #40 goes up to ~3″ or 76 mm OD). If the application is under high boost or pressure (e.g. a turbocharger piping or heavy equipment coolant line), you might opt for a heavy-duty hose clamp or T-bolt type in the same size. For example, a heavy duty stainless steel hose clamp in the 2.5″ range can provide extra torque and a thicker band for such demanding uses. Ouru offers robust clamps that can handle these larger diameters – ensuring even a 2in hose clamp (2″ pipe) is secured without slippage.

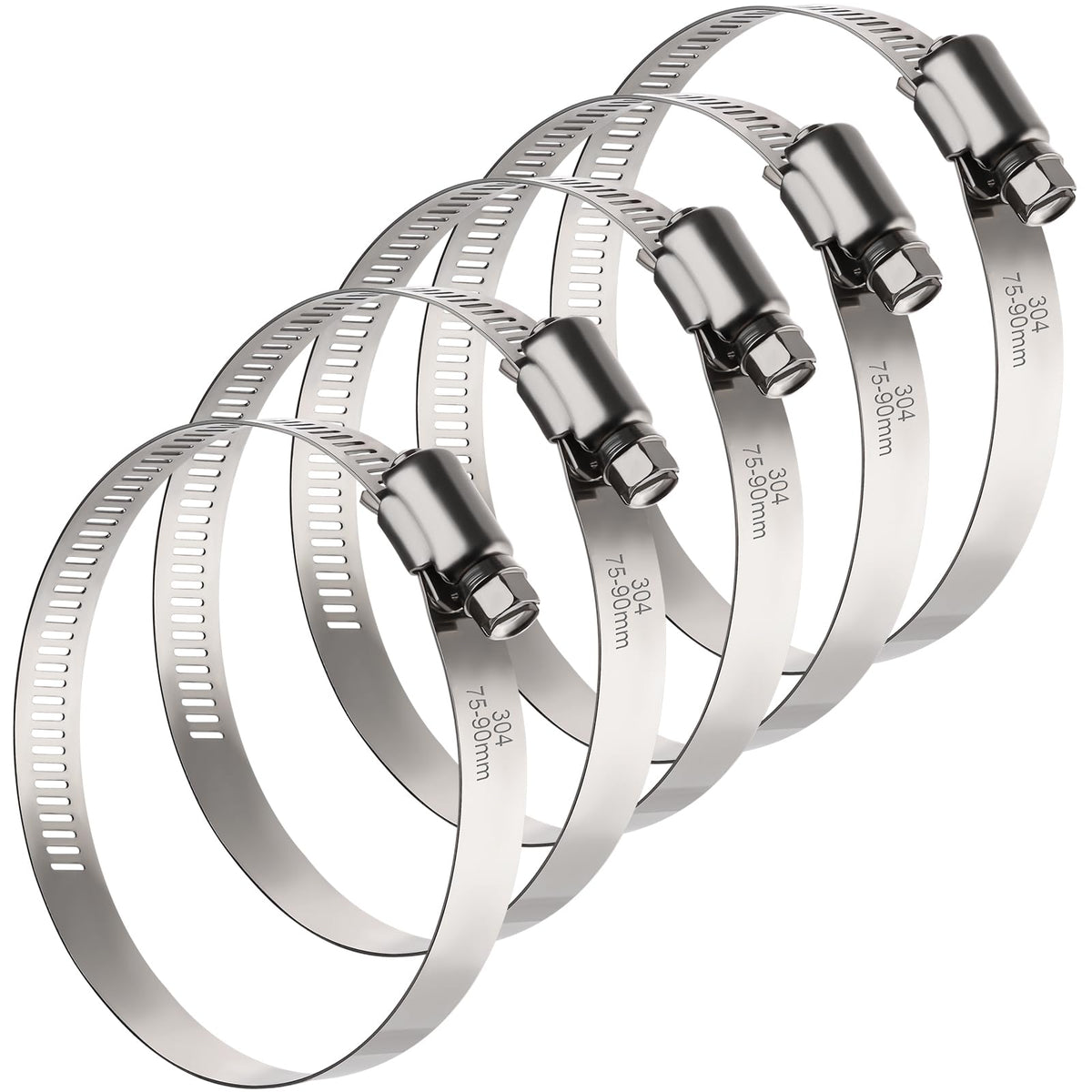

Extra-Large and Specialty Clamps: Hoses for marine exhausts, HVAC ducts, or industrial applications can be very large (4″, 6″, 8″ OD or more). Jumbo worm drive clamps exist for these – often sold simply by their range (e.g. “5″–8″ hose clamp” or a numbered size like #72, #80, #104 which covers up to ~6-7 inches). For example, a 4 inch hose clamp might be SAE #56 (covering roughly 3″–4″), and an 8 inch hose clamp could be SAE #128 or higher. These big clamps usually still use a worm screw but may have an even wider band (5/8″ or 3/4″) for strength. When dealing with such sizes, double-check the clamp’s material and quality – at large diameters, a sturdy stainless steel band is essential to maintain tension all around the circumference. If you’re tackling something like a dryer vent or a large pipe repair, Ouru’s product line includes hose clamps large enough for 6″ or even 8″ pipes, so you’re covered for those big jobs as well.
Quick Formula Recap: If you ever need to quickly estimate a clamp size: measure the hose’s OD (remembering to do it with the hose on the fitting!), then ensure the clamp’s min-max spans that number. A fast way to estimate OD from known hose specs is OD = ID + 2 × wall thickness. For instance, a hose labeled 2″ ID that has 1/4″ thick walls will have about 2.5″ OD (since 2 + 2×0.25 = 2.5). Knowing this, you’d grab a clamp that covers ~2.5″, such as one with range 2″–3″. This prevents guessing. And when in doubt, size up slightly – a clamp that’s a bit too large can still tighten down, but one that’s too small will never fit. With the Ouru clamp assortment on your shelf, you can test-fit a couple of nearby sizes in seconds to find the perfect clamp for any pipe.
Using the above quick tips, you can solve most clamp-sizing questions on the fly. The key takeaways are: always measure or know your hose’s outer diameter, reference clamp ranges or standard sizes, and choose a quality clamp that will withstand your application’s conditions. With experience, you’ll get familiar with common sizes (for example, knowing that a 5/8″ heater hose usually needs about a #10 clamp, or that a 2″ PVC pipe with a rubber coupling might need a 3″ clamp). And with a bit of preparation – like keeping a well-stocked kit of assorted metal pipe clamps – you’ll be ready to secure any connection, big or small. In fact, many professionals keep the Ouru 175-piece hose clamp kit in their garage or toolbox so they’re never caught without the right size clamp for a task!
Measuring hose clamp size may seem like a small detail, but it’s a critical step for ensuring leak-free and safe connections in any piping or tubing system. To recap, always measure the outer diameter (OD) of your hose (with the hose installed on its fitting) as the basis for clamp selection. Remember that hose clamps are specified by their diameter range, and your hose’s OD should fit comfortably within that range – ideally near the midpoint, not at the extremes. Pay attention to band width and clamp type: use narrower-band clamps for small hoses and wide heavy-duty clamps for large or high-pressure hoses, as each is designed to optimize sealing pressure and protect the hose. Whenever possible, choose quality stainless steel clamps (304 or 316 SS) for durability, especially in automotive or marine environments where corrosion can be an issue. By following a straightforward measuring process and understanding the standard sizing conventions (SAE # sizes, etc.), you can quickly identify the perfect hose clamp, pipe clamp, or tubing clamp for your needs.
In short, measure twice, clamp once – taking those few moments to get the size right will pay off with secure hoses and peace of mind. No more drips under your car, no sudden sprays from a loose coolant line, and no struggling with a clamp that’s the wrong size. With this knowledge (and perhaps a handy Ouru Hose Clamp assortment by your side), you’ll tackle any project like a pro, knowing your worm gear clamps and other fasteners are the correct size to keep things tight and safe. Happy clamping! And if you’re ever unsure, Ouru’s customer support and detailed size charts are available to help you find just the right clamp – we’re here to make sure your next job is secured with confidence.
