A modern vehicle’s hose network spans cooling, fuel, oil vapor, vacuum, emissions, turbocharger plumbing, and thermal management. SAE J1508 is useful here because it makes an important point: automotive applications do not rely on one or two clamp styles, but on a broad set of designs suited to different media and operating conditions. In other words, the clamp is part of the engineered joint, not an afterthought. What works on a low-pressure vent line may be the wrong hose clamp for a fuel-injection connection, and what works on a serviceable heater hose may not be ideal on a compact OEM thermal-management assembly.
Cooling and fuel systems also place very different demands on the joint. A representative Gates EPDM coolant hose spec lists a continuous temperature range of about –40°C to +125°C and working pressure around 100 psi for that hose family, while Gates’ heat-shrink PowerGrip SB clamp is rated to +150°C and designed to retain dynamic tension in extreme operating temperatures. Fuel systems create a different problem: Gates’ fuel bulletin notes that general-purpose fuel hose may be rated around 50 psi, while fuel-injection systems may require hose rated up to 100 psi, with low permeation and better chemical resistance. So the correct decision is never just “small clamp or big clamp”; it is clamp design matched to temperature, pressure, fuel chemistry, hose material, and service needs.
That is also why improvisation is expensive. If a technician treats a fuel connection like a generic plumbing repair and reaches for spare hardware meant for water service, the system may seal at first and still be wrong. Likewise, replacing a service spring clamp with a cheap screw clamp can make future maintenance easier while reducing the joint’s ability to compensate for thermal cycling. Good clamp selection protects uptime, reduces repeat leaks, and keeps the hose itself from being cut, extruded, or over-compressed.
The main clamp families in automotive work are spring or constant-tension clamps, worm-gear clamps, fuel-injection clamps, ear clamps, and T-bolt clamps. SAE J1508 exists precisely because these types solve different OEM sealing problems across coolant, fuel, oil, vacuum, and emissions systems.
Spring and constant-tension clamps are the closest thing to an OEM default for many cooling applications. Gates describes its constant-tension range as self-adjusting, with higher spring rates for a dependable seal in automotive, truck, and bus cooling systems and turbochargers. The logic is simple: coolant hose joints expand and contract with temperature, and a dynamic clamp helps maintain radial load as the hose relaxes, hardens, or moves through heat cycles. Gates’ PowerGrip SB clamp follows a similar principle in a different form: it uses heat-shrink thermoplastic to retain dynamic tension and eliminate re-tightening in extreme operating temperatures.

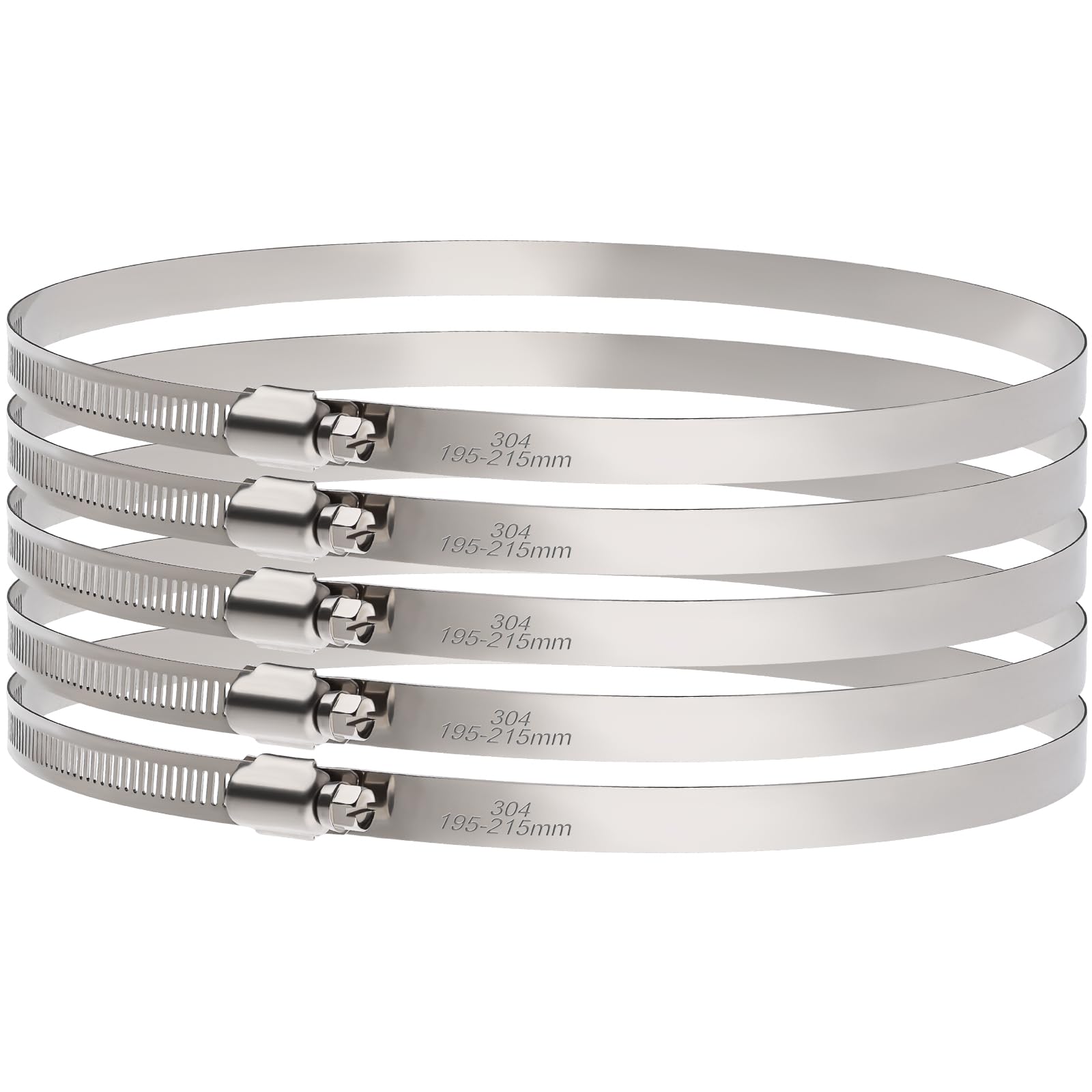

Worm-gear clamps remain the most common all-purpose service clamp because they are adjustable, easy to install, and widely available. Ideal Tridon describes its Hy-Gear stainless design as suitable for common household, industrial, and automotive applications, and its size range runs from small-diameter service into very large diameters. For smaller packaging envelopes, the same company’s Micro-Gear line is aimed at fuel lines, vacuum hoses, and emission control hoses, where slim bands and low-profile housings matter. This is why stainless steel worm gear clamps often dominate aftermarket repair: one family can cover a lot of hose diameters and can usually be removed and reinstalled with ordinary shop tools.
That said, not all worm-gear designs are equal. On soft silicone or thin-walled hose, a perforated band can shear or extrude the hose during tightening. Ideal Tridon’s non-perforated embossed clamps and lined clamps are built specifically to prevent that problem; both are intended to protect the hose surface during installation and final torque. This matters in automotive work on charge-air couplers, silicone heater hoses, and some custom cooling or intake assemblies where a standard slotted band is simply too aggressive.
Fuel-injection clamps deserve to be treated as their own category, not as a variation of generic worm-drive hardware. Gates and Ideal Tridon both describe EFI clamps as using a solid band with rolled edges and a nut-and-bolt design to deliver the uniform sealing pressure required on fuel-injection hoses. Gates also notes that these clamps are intended for small-diameter hose sizes commonly used on fuel systems, roughly 1/4" through 3/8" I.D. If the job is electronic fuel injection rather than a low-pressure vent or vapor line, this is usually where the decision should start.
Ear clamps are common where packaging is tight, assembly speed matters, and the designer wants compact, 360-degree compression. Oetiker’s stepless and ear-clamp families emphasize circumferentially uniform pressure, tolerance compensation, compact one-piece construction, and visible closure during installation. Oetiker also positions these solutions across passenger-vehicle powertrain, thermal management, and aftermarket fluid-line uses, which is why ear clamps show up so often on OEM-style small-diameter fluid systems. They are especially attractive where a bulkier screw housing would interfere with adjacent parts.
T-bolt clamps are the heavy-duty option. Gates describes heavy-duty T-bolt clamps as built for large-diameter connections and high-vibration environments, primarily on truck, off-road, and industrial equipment. In passenger-car work, that same logic applies to turbocharger plumbing, intercooler couplers, and large air-intake or charged-air connections where a standard air intake hose clamp may not provide enough uniform clamping force. If the joint is large, under boost, or constantly moving, a T-bolt design is often the safer choice.
The best clamp in one system is often the wrong one in another. For a technician or buyer, the practical question is not which style is “best” in general, but which tradeoff matches the joint you are building.
If serviceability is the priority, worm-gear clamps are hard to beat. They are easy to loosen, reposition, and reuse, and quality stainless versions cover everything from mini hose clamps on vacuum and breather lines to larger service joints on radiator or intake hoses. Their downside is that they do not inherently compensate for thermal movement the way spring or constant-tension clamps do, so they rely more heavily on correct sizing, good band design, and proper installation. By contrast, constant-tension designs are excellent on heat-cycling cooling hoses but are not always as convenient to service in tight engine bays.
If hose protection is the priority, clamp geometry matters as much as clamp category. Non-perforated or lined worm-gear clamps are better for silicone, soft elastomer, or thin-wall hose because they reduce shearing and extrusion through band notches. EFI clamps go a step further for fuel hoses, where rolled edges and a solid band help create more uniform compression. That is why a generic slotted band may be acceptable on some coolant service joints, but less desirable on soft custom hose assemblies and usually the wrong answer for high-pressure fuel injection.
If compact packaging is the priority, ear clamps make a strong case. Oetiker’s ear-clamp families emphasize compact one-piece construction, visual confirmation of closure, and 360-degree sealing behavior, all of which help in crowded OEM layouts. The tradeoff is service convenience: these connections typically require proper pincer-style tools and are less friendly to repeated adjustment than a screw clamp. That makes them a strong OEM-style choice for tight, stable connections, but not always the first choice for field service where repeated removal is likely.
If the joint is large, highly loaded, or exposed to vibration, T-bolt clamps move ahead. Their heavier construction and nut-and-bolt tightening method are better suited to large couplers and boosted plumbing than ordinary service clamps. The tradeoff is bulk, cost, and the fact that they are unnecessary overkill on many small liquid lines. On a 1/4-inch fuel hose they are absurd; on a big turbo coupler they can be exactly right.
If you are comparing clamp materials, connector sizes, or repair hardware for a specific application, Ouru’s product range can help you match the right solution to the job.
Cooling systems reward clamps that can tolerate heat cycling without losing sealing force. SAE J20 covers reinforced and flexible hoses for water and ethylene-glycol-based engine-coolant systems, and representative coolant-hose data from Gates shows how demanding the environment can be: high temperature exposure, pressure, ozone, and chemical coolants all work the joint over time. For that reason, constant-tension clamps and dynamic-tension thermoplastic designs make strong sense on radiator, heater, and crossover hoses, while quality stainless worm-gear clamps remain a practical service solution when they are correctly sized and compatible with the hose material. Gates also explicitly recommends replacing hose clamps when a new coolant hose is installed, which is smart preventive practice on any critical cooling repair.
Installation details matter just as much as clamp choice. Gates’ PowerGrip SB installation guide gives advice that applies broadly to automotive cooling joints: the clamp should sit over the fitting bead, should not extend past the peak of the fitting head, and should not cover unsupported hose beyond the fitting. The same guide recommends checking the finished joint by trying to rotate the hose; with reasonable torque, the hose and clamp should not turn. These are the kinds of small practices that separate a clean cooling-system repair from a comeback leak.
Fuel systems are less forgiving. SAE J30 covers fuel and oil hose for gasoline, diesel, oil, and fuel-system vapor applications, and Gates’ fuel bulletin makes the pressure point very clear: general-purpose fuel hose may be rated around 50 psi, while fuel-injection service can require up to 100 psi, with far stricter demands on hose compatibility and permeation. That is why fuel-line clamp choice should begin with the system design. On EFI hoses, use a real fuel-injection clamp with a solid band and rolled edges. On compact OEM-style hard-line transitions or small thermal-management branches, ear-clamp solutions may be appropriate where packaging and assembly method support them. What you should not do is approach a fuel repair with generic plumbing hose clamps or water pipe clamps simply because they happen to fit.
A simple decision framework works well in practice. If the joint is in the cooling system and sees major temperature cycling, start with spring, constant-tension, or other dynamic-tension designs. If the joint must be serviced often, a quality worm-drive clamp may be more practical. If the hose is soft silicone, choose a lined or non-perforated band. If the line is EFI fuel, move to a dedicated fuel-injection clamp. If the hose is large and heavily loaded—such as an intercooler, charge-air, or large intake connection—consider a T-bolt design rather than a standard service clamp. That is also where larger service sizes, including the kind of application that might call for a 3 inch hose clamp or a 4 inch hose clamp, start to fall outside the comfort zone of light-duty hardware.
The safest way to choose an automotive clamp is to think in systems, not in parts bins. First, match the clamp to the hose standard and media: SAE J20 cooling hose is not SAE J30 fuel hose. Second, match clamp behavior to operating conditions: thermal cycling favors constant-tension designs, while service access often favors worm-drive hardware. Third, protect the hose itself: soft silicone and EFI hose connections benefit from non-perforated, lined, or dedicated fuel-injection designs. Fourth, scale the clamp to the load: compact OEM ear clamps and mini service clamps belong on very different joints than heavy-duty T-bolts.
In short, the right hose clamp reduces leaks, protects hose life, prevents repeat labor, and improves safety—especially where fuel or hot coolant is involved. Explore Ouru’s full range of hardware solutions or contact the team to find the right clamp, connector, or repair part for your next project.
